Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed for efficient heating and cooling in multi-zone systems. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, providing up to 60,000 BTU of cooling capacity. Paired with six MSZ-FX09NL and two MSZ-FX12NL wall-mounted air handlers, this setup ensures optimal comfort across various indoor spaces. The included PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow management, while the MSDD-50AR2-E branch pipe kit ensures balanced distribution. Together, these products create a versatile and effective climate control solution for both residential and commercial applications.

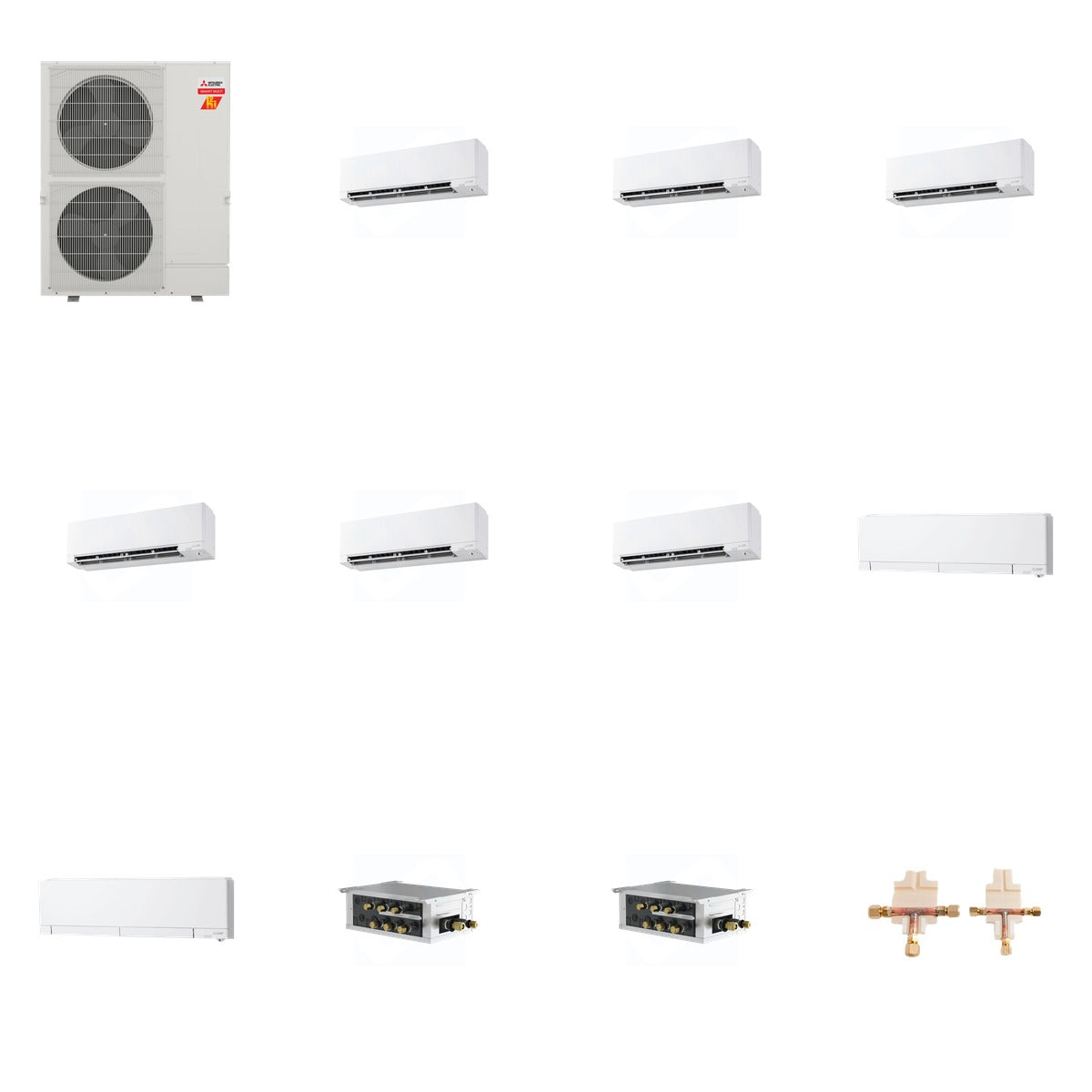

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 531.3 lb (Mitsubishi 225 lb + Mitsubishi 218.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 8 Zones Supported
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts
• Wall Mounted Units: 9,000 BTU (MSZ-FX09NL), 12,000 BTU (MSZ-FX12NL)
• Sound Level: As low as 20 dB (MSZ-FX09NL)
• Material: Oxygen-Free Copper (MSDD-50AR2-E)

Use & Compatibility

This bundle is ideal for residential and commercial HVAC applications, providing efficient heating and cooling solutions. The outdoor unit is compatible with multiple indoor units, allowing for customized climate control in various zones. The branch boxes and distribution kit ensure effective refrigerant management, making this setup perfect for both new installations and system upgrades.
