Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+9K+9K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to create an efficient multi-zone heating and cooling system. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized comfort across various spaces. Complementing this are the MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers, which provide precise temperature control and advanced filtration for improved air quality. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, ensuring balanced performance across all connected units. Lastly, the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency while maintaining system integrity. Together, these components create a reliable and effective climate control solution for both residential and commercial applications.

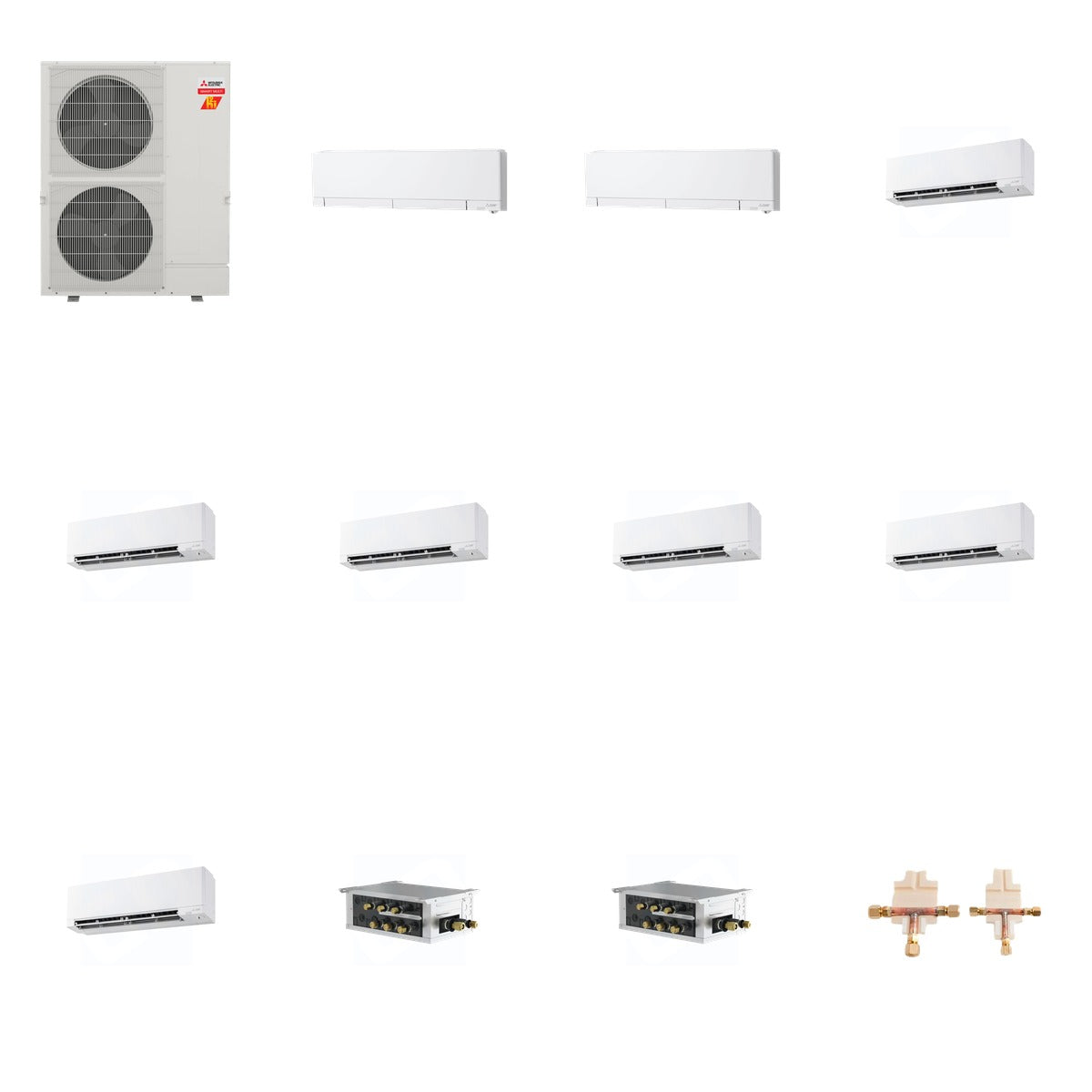

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x6)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 516.5 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 218.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 6,000 BTU (MSZ-FX06NL), 9,000 BTU (MSZ-FX09NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 9,000 BTU (MSZ-FX06NL), 12,000 BTU (MSZ-FX09NL)
• SEER2: Up to 23 (MXZ-SM60NL), Up to 35 (MSZ-FX06NL), HSPF2: Up to 13.3 (MSZ-FX06NL)
• Voltage: 208/230 Volts (all units)
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL), 39.27 x 9.75 x 12 inches (both MSZ-FX units)
• Material: Oxygen-Free Copper (MSDD-50AR2-E), High-grade insulation (for all units)

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, suitable for both residential and commercial applications. The outdoor unit connects seamlessly with the included wall-mounted air handlers, providing efficient heating and cooling tailored to individual room requirements. The branch boxes and distribution kit ensure optimal refrigerant flow and temperature control, making this bundle a comprehensive solution for any climate control needs.
