Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+9K+18K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, providing up to 60,000 BTU of cooling and heating capacity. Paired with five wall-mounted air handlers (two MSZ-FX06NL, one MSZ-FX09NL, and one MSZ-FX18NL), this setup ensures optimal climate control across various spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant flow to multiple indoor units, while the MSDD-50AR2-E distribution kit enhances performance and installation efficiency. Together, these components deliver a reliable, energy-efficient solution for both residential and commercial applications.

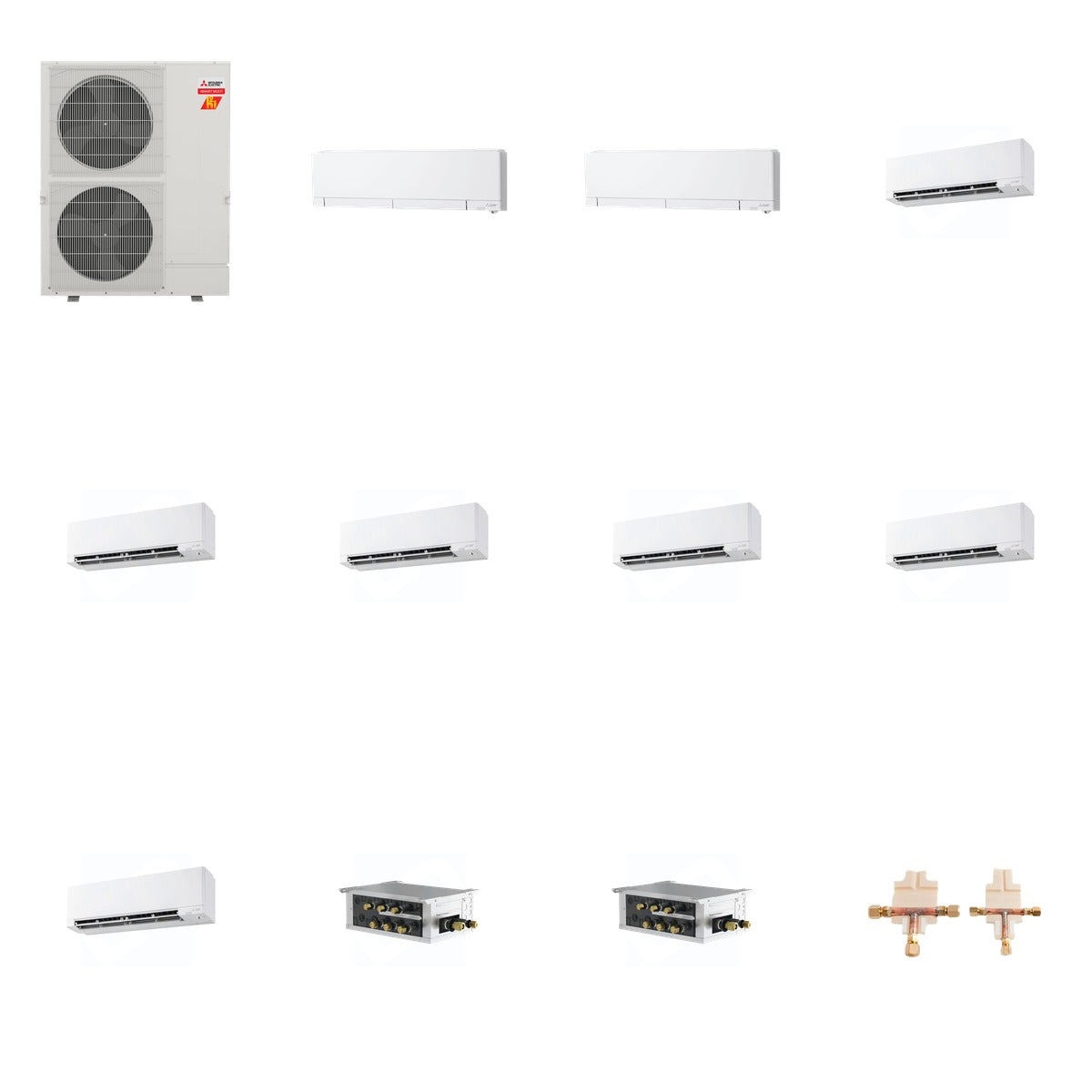

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 516.5 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 182 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU
• Heating Capacity: Up to 66,000 BTU
• SEER2: Up to 35
• Voltage: 208/230 Volts
• Number of Zones: Up to 8
• Sound Level: As low as 20 dB(A)
• Refrigerant Type: R-454B
• Dimensions (Outdoor Unit): 41-11/32" W x 13" D x 52-11/16" H
• Dimensions (Wall Mounted Units): 39.27" W x 9.75" D x 12" H

Use & Compatibility

This bundle is designed for residential and commercial HVAC systems, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various indoor units, allowing for flexible installation in diverse settings. Ideal for both new installations and system upgrades, the components work seamlessly together to ensure optimal performance and comfort.
