Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle includes essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the backbone, providing robust performance with a capacity of 60,000 BTU. Paired with four wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL), this setup offers flexible temperature control across various zones. The bundle also includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant distribution, ensuring that each indoor unit operates at peak efficiency. Together, these components deliver a reliable, energy-efficient solution for both residential and commercial applications.

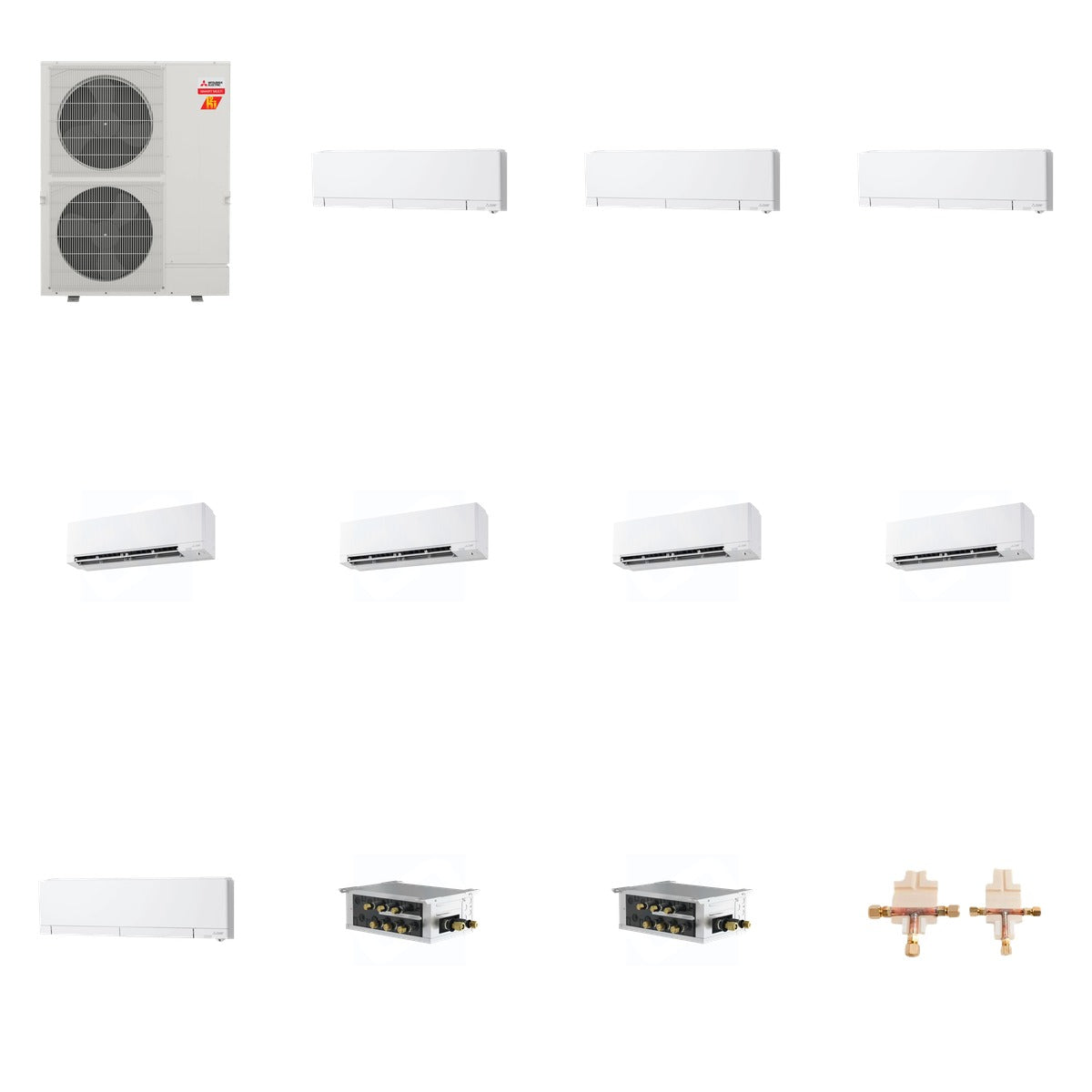

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 509.1 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, 5-ton inverter condenser, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V, 20-42 dB(A)
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V, 20-44 dB(A)
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, 208/230V, 20-44 dB(A)
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in both residential and commercial settings, providing efficient heating and cooling through a multi-zone system. The outdoor unit is compatible with various indoor units, allowing for customized comfort across different spaces. The branch boxes facilitate optimal refrigerant flow, ensuring that all connected air handlers operate effectively.
