Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+12K+12K+12K+15K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric HVAC components designed for efficient heating and cooling in both residential and commercial settings. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this are the MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers, each offering advanced filtration, quiet operation, and smart technology integration. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures a reliable and efficient connection. Together, these components create a versatile and effective multi-zone system that enhances comfort and energy efficiency.

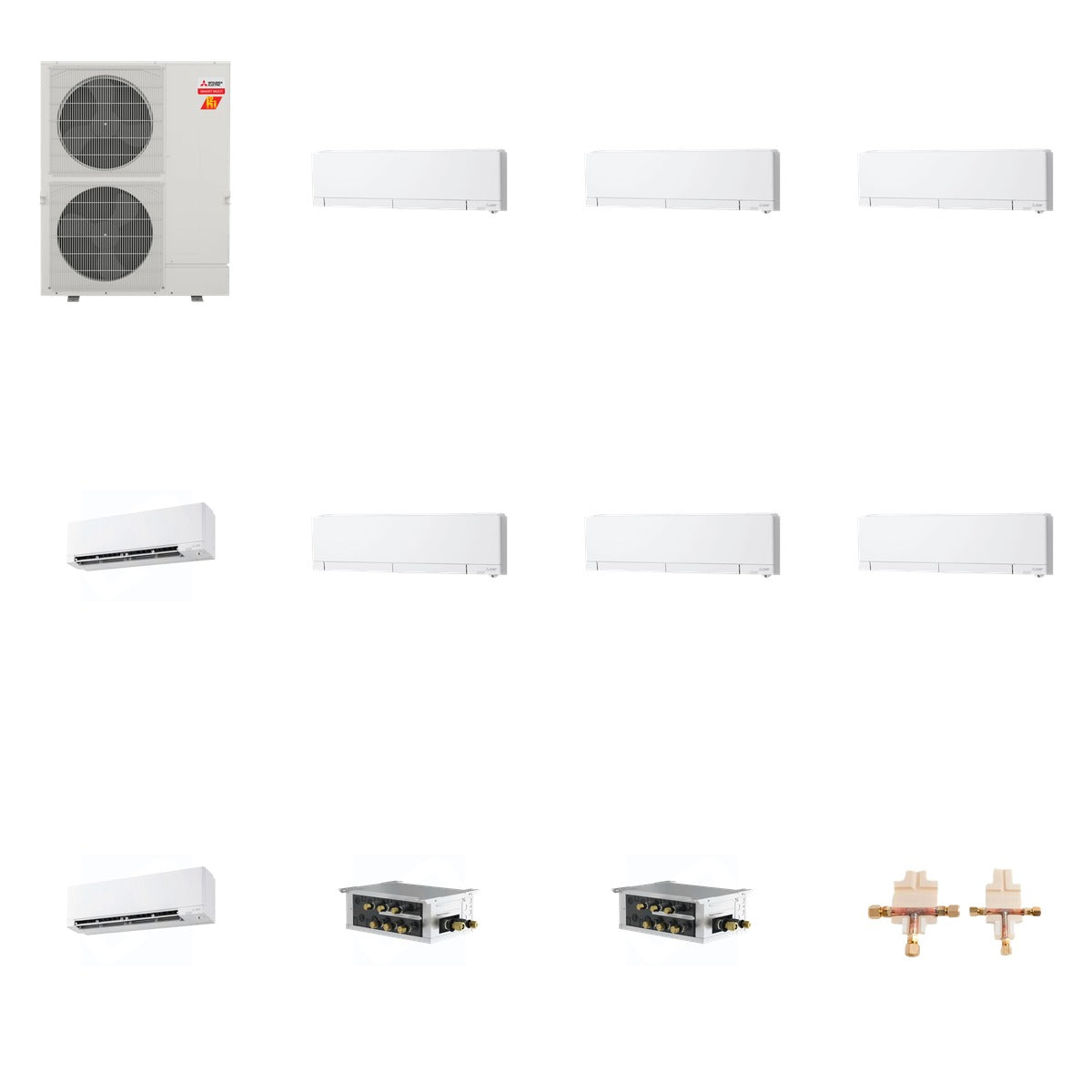

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 509.1 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 36.4 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, 5-ton, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, allowing for efficient heating and cooling across various spaces. The outdoor unit is compatible with multiple indoor units, making it suitable for both residential and commercial applications. The branch boxes and distribution kit ensure balanced refrigerant flow, enhancing system performance and comfort.
