Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K+18K+18K

Description

This comprehensive HVAC bundle is designed for optimal heating and cooling efficiency in both residential and commercial settings. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package allows for versatile climate control across multiple zones. Paired with five wall-mounted air handlers (MSZ-FX06NL, MSZ-FX12NL, MSZ-FX18NL), this system ensures tailored comfort in various spaces. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates efficient refrigerant management, while the MSDD-50AR2-E distribution kit guarantees balanced performance. Together, these components create a powerful and adaptable HVAC solution that meets diverse heating and cooling needs.

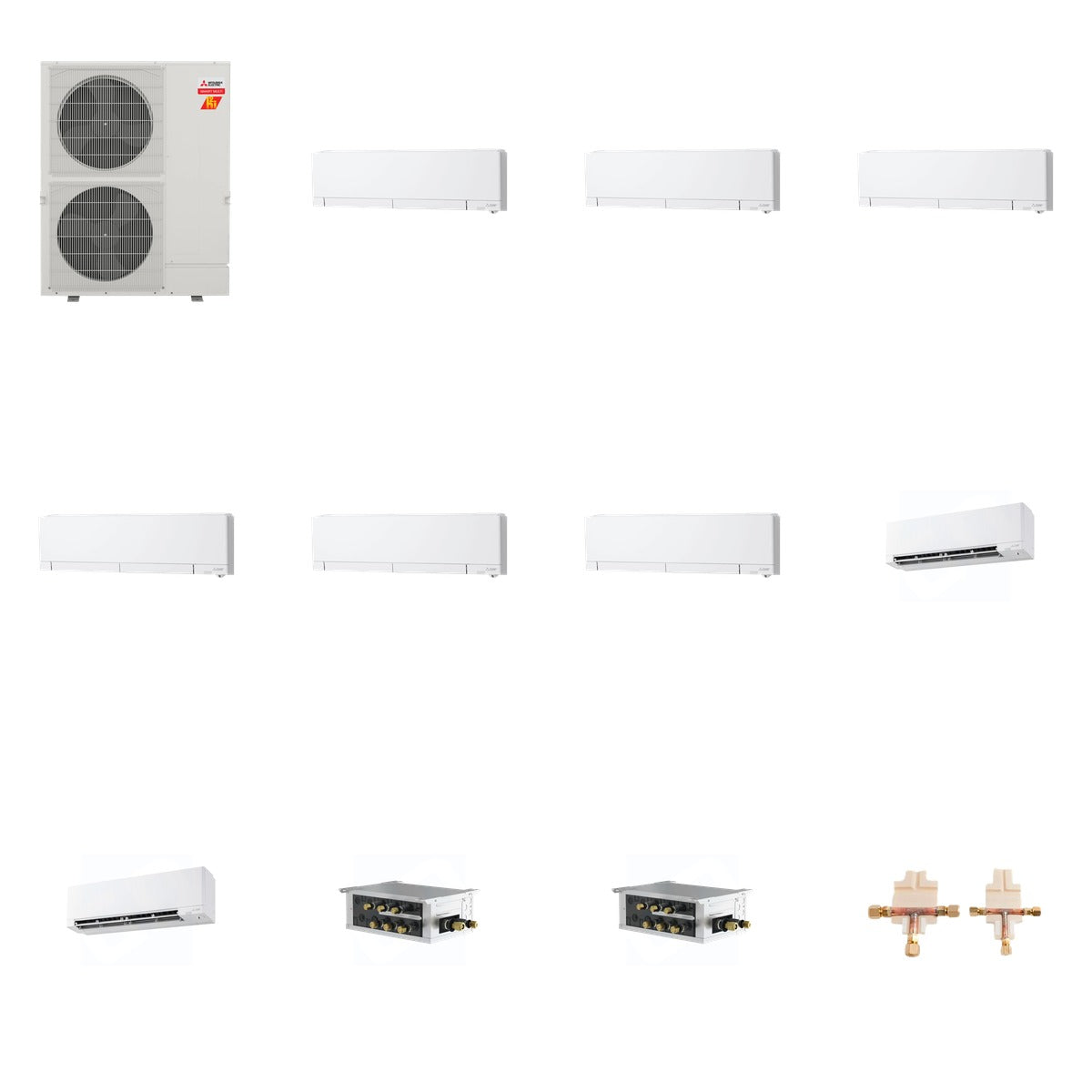

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 494.3 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU/h (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU/h (MXZ-SM60NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230V
• Material: Copper (MSDD-50AR2-E)
• Sound Level: As low as 20 dB (MSZ-FX06NL)
• Dimensions: Varies by unit, e.g., MXZ-SM60NL - 41-11/32 in W x 13 in D x 52-11/16 in H

Use & Compatibility

This HVAC bundle is ideal for multi-zone applications, providing efficient heating and cooling for various indoor environments. The outdoor unit (MXZ-SM60NL) is compatible with multiple indoor units (MSZ-FX series), allowing for customized climate control. The branch boxes and distribution kit enhance refrigerant management, ensuring optimal performance across all connected systems.
