Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package includes multiple indoor units and essential accessories to create a versatile and effective climate control system. The combination of the SLZ-AF09NL and SLZ-AF15NL ceiling cassette units allows for customizable airflow and temperature management, while the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution. The MSDD-50AR2-E branch pipe distribution kit enhances performance by maintaining balanced refrigerant flow, making this bundle a complete solution for modern HVAC needs.

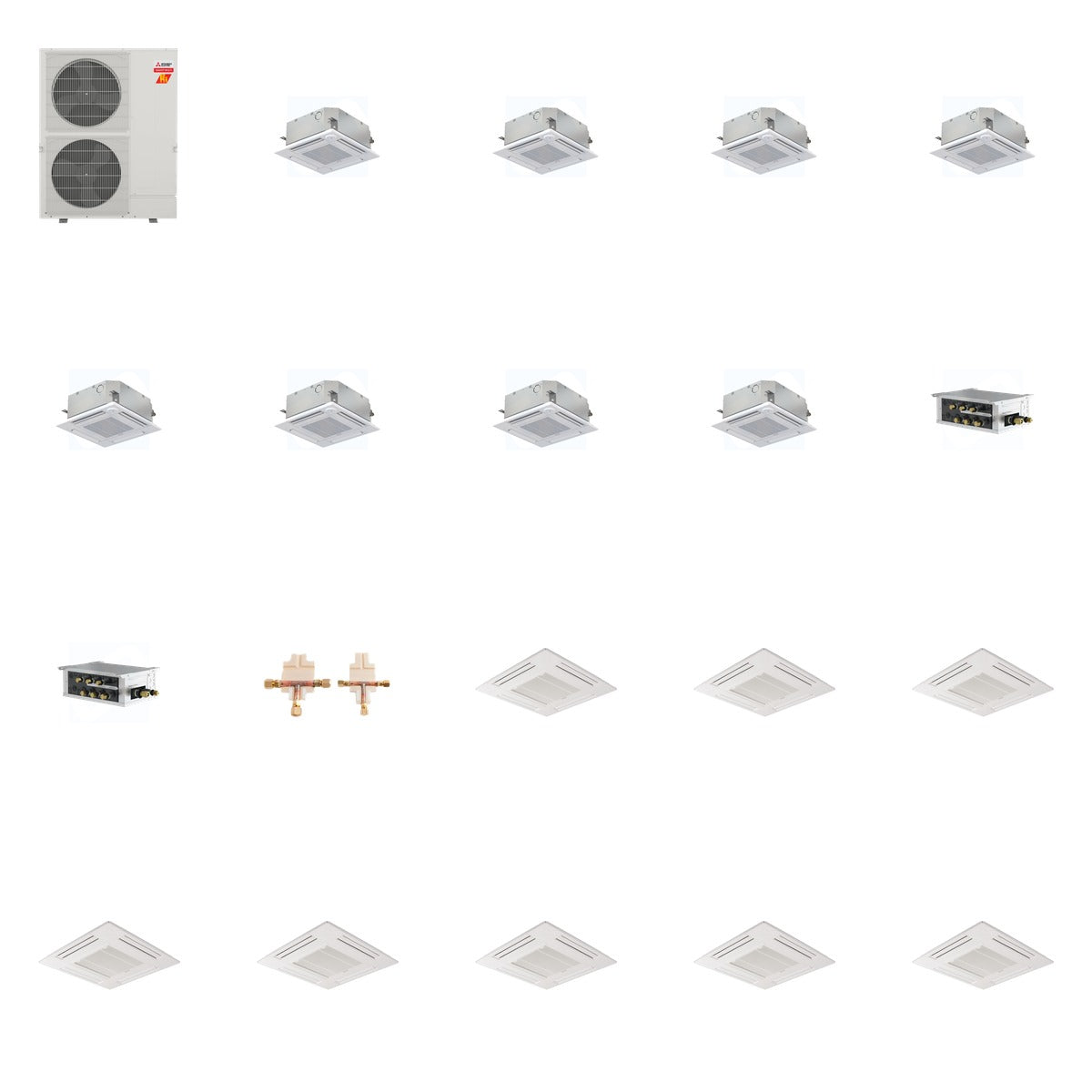

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x7)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x8)

Key Details

• Weight of Bundle: 560.1 lb (Mitsubishi 225 lb + Mitsubishi 231 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 56 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• SLZ-AF09NL: 9,000 BTU Cooling, 12,000 BTU Heating, Voltage: 208/230V
• SLZ-AF15NL: 15,000 BTU Cooling, 18,000 BTU Heating, Voltage: 208/230V
• PAC-LMA50BC: 5 Ports, Voltage: 208/230V
• PAC-LMA30BC: 3 Ports, Voltage: 208/230V
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone HVAC installations, providing efficient heating and cooling for various indoor environments. The included outdoor unit is compatible with multiple indoor units, allowing for flexible configurations. The branch boxes and distribution kit facilitate seamless refrigerant management, ensuring optimal performance across all connected units.
