Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K+9K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering up to 60,000 BTUs of cooling and 66,000 BTUs of heating capacity. Paired with the SLZ-AF09NL and SLZ-AF12NL indoor units, this setup offers flexible installation options and customizable airflow for optimal comfort. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance. Completing the package, the SLP-18FAU grille provides seamless air distribution, making this bundle perfect for both residential and commercial applications.

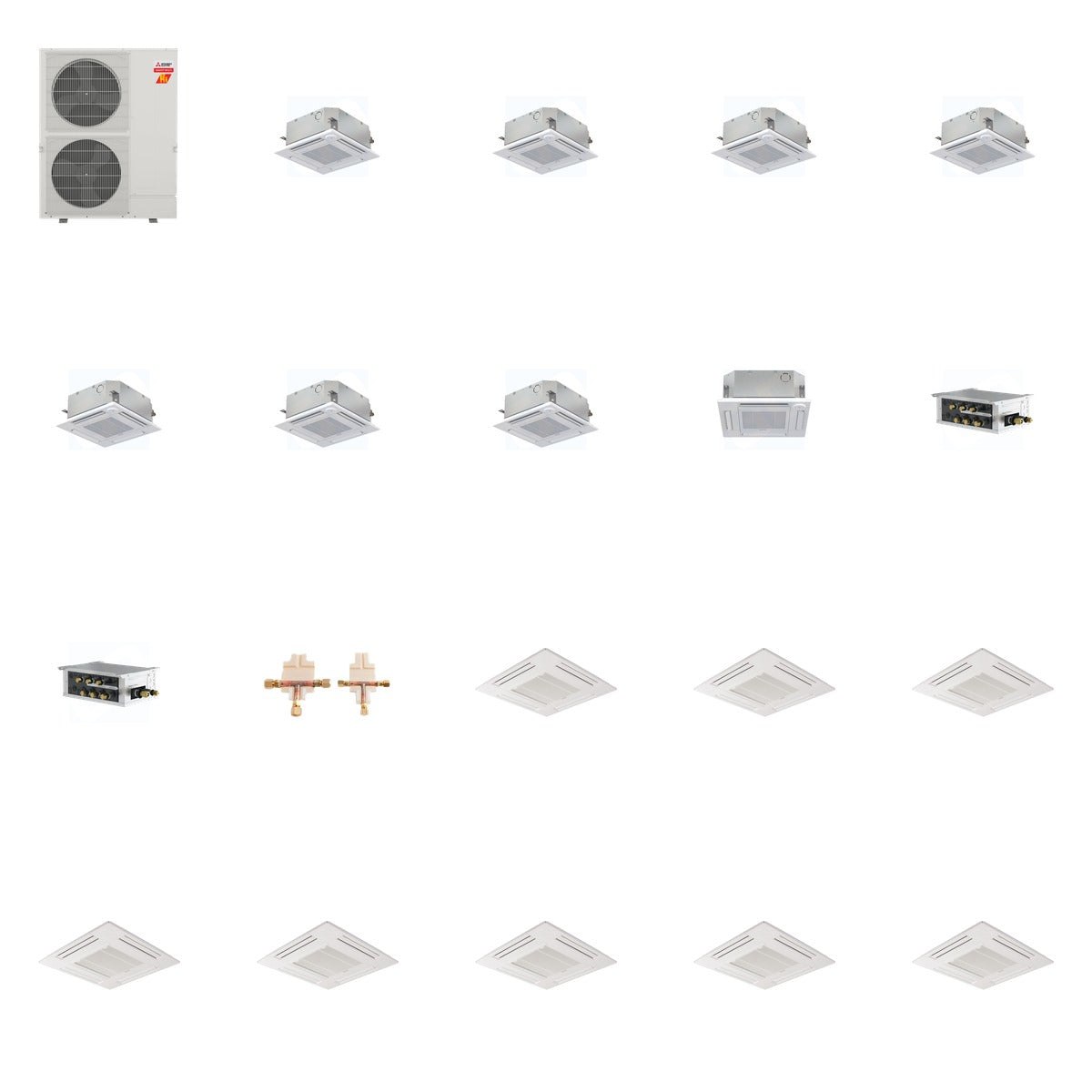

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x7)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x8)

Key Details

• Weight of Bundle: 560.1 lb (Mitsubishi 225 lb + Mitsubishi 231 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 56 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Cooling BTU: 9,000 (SLZ-AF09NL), 12,000 (SLZ-AF12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Sound Level: As low as 25 dB(A) (SLZ-AF09NL)
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL)
• Weight: 31 lbs (SLZ-AF09NL)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, ideal for both residential and commercial environments. The outdoor unit connects seamlessly with various indoor units, providing efficient heating and cooling solutions. The included branch boxes and distribution kit ensure optimal refrigerant flow, making it compatible with Mitsubishi Electric's M-Series and CITY MULTI systems.
