Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering robust performance with a 60,000 BTU capacity. Paired with the MLZ-KX09NL and MLZ-KX12NL ceiling cassette indoor units, this setup allows for versatile installation options in various environments. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow to multiple indoor units, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant distribution. Completing the bundle, the MLP-449WU grille enhances air distribution for a comfortable indoor climate.

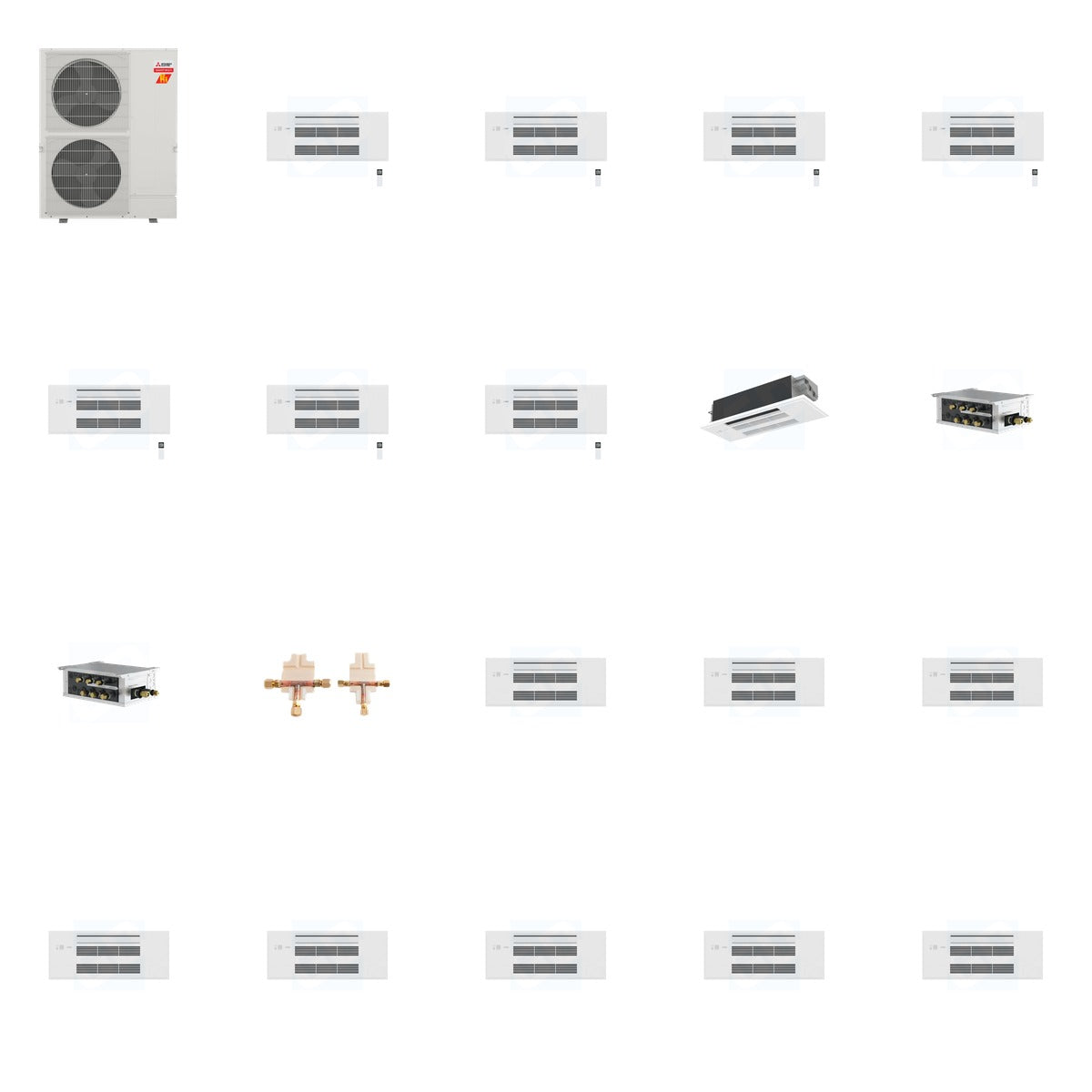

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x7)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x8)

Key Details

• Weight of Bundle: 377.4 lb (Mitsubishi 225 lb + Mitsubishi 23.3 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 80 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 9,000 BTU (MLZ-KX09NL), 12,000 BTU (MLZ-KX12NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (All units)
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL)
• Noise Level: As low as 26 dB(A) (MLZ-KX12NL)
• Material: Copper (MSDD-50AR2-E)

Use & Compatibility

This bundle is designed for both residential and commercial HVAC applications, providing efficient heating and cooling solutions across multiple zones. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring seamless integration and optimal performance.
