Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+12K+18K

Description

This comprehensive HVAC bundle is designed for those looking to enhance their indoor climate control with a multi-zone system. Featuring a powerful Mitsubishi Electric MXZ-SM60NL outdoor heat pump, this package includes multiple one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL, and MLZ-KX18NL) that provide efficient heating and cooling for various room sizes. The addition of branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures optimal performance across all connected units. This bundle is perfect for both residential and commercial applications, offering flexibility and energy efficiency.

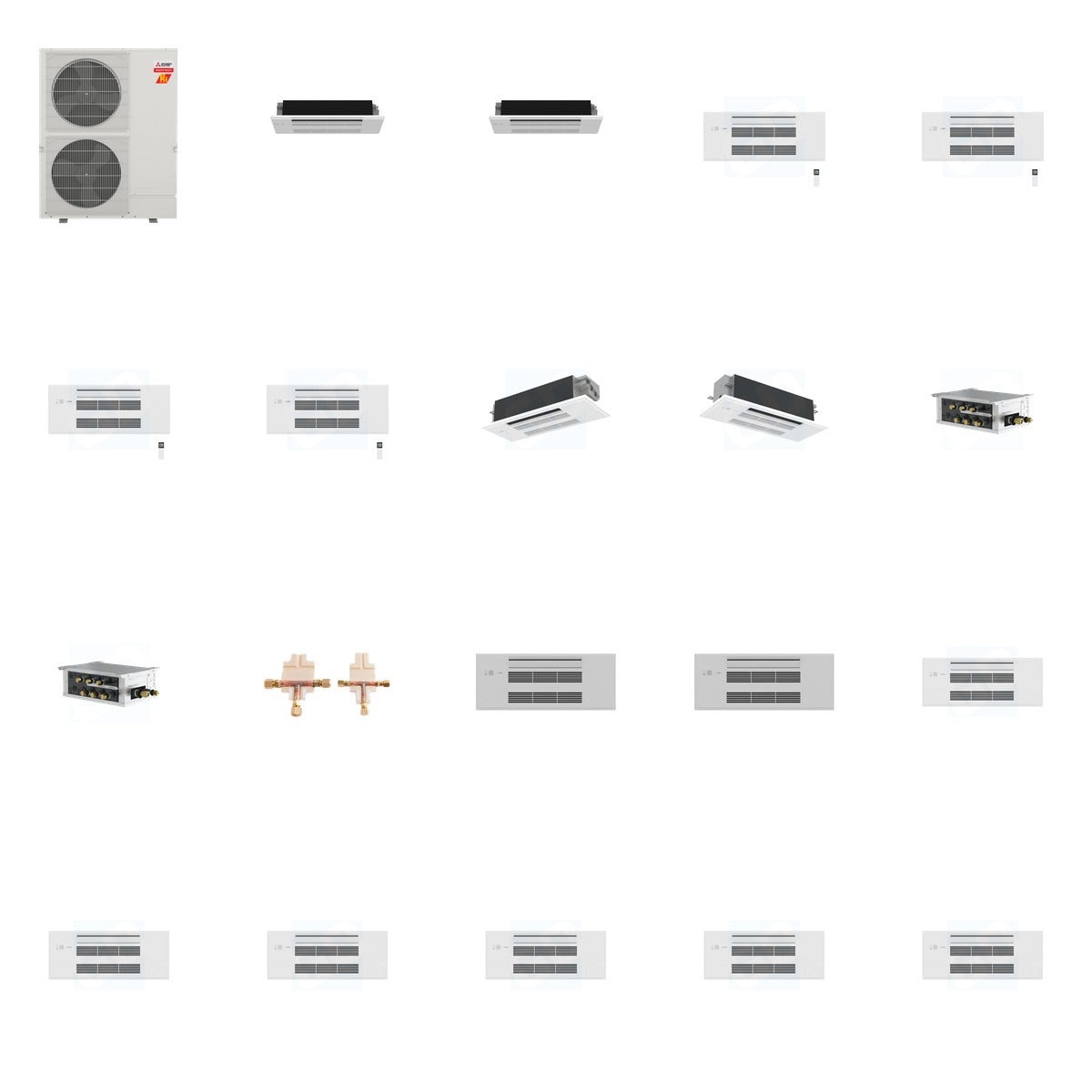

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 432.8 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 13.3 lb + Mitsubishi 34 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX06NL: 6,000 BTU, suitable for up to 200 sq ft, 208/230V
• MLZ-KX09NL: 9,000 BTU, suitable for up to 350 sq ft, 208/230V
• MLZ-KX12NL: 12,000 BTU, 208/230V, includes antibacterial filter
• MLZ-KX18NL: 18,000 BTU, maximum airflow 417 CFM, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs for refrigerant flow
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: Grille dimensions 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Grille dimensions 16.5 x 38.5 x 4.25 inches

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ceiling cassettes are designed for installation between standard ceiling joists. The included branch boxes and distribution kit ensure optimal refrigerant management, making this package ideal for both residential and commercial applications.
