Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+9K+12K+12K+12K

Description

This comprehensive HVAC bundle includes essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, capable of supporting multiple indoor units. Paired with a selection of one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL), this bundle ensures optimal comfort across various room sizes. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit guarantees balanced performance. With grilles designed for both the MLZ-KY and MLZ series, this bundle is tailored for maximum efficiency and air circulation, making it perfect for both residential and commercial applications.

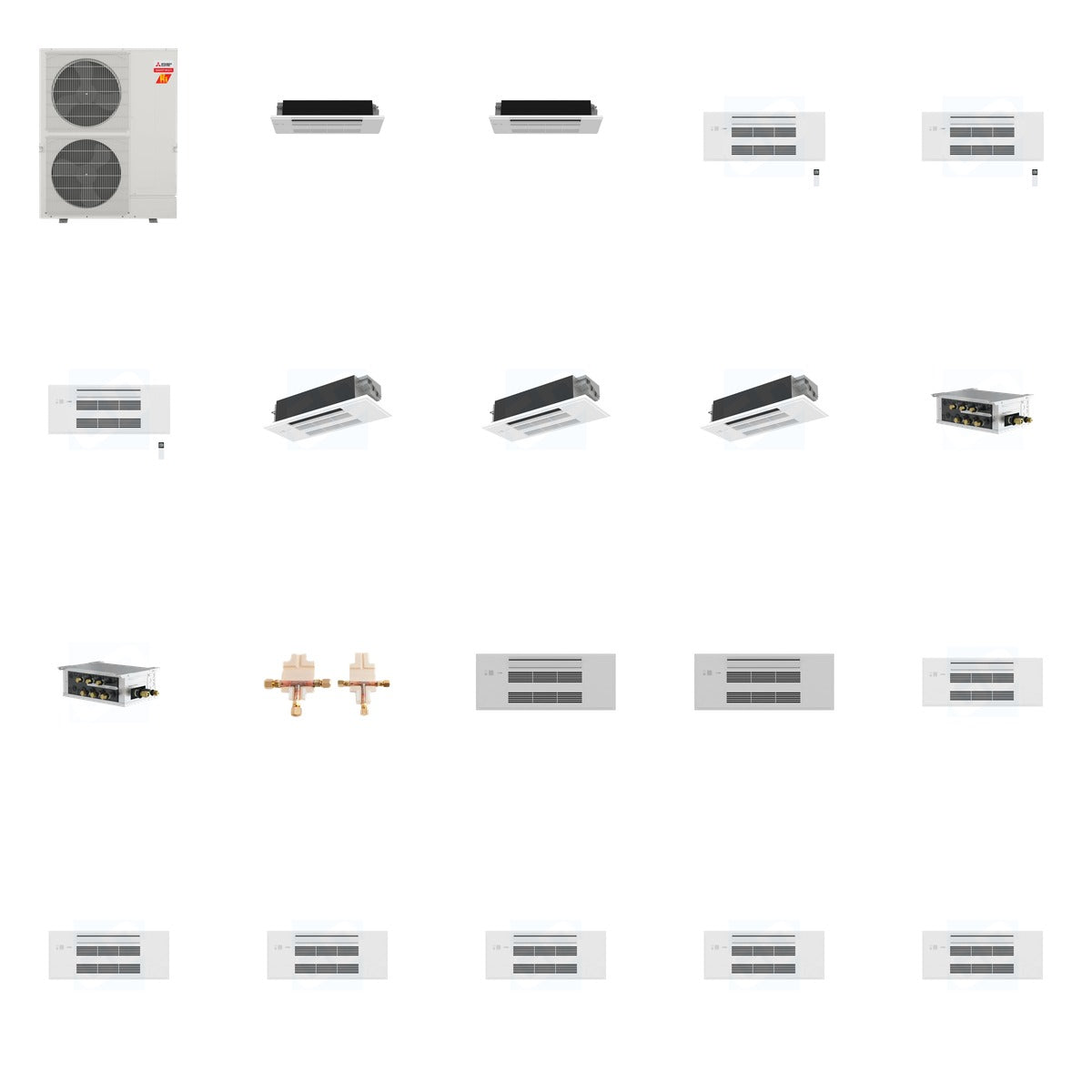

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 494.1 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 10.0 lb + Mitsubishi 102 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MLZ-KX06NL: 6,000 BTU, suitable for up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU, suitable for up to 350 sq ft
• MLZ-KX12NL: 12,000 BTU, suitable for larger spaces
• PAC-LMA50BC: 5 ports, compatible with MXZ model
• PAC-LMA30BC: 3 ports, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper construction
• Grilles: Designed for durability, optimized for airflow

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, ideal for both residential and commercial applications. The outdoor unit connects seamlessly with various indoor units, providing customized heating and cooling solutions. The branch boxes and distribution kits ensure efficient refrigerant management, making this bundle a complete solution for effective climate control.
