Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring a powerful Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle allows for customized climate control by connecting multiple indoor units. The included one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL) offer versatile installation options and are equipped with advanced features like Wi-Fi connectivity and adjustable airflow. To ensure optimal refrigerant distribution, the bundle also includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a branch pipe distribution kit (MSDD-50AR2-E). Completing the setup are grilles (MLP-448WU and MLP-449WU) that enhance airflow efficiency, making this bundle a perfect choice for anyone looking to upgrade their HVAC system.

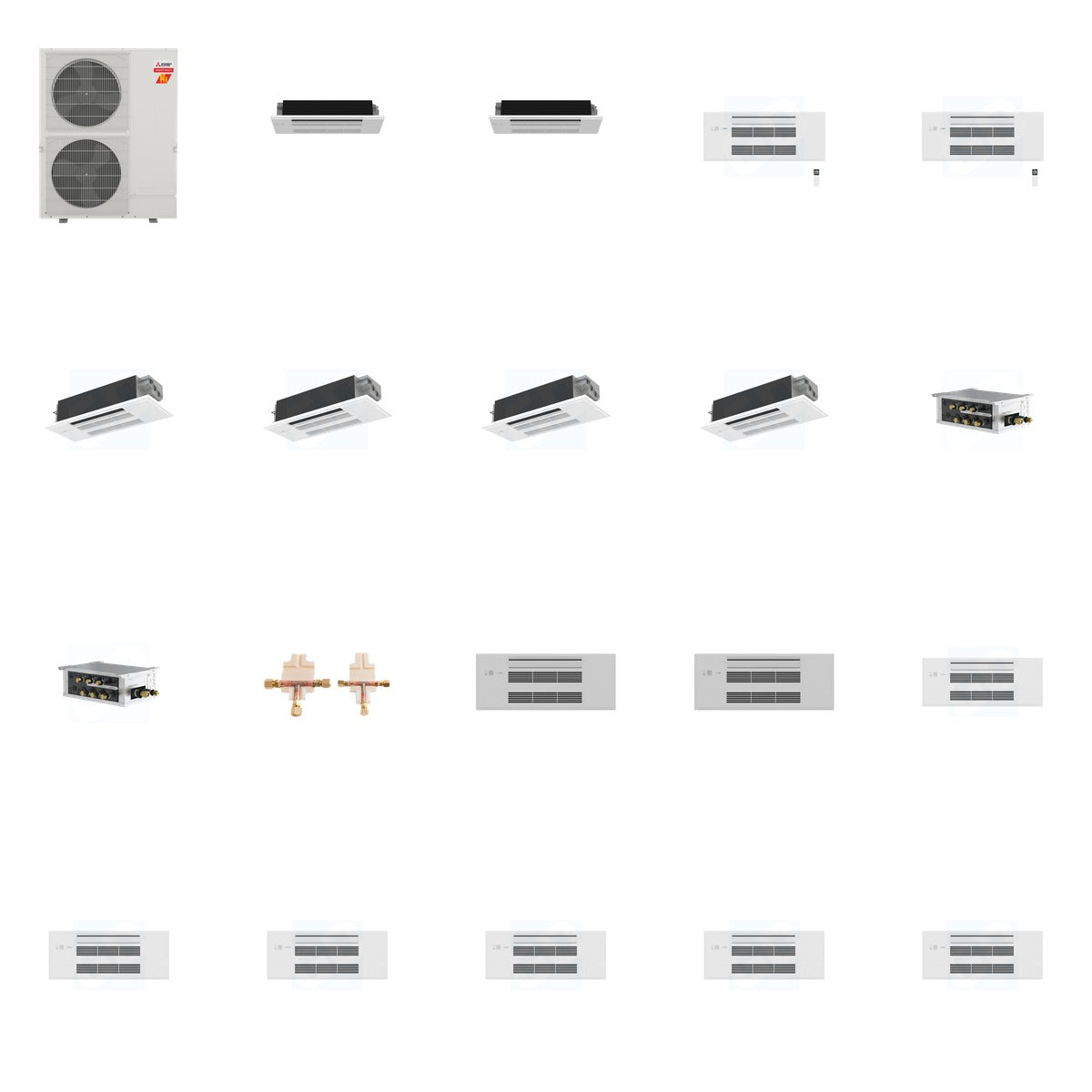

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 524.8 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 6.7 lb + Mitsubishi 136 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MLZ-KX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, suitable for up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, suitable for up to 350 sq ft
• MLZ-KX12NL: 12,000 BTU Cooling, 15,400 BTU Heating
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• Grilles: MLP-448WU dimensions 16.5" x 38.5" x 4.25", MLP-449WU for ceiling cassettes

Use & Compatibility

This bundle is ideal for multi-zone HVAC applications, providing both heating and cooling capabilities. The outdoor unit is compatible with various indoor units, making it suitable for diverse residential and commercial settings. The included branch boxes and distribution kit ensure efficient refrigerant flow, while the grilles optimize air distribution, enhancing overall system performance.
