Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+9K+18K

Description

This comprehensive HVAC bundle features an array of Mitsubishi Electric products designed for efficient heating and cooling in multi-zone systems. The centerpiece is the MXZ-SM60NL outdoor heat pump, delivering robust performance with a capacity of 60,000 BTU. Complementing this unit are multiple MLZ-KX ceiling cassette indoor units, available in 6k, 9k, and 18k BTU capacities, ensuring optimal comfort across various room sizes. The bundle also includes essential branch boxes for refrigerant flow management, along with grilles for enhanced air distribution, making it a complete solution for both residential and commercial applications.

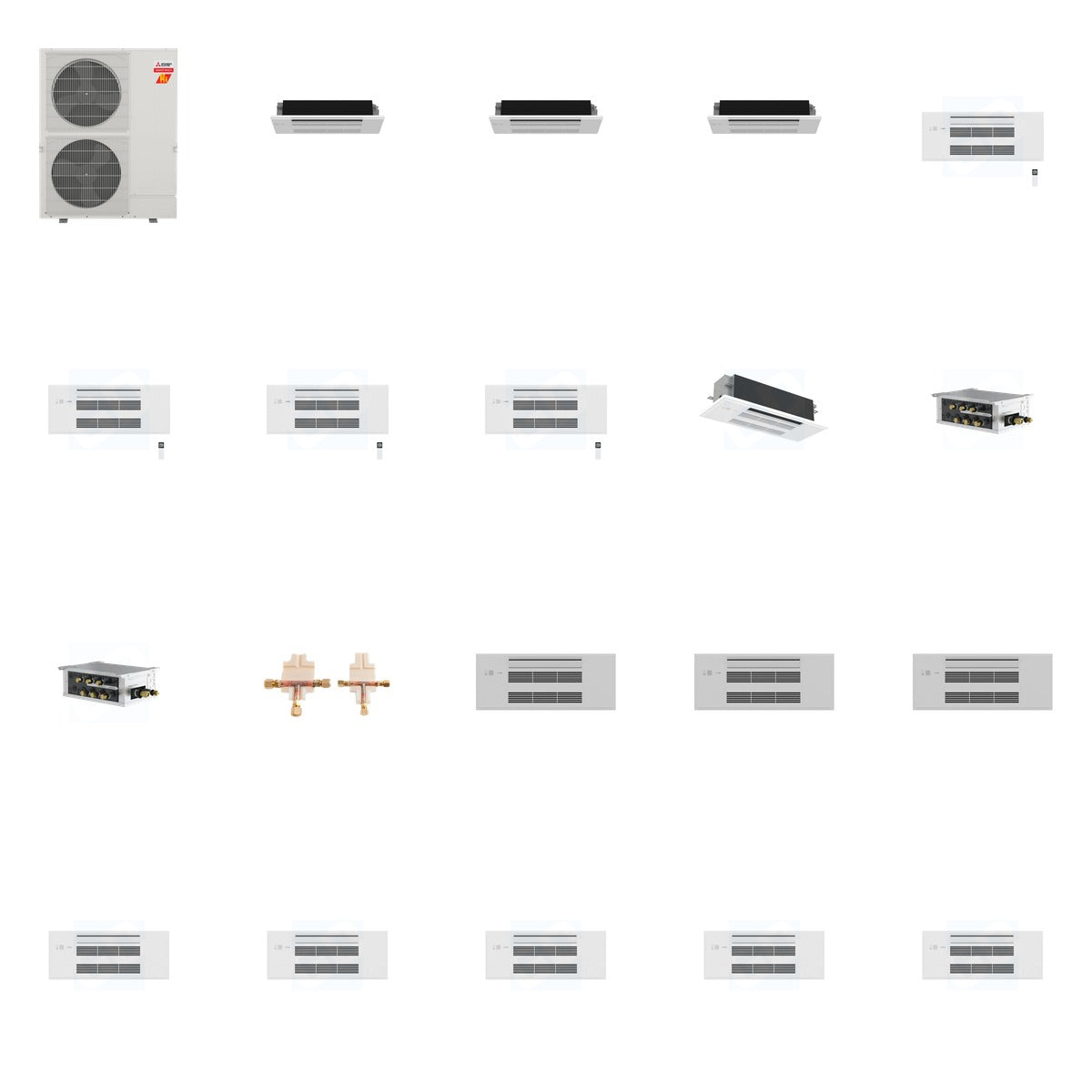

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 429.8 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 13.3 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 50 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX06NL: 6,000 BTU, up to 200 sq ft, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, up to 350 sq ft, Wi-Fi enabled
• MLZ-KX18NL: 18,000 BTU, maximum airflow 417 CFM, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230V
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B
• MLP-448WU: Grille dimensions 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Grille dimensions for ceiling cassette applications

Use & Compatibility

This bundle is ideal for residential and commercial HVAC systems requiring efficient heating and cooling. The outdoor unit is compatible with multiple indoor units, allowing for customized climate control across various zones. The included branch boxes and distribution kits ensure optimal refrigerant flow, making it suitable for both new installations and upgrades to existing systems.
