Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle includes everything you need for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized comfort. Complementing this are the MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL ceiling cassette units, which provide versatile heating and cooling options for various room sizes. The bundle also features essential accessories like the PAC-LMA50BC and PAC-LMA30BC branch boxes for optimal refrigerant distribution, along with the MSDD-50AR2-E branch pipe distribution kit for seamless installation. Finally, the MLP-448WU and MLP-449WU grilles ensure efficient airflow, enhancing the overall system performance.

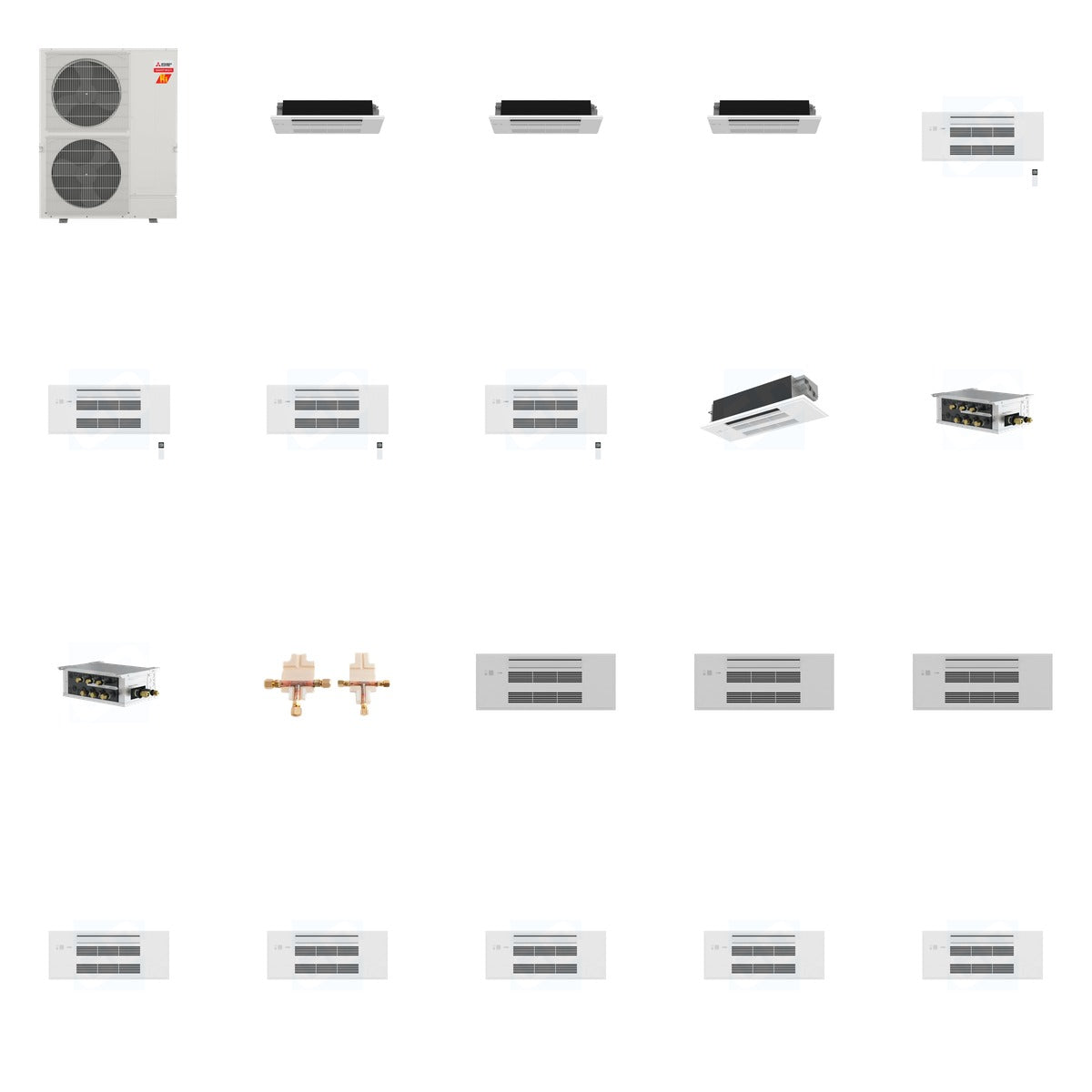

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 460.4 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 13.3 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 50 lb)
• MXZ-SM60NL: 60,000 BTU cooling, 66,000 BTU heating, SEER2 up to 23, 5-ton capacity.
• MLZ-KX06NL: 6,000 BTU cooling, 7,200 BTU heating, suitable for up to 200 sq ft.
• MLZ-KX09NL: 9,000 BTU cooling, 12,000 BTU heating, suitable for up to 350 sq ft.
• MLZ-KX12NL: 12,000 BTU cooling, 15,400 BTU heating, Wi-Fi enabled.
• PAC-LMA50BC: Connects up to 5 indoor units, 208/230V.
• PAC-LMA30BC: Connects up to 3 indoor units, 208/230V.
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants.
• MLP-448WU: Grille dimensions 16.5 x 38.5 x 4.25 inches.
• MLP-449WU: Grille designed for MLZ Series, dimensions 16.5 x 38.5 x 4.25 inches.

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ceiling cassettes are ideal for installation in spaces with standard ceiling joists. The included branch boxes and distribution kit ensure optimal refrigerant management and seamless integration into existing systems.
