Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+9K+9K

Description

The Mitsubishi Electric Multi-Zone HVAC Bundle is the perfect solution for both residential and commercial environments seeking efficient heating and cooling. This comprehensive package includes a powerful MXZ-SM60NL outdoor unit, capable of supporting up to eight indoor units, alongside four MLZ-KX06NL and four MLZ-KX09NL ceiling cassette units for versatile air distribution. Additionally, the bundle features two branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant flow management, ensuring consistent performance across all connected units. With Wi-Fi capabilities and advanced features like adjustable fan speeds and condensate lift mechanisms, this bundle delivers comfort and convenience in any setting.

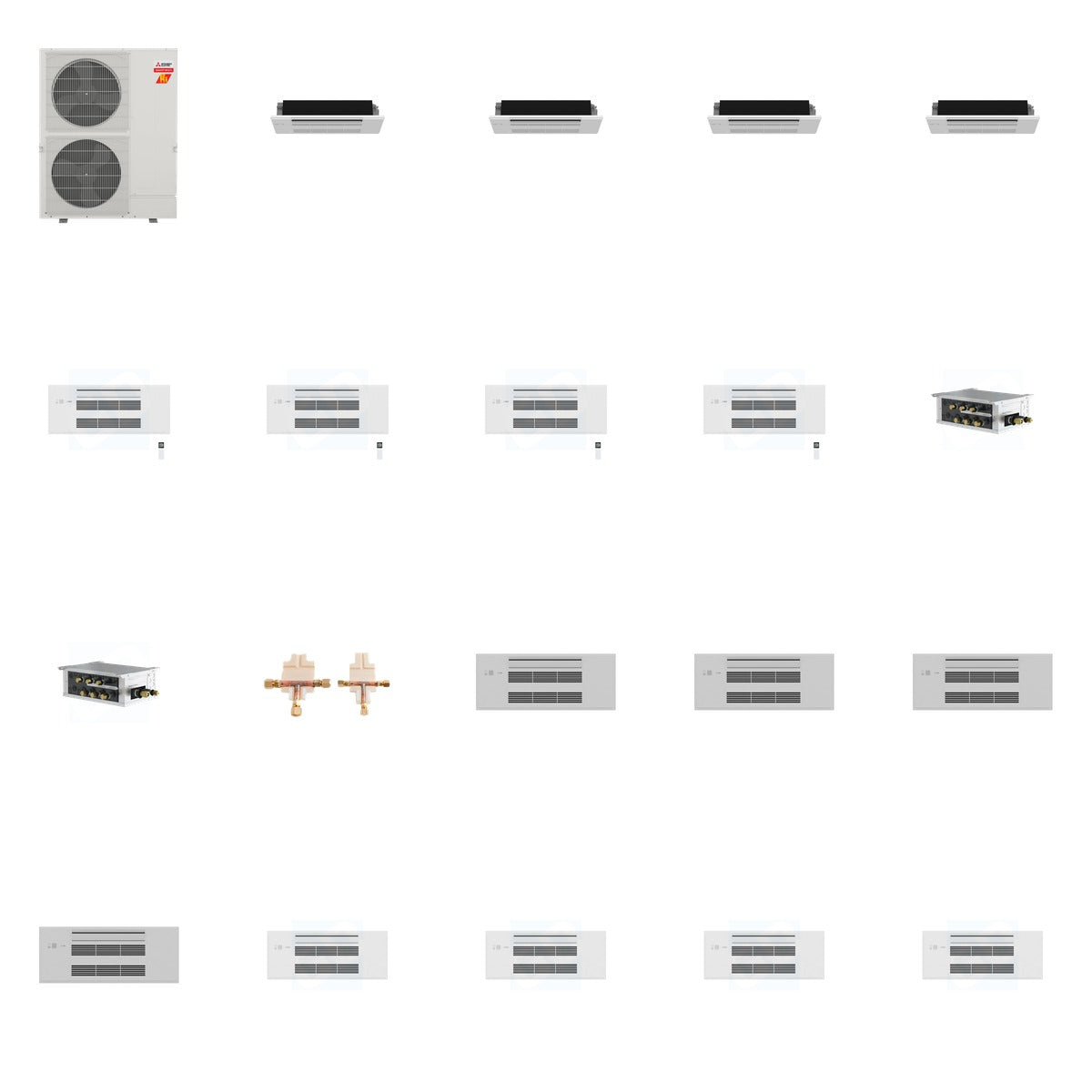

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 457.4 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 13.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 40 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX06NL: 6,000 BTU, fits spaces up to 200 sq ft, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, fits spaces up to 350 sq ft, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, for MXZ outdoor units
• PAC-LMA30BC: 3 ports, 208/230V, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: Grille dimensions 16.5" W x 38.5" L x 4.25" H
• MLP-449WU: Grille dimensions 16.5" W x 38.5" L x 4.25" H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ceiling cassettes are suited for installation between standard ceiling joists. The included branch boxes facilitate refrigerant distribution, ensuring optimal performance for all connected units.
