Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+12K+12K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed for efficient heating and cooling in multi-zone systems. The centerpiece is the MXZ-SM60NL outdoor heat pump, capable of connecting with multiple indoor units for tailored climate control. Complementing this are four ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL) that provide versatile installation options and adjustable airflow. The bundle also includes essential branch boxes (PAC-LMA50BC, PAC-LMA30BC) for optimal refrigerant distribution, along with branch pipe distribution kits (MSDD-50AR2-E) to ensure balanced performance. Grilles (MLP-448WU, MLP-449WU) are included to enhance air circulation and system efficiency. This bundle is perfect for both residential and commercial applications, ensuring comfort and energy efficiency throughout your space.

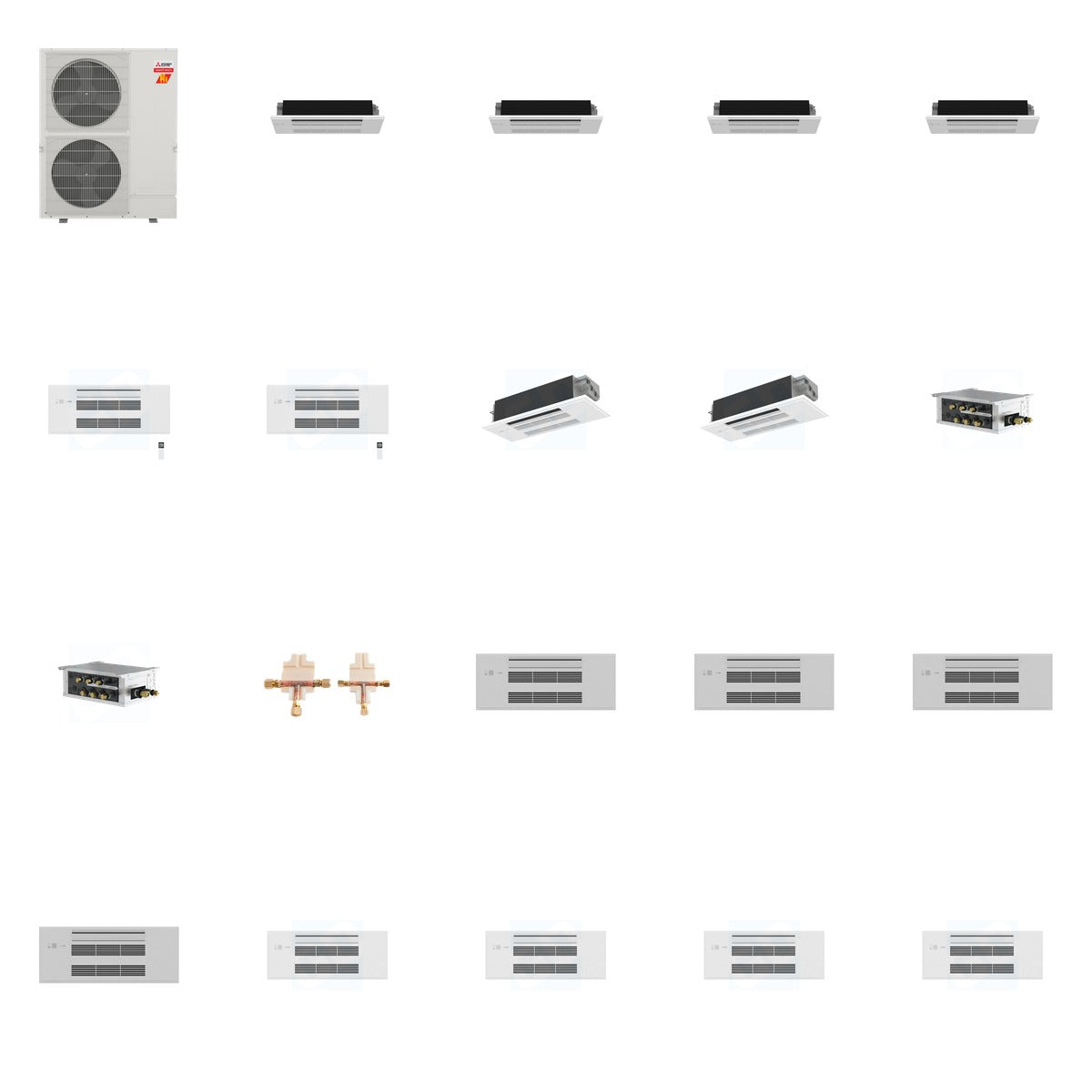

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 518.8 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 6.7 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 40 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX06NL: 6,000 BTU, up to 200 sq ft, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, up to 350 sq ft, Wi-Fi enabled
• MLZ-KX12NL: 12,000 BTU, Wi-Fi enabled, includes antibacterial filter
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: 16.5 x 38.5 x 4.25 inches, 7.9 lbs
• MLP-449WU: Designed for MLZ Series, simple installation

Use & Compatibility

This bundle is designed for use in residential and commercial HVAC systems, providing efficient heating and cooling solutions. The outdoor unit connects to multiple indoor units, making it suitable for various layouts. The included branch boxes and distribution kits ensure optimal refrigerant flow, while the grilles enhance air distribution, making this bundle a versatile choice for any climate control project.
