Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+9K+12K+12K+12K

Description

This comprehensive HVAC bundle features a selection of high-quality Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial applications. The centerpiece of this bundle is the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, which connects to multiple indoor units, allowing for customized climate control across various zones. Complementing this outdoor unit are four ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL) that offer versatile installation options and efficient airflow management. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC, PAC-LMA30BC) for optimal refrigerant distribution, along with a distribution kit (MSDD-50AR2-E) to ensure balanced performance across the system. Finally, the grilles (MLP-448WU, MLP-449WU) enhance air circulation, ensuring that every corner of your space remains comfortable.

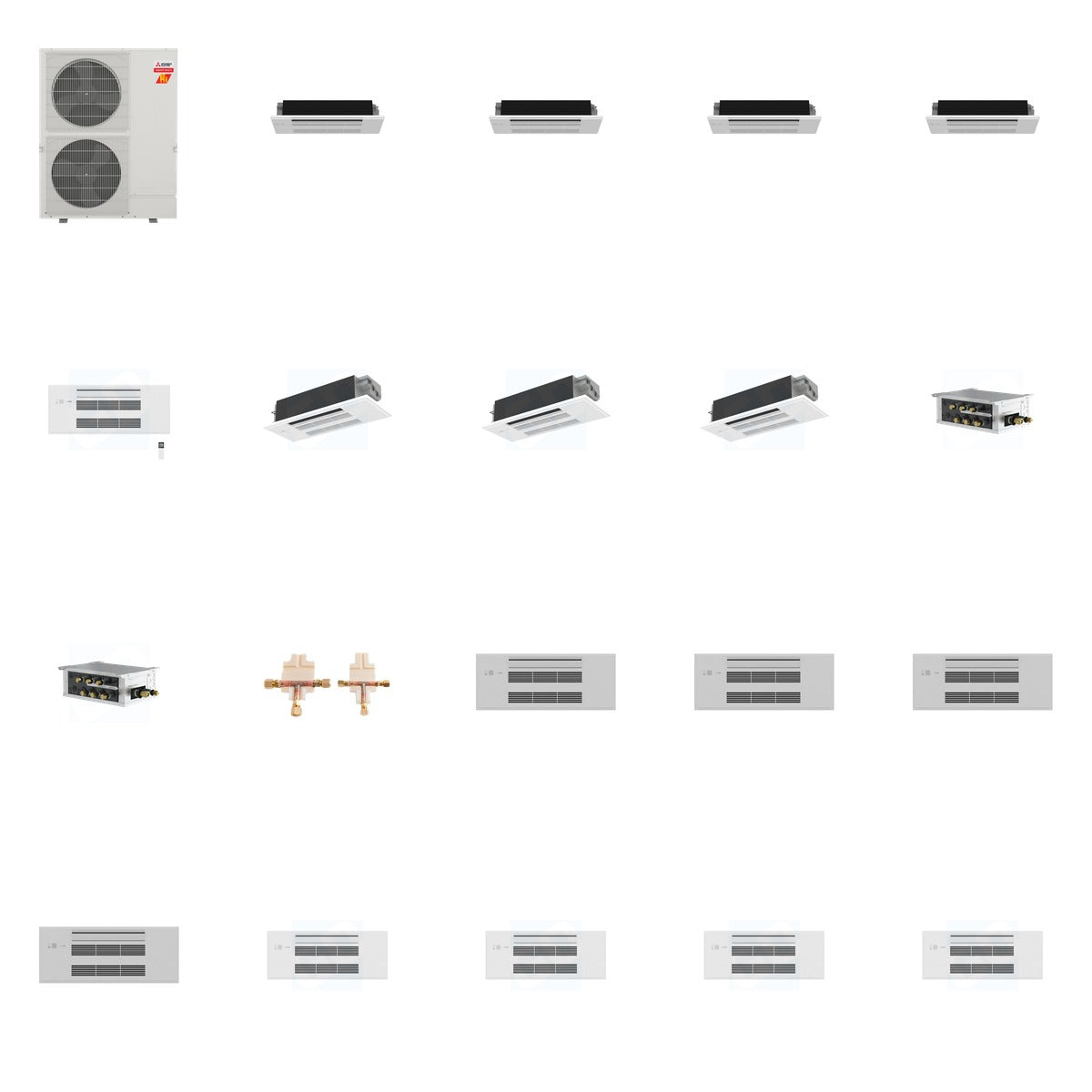

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 549.4 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 3.3 lb + Mitsubishi 102 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 40 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MLZ-KX06NL: 6,000 BTU, suitable for up to 200 sq ft, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, suitable for up to 350 sq ft, Wi-Fi enabled
• MLZ-KX12NL: 12,000 BTU, heating capacity 15,400 BTU, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, compatible with MXZ model
• PAC-LMA30BC: 3 ports, supports R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: 16.5 x 38.5 x 4.25 inches, 7.9 lbs
• MLP-449WU: Dimensions 16.5 x 38.5 x 4.25 inches, 7.9 lbs

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor unit connects seamlessly with the included indoor units, while the branch boxes facilitate efficient refrigerant distribution. Ideal for residential and commercial environments, this setup ensures optimal comfort and energy efficiency across various spaces.
