Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+9K+12K

Description

This comprehensive bundle features essential components for a multi-zone HVAC system, ideal for both residential and commercial applications. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the backbone, providing robust heating and cooling capabilities. Paired with a selection of ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL), this bundle ensures efficient climate control across multiple zones. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance. With additional grilles (MLP-448WU and MLP-449WU) for optimized airflow, this bundle is designed for maximum efficiency and comfort.

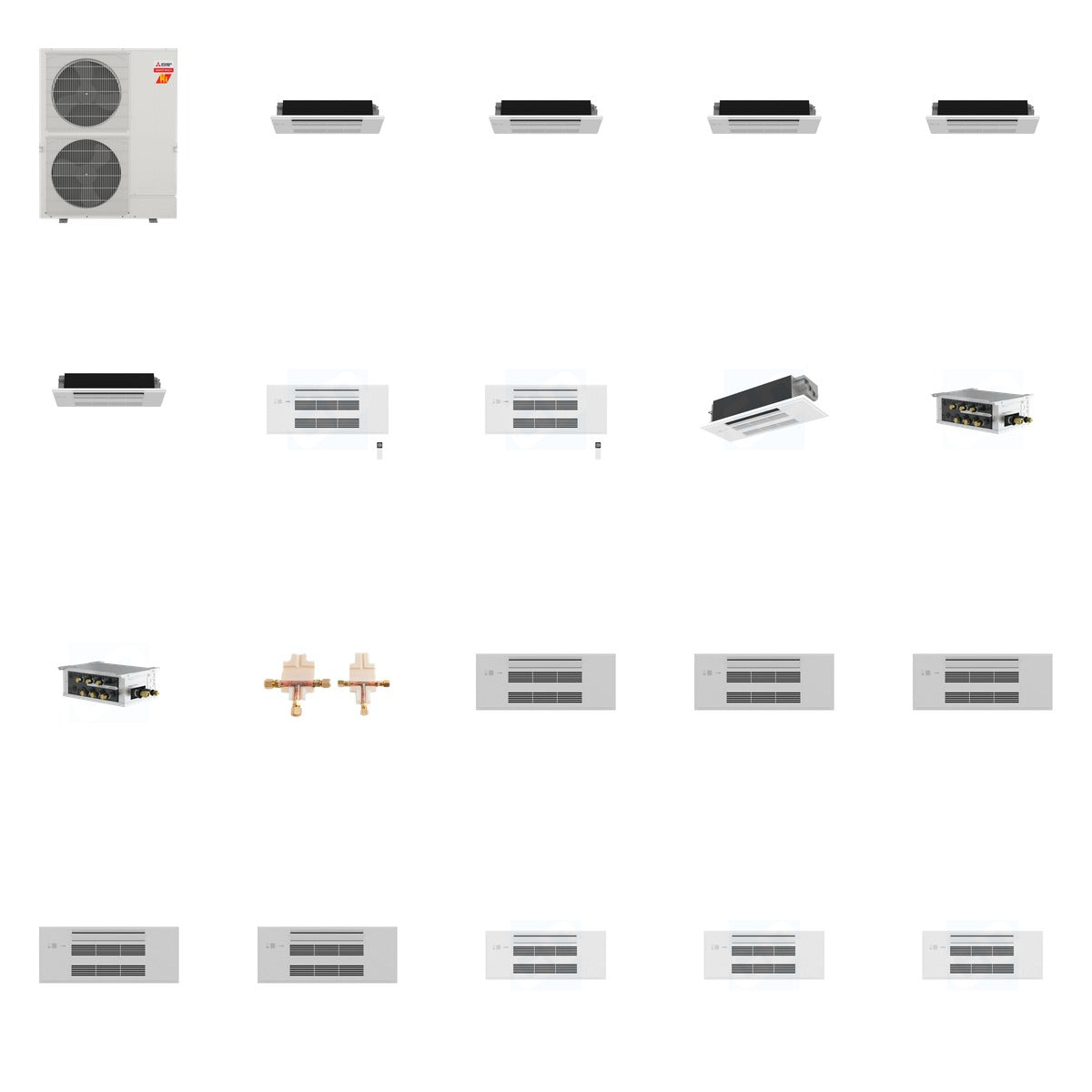

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 515.8 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 6.7 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 30 lb)
• Cooling Capacity: Up to 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (All units)
• Indoor Unit Airflow: 152-325 CFM (varies by model)
• Noise Level: As low as 26 dB(A) (varies by model)
• Dimensions: Vary by unit (e.g., MXZ-SM60NL: 41-11/32" W x 13" D x 52-11/16" H)
• Refrigerant Type: R-454B (All units)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor unit is compatible with multiple indoor units, allowing for tailored climate control. The included branch boxes and distribution kit ensure optimal refrigerant flow, making it suitable for both residential and commercial applications.
