Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+9K+9K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone climate control system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, providing robust heating and cooling capabilities. Paired with multiple MLZ-KX ceiling cassette indoor units, this setup ensures optimal comfort across various spaces. The included branch boxes facilitate seamless refrigerant distribution, while the grilles enhance airflow efficiency. Together, these components are designed to work in harmony, making them ideal for both residential and commercial applications.

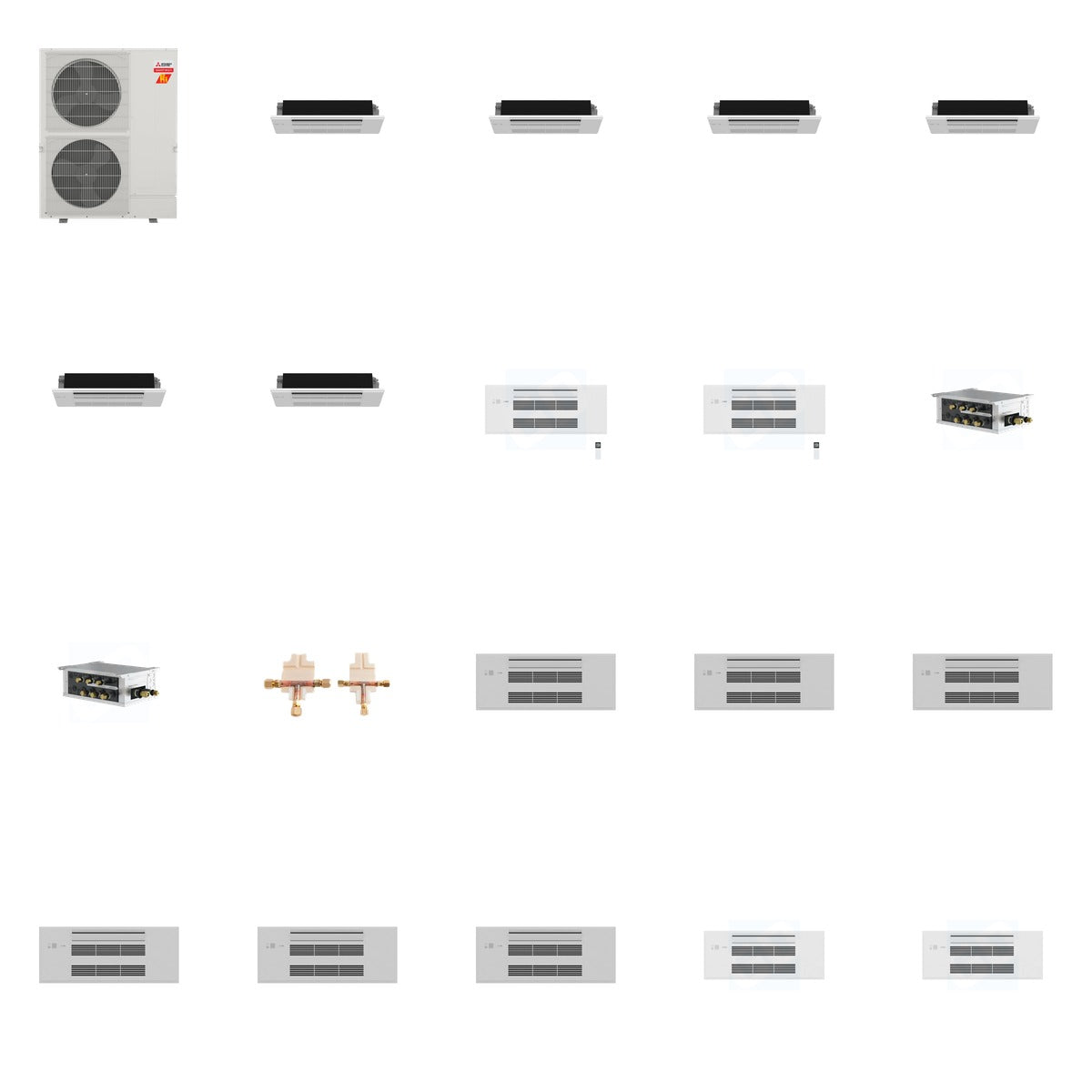

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x6)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KX Series) (Qty x6)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 512.8 lb (Mitsubishi 225 lb + Mitsubishi 204 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb + Mitsubishi 20 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23, 5-Ton capacity
• MLZ-KX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, suitable for up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, suitable for up to 350 sq ft
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230 Volts
• PAC-LMA30BC: 3 ports, compatible with R454B, 208/230 Volts
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• Grilles: MLP-448WU (6) and MLP-449WU (2) for optimized airflow

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor unit is compatible with various indoor units, including the MLZ-KX series, ensuring efficient climate control across multiple zones. Ideal for residential and commercial applications, this setup enhances comfort while maintaining energy efficiency.
