Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+18K+18K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone climate control system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, providing up to 60,000 BTU of cooling and 66,000 BTU of heating capacity. Paired with multiple indoor units, including the MLZ-KX06NL and MLZ-KX18NL ceiling cassettes, this bundle offers flexible heating and cooling solutions for various room sizes. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensures optimal refrigerant flow, while the MSDD-50AR2-E branch pipe distribution kit guarantees balanced pressure across all units. Completing the setup are the MLP-448WU and MLP-449WU grilles, which enhance airflow efficiency. Together, these components create a robust and versatile HVAC system suitable for both residential and commercial applications.

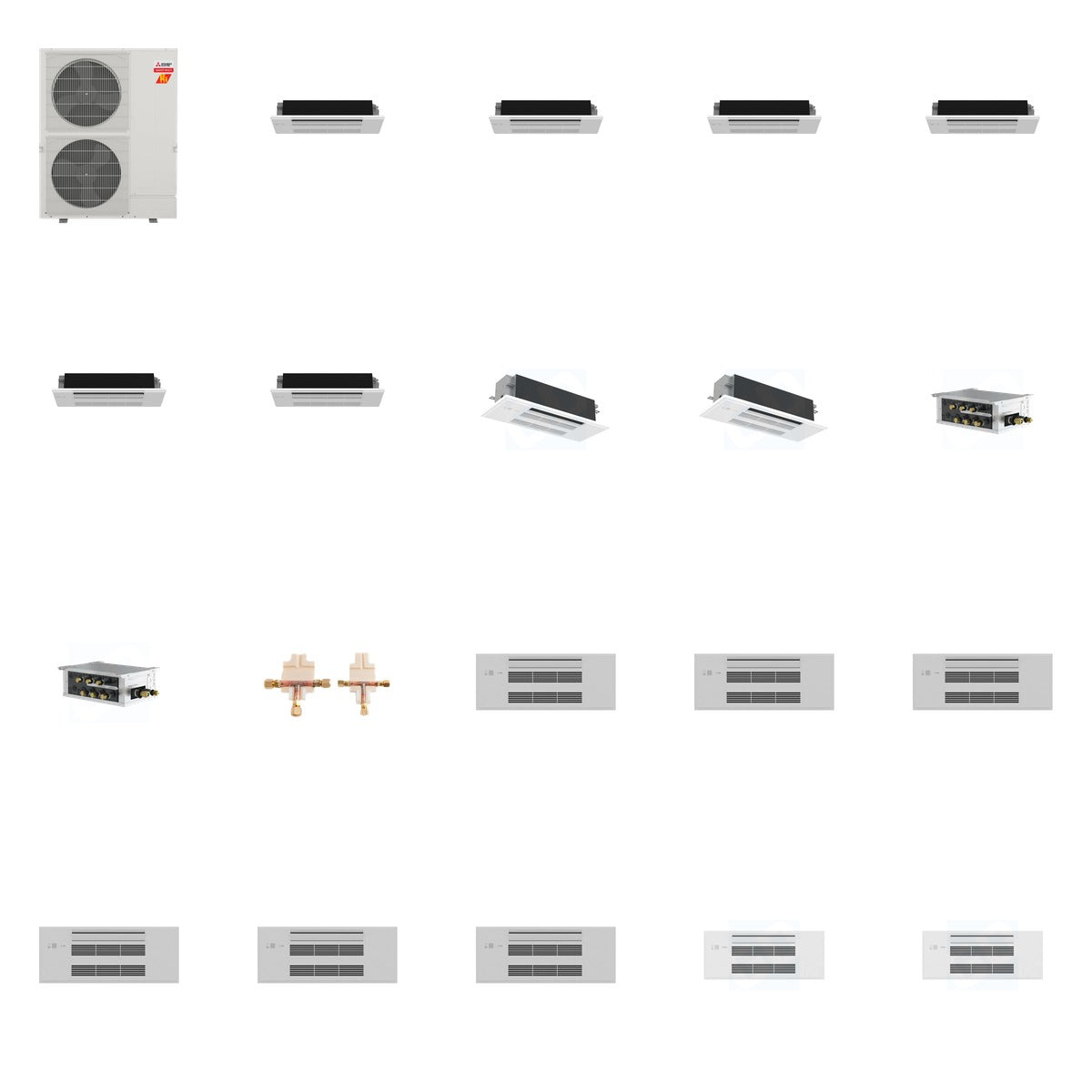

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x6)

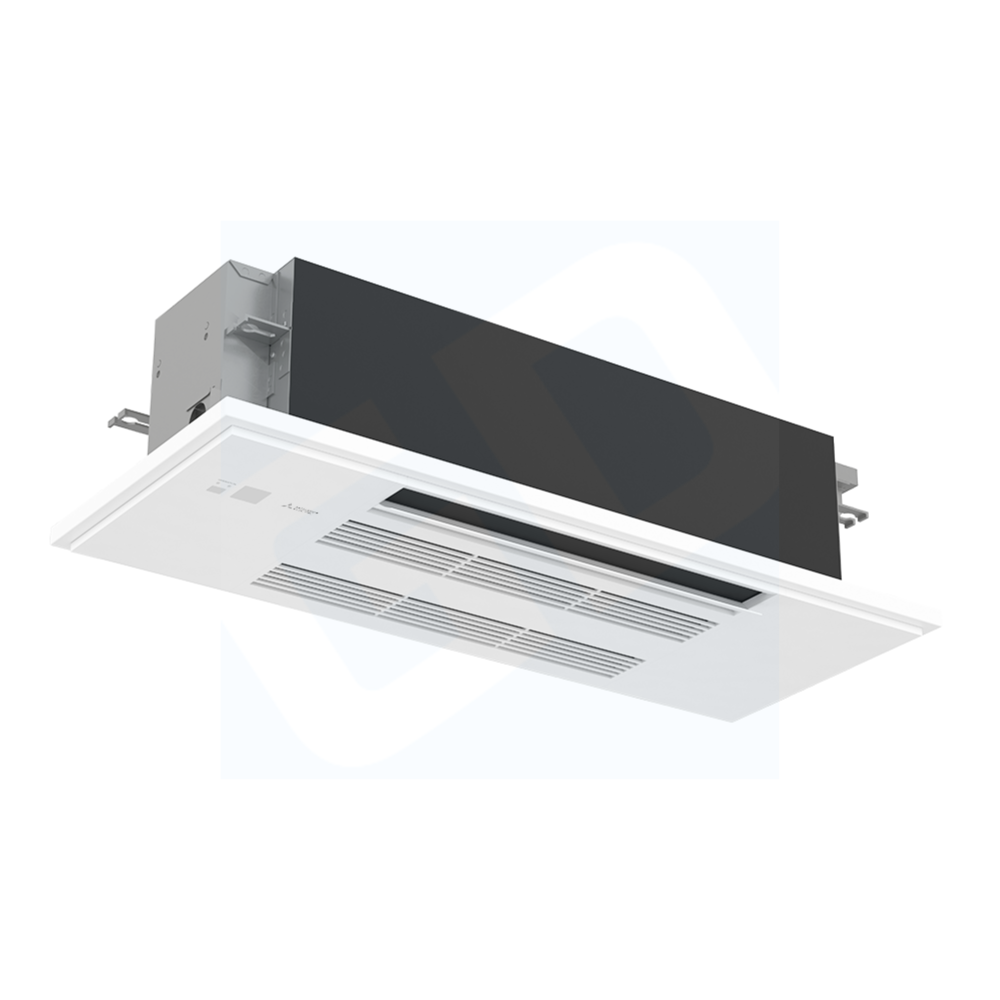

• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x6)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 512.8 lb (Mitsubishi 225 lb + Mitsubishi 204 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb + Mitsubishi 20 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL), 18,000 BTU (MLZ-KX18NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (All units)
• Material: Copper (MSDD-50AR2-E)
• Dimensions: Various (refer to individual components)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for both residential and commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring seamless integration and optimal performance across all units.
