Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+12K+12K

Description

This comprehensive HVAC bundle features a selection of high-quality Mitsubishi Electric products designed to work seamlessly together for optimal heating and cooling in multi-zone applications. The MXZ-SM60NL outdoor unit serves as the powerhouse, efficiently supplying up to 60,000 BTUs of cooling and 66,000 BTUs of heating. Paired with the MLZ-KX06NL and MLZ-KX12NL ceiling cassette indoor units, this bundle provides versatile air distribution for spaces up to 200 square feet and 12,000 BTUs respectively. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensures effective refrigerant management, while the MSDD-50AR2-E branch pipe kit guarantees balanced refrigerant flow across multiple indoor units. Completing the set, the MLP-449WU and MLP-448WU grilles enhance airflow efficiency, making this bundle an ideal choice for both residential and commercial environments.

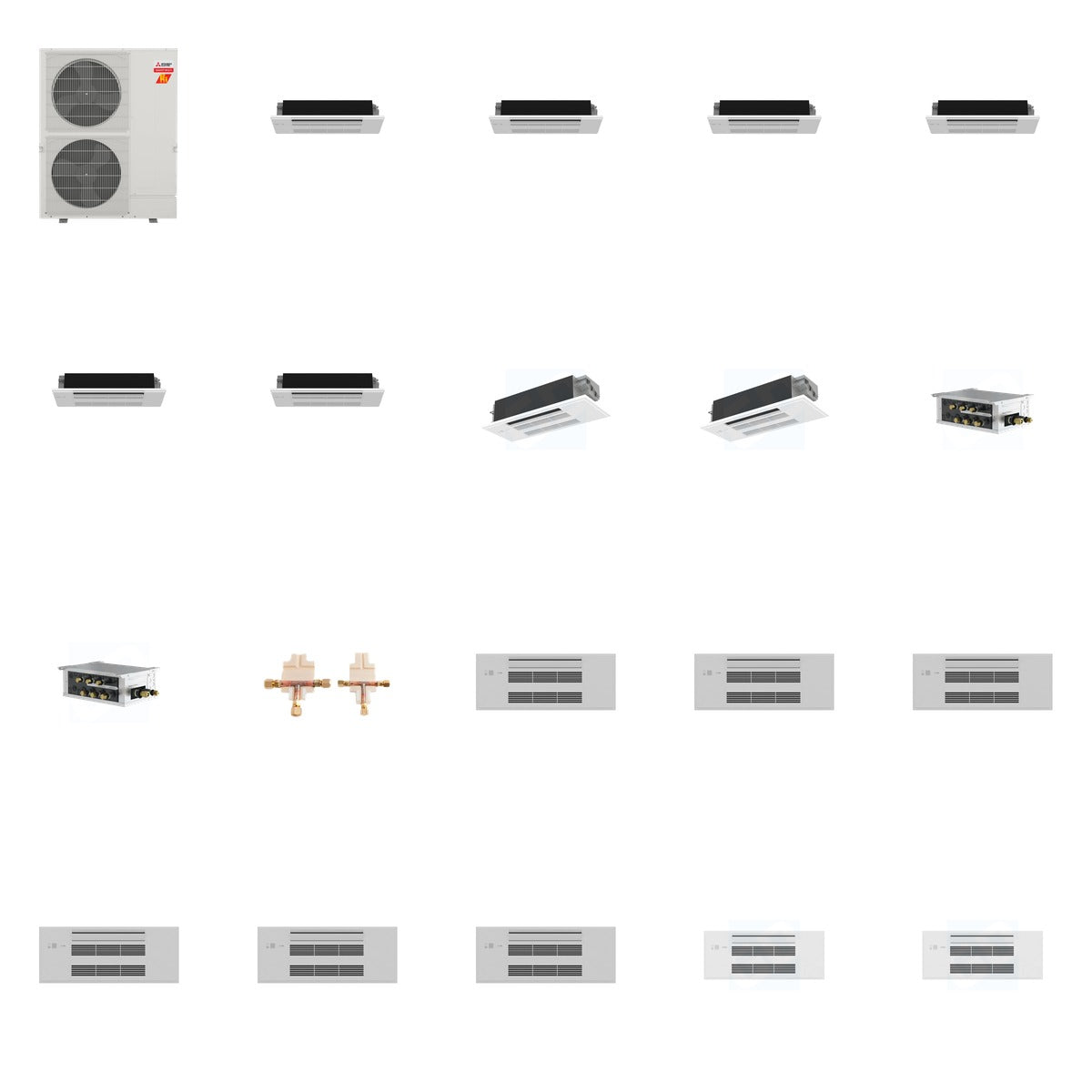

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x6)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x6)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 574.1 lb (Mitsubishi 225 lb + Mitsubishi 204 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb + Mitsubishi 20 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL), 12,000 BTU (MLZ-KX12NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (All units)
• Dimensions: Various (see individual units for specifics)
• Material: Copper (MSDD-50AR2-E), Plastic (Grilles)

Use & Compatibility

This bundle is designed for use in residential and commercial HVAC systems, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various M-Series and CITY MULTI indoor units, ensuring flexibility in installation and operation. Ideal for spaces requiring customized climate control, this bundle meets the needs of diverse environments.
