Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K+18K+18K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial spaces. Featuring a powerful Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle allows for customized climate control across multiple zones. The included one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX12NL, and MLZ-KX18NL) ensure efficient air distribution and comfort in various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow management, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. With essential grilles (MLP-448WU and MLP-449WU) for optimal airflow, this bundle is perfect for achieving a balanced and efficient HVAC system.

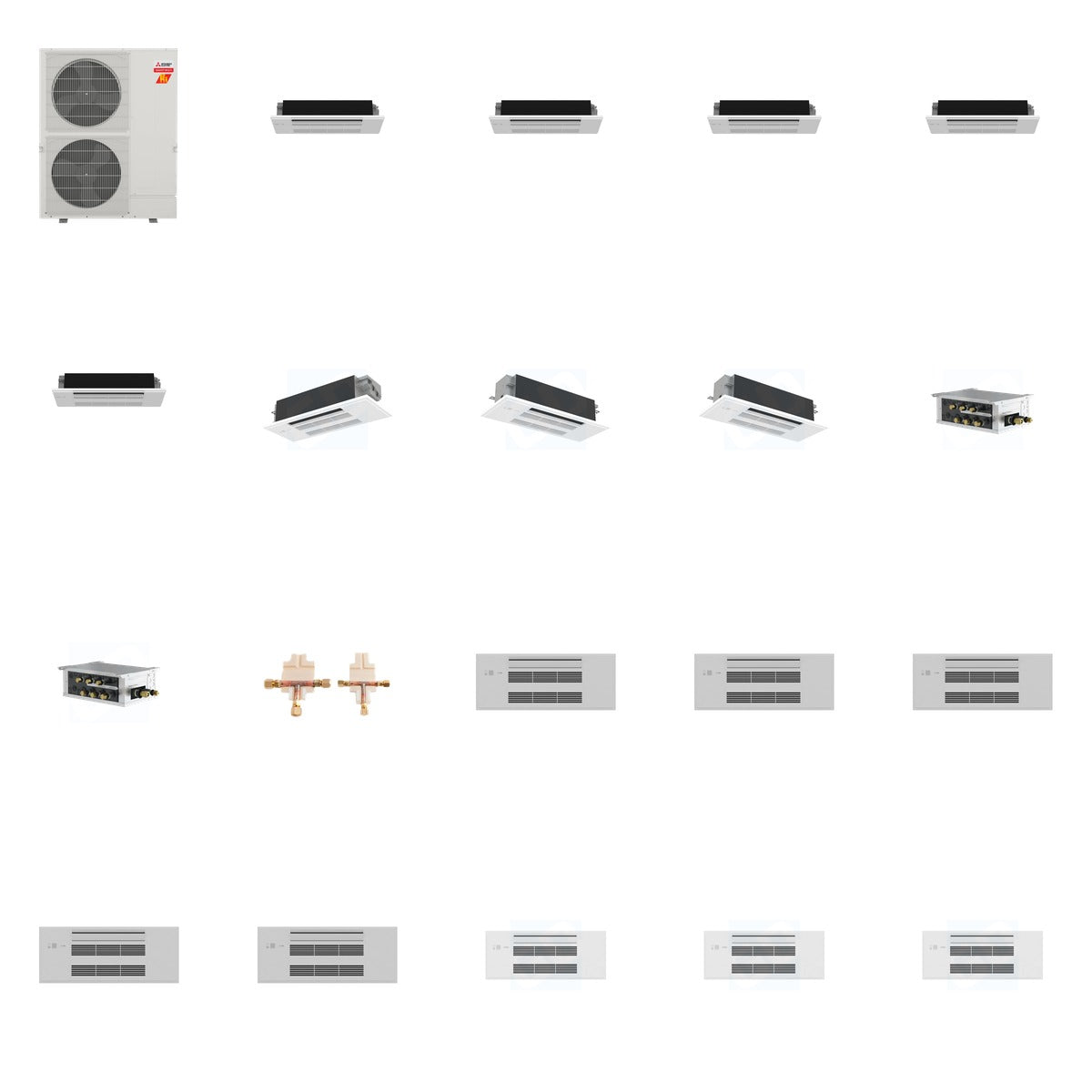

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 515.8 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 34 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 30 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-Ton Inverter Condenser
• MLZ-KX06NL: 6,000 BTU, 208/230V, Wi-Fi enabled, suitable for up to 200 sq ft
• MLZ-KX12NL: 12,000 BTU, 208/230V, Wi-Fi enabled, heating capacity 15,400 BTU
• MLZ-KX18NL: 18,000 BTU, 208/230V, maximum airflow 417 CFM
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs for refrigerant management
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants
• MLP-448WU: Dimensions 16.5 x 38.5 x 4.25 inches, weight 7.9 lbs
• MLP-449WU: Dimensions 16.5 x 38.5 x 4.25 inches, weight 7.9 lbs

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor unit connects seamlessly with various indoor units, making it suitable for diverse residential and commercial applications. The included branch boxes and distribution kit ensure efficient refrigerant flow, while the grilles optimize air distribution for maximum comfort.
