Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K+12K+12K

Description

This comprehensive bundle features essential components for a multi-zone heating and cooling system, perfect for both residential and commercial applications. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering up to 60,000 BTUs of cooling and 66,000 BTUs of heating. Paired with a mix of ceiling cassette indoor units (MLZ-KX06NL and MLZ-KX12NL), this setup ensures optimal comfort across various spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate efficient refrigerant distribution, while the MSDD-50AR2-E branch pipe kit guarantees balanced performance. With grilles designed for both the MLZ-KY and MLZ series, this bundle is engineered for maximum efficiency and seamless integration.

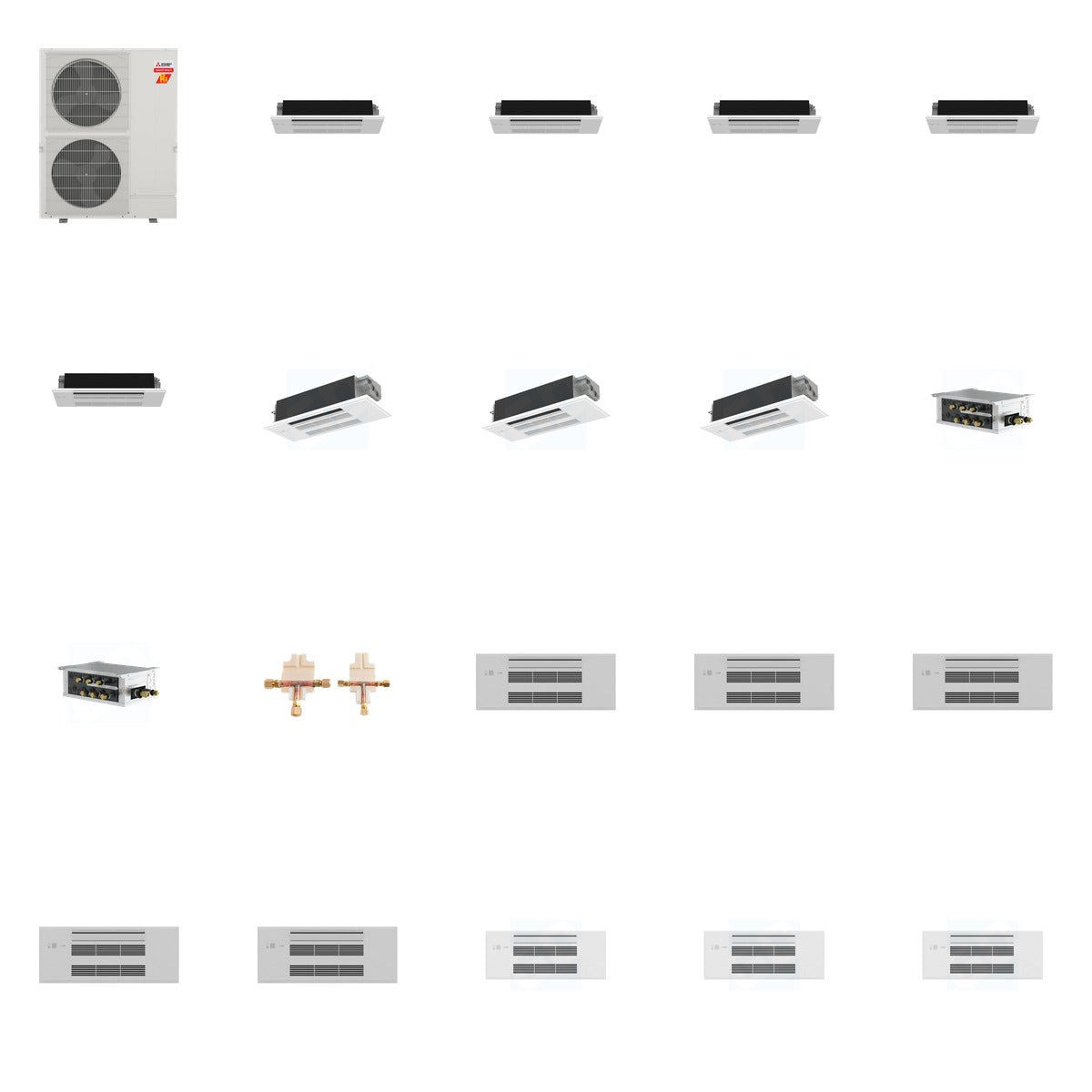

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 577.1 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 102 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 30 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL), 12,000 BTU (MLZ-KX12NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230V
• Dimensions: Varies by unit; MXZ-SM60NL: 41-11/32 x 13 x 52-11/16 inches
• Material: Copper (MSDD-50AR2-E), Plastic (Grilles)
• Noise Level: As low as 29 dB(A) (MLZ-KX series)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. Compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, it allows for flexible installation and optimal comfort in both residential and commercial settings.
