Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+12K+12K+12K+12K+12K

Description

This comprehensive bundle includes essential components for setting up a highly efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, providing robust heating and cooling capabilities across multiple zones. Paired with the MLZ-KX06NL and MLZ-KX12NL ceiling cassette indoor units, this bundle offers flexible installation options and optimal air distribution for various room sizes. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure effective refrigerant management, while the MSDD-50AR2-E branch pipe kit facilitates seamless connections between units. Completing the setup, the MLP-448WU and MLP-449WU grilles enhance airflow and system efficiency, making this bundle ideal for both residential and commercial applications.

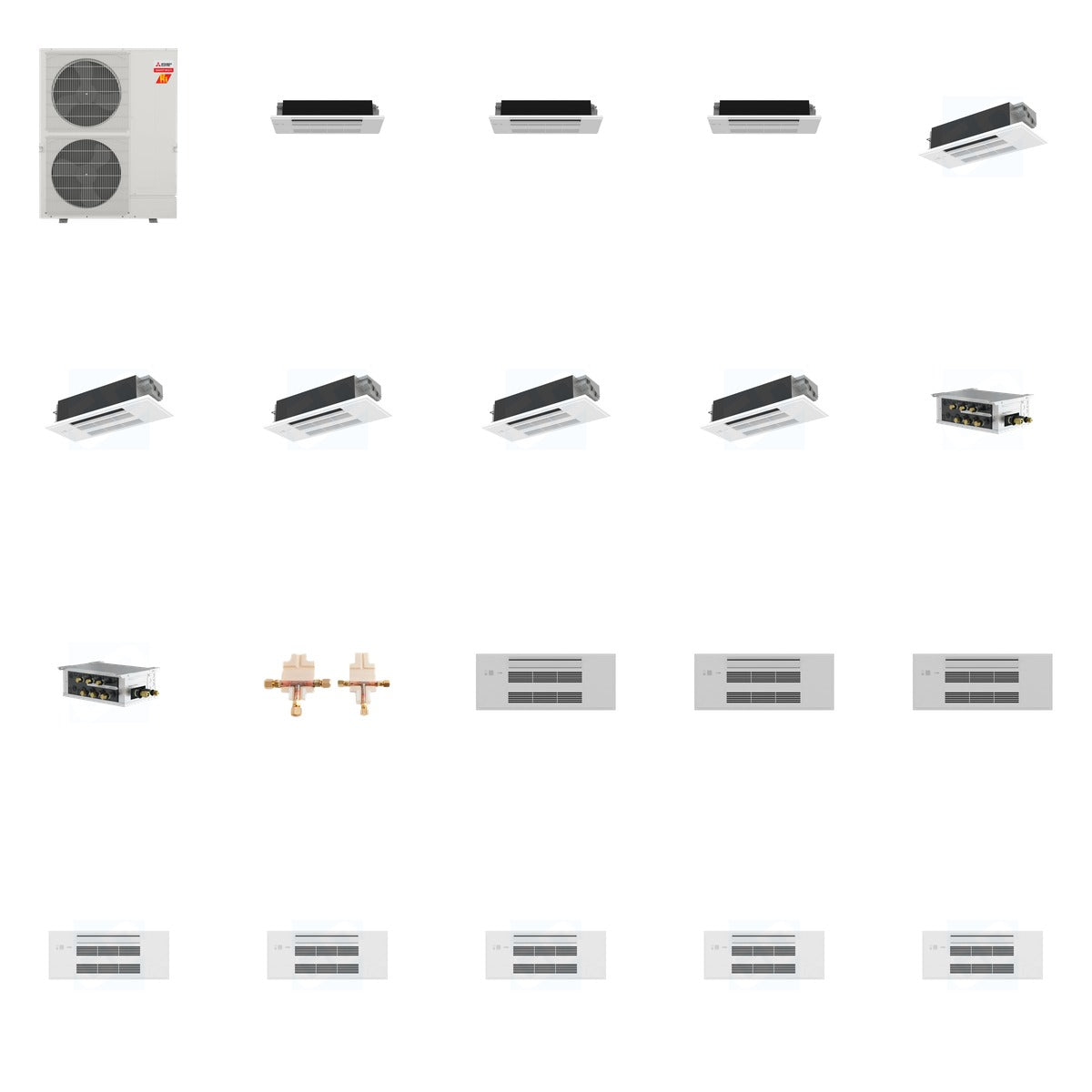

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 583.1 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 170 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 50 lb)
• Outdoor Unit Capacity: 60,000 BTU
• Indoor Units: 6,000 BTU (x3), 12,000 BTU (x5)
• SEER2 Rating: Up to 23
• Voltage: 208/230V
• Noise Level: As low as 27 dB(A)
• Material: Copper (branch pipes), Durable Plastic (grilles)
• Dimensions: Various (see individual units for specifics)

Use & Compatibility

This bundle is designed for residential and commercial multi-zone HVAC systems, providing efficient heating and cooling across multiple indoor units. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring optimal performance and flexibility in installation.
