Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+9K+9K+15K+24K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. Featuring a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle includes multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL, and MSZ-GX24NL) that cater to various room sizes and configurations. The addition of branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensures optimal refrigerant flow, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these components create a versatile and effective climate control system tailored to meet diverse heating and cooling needs.

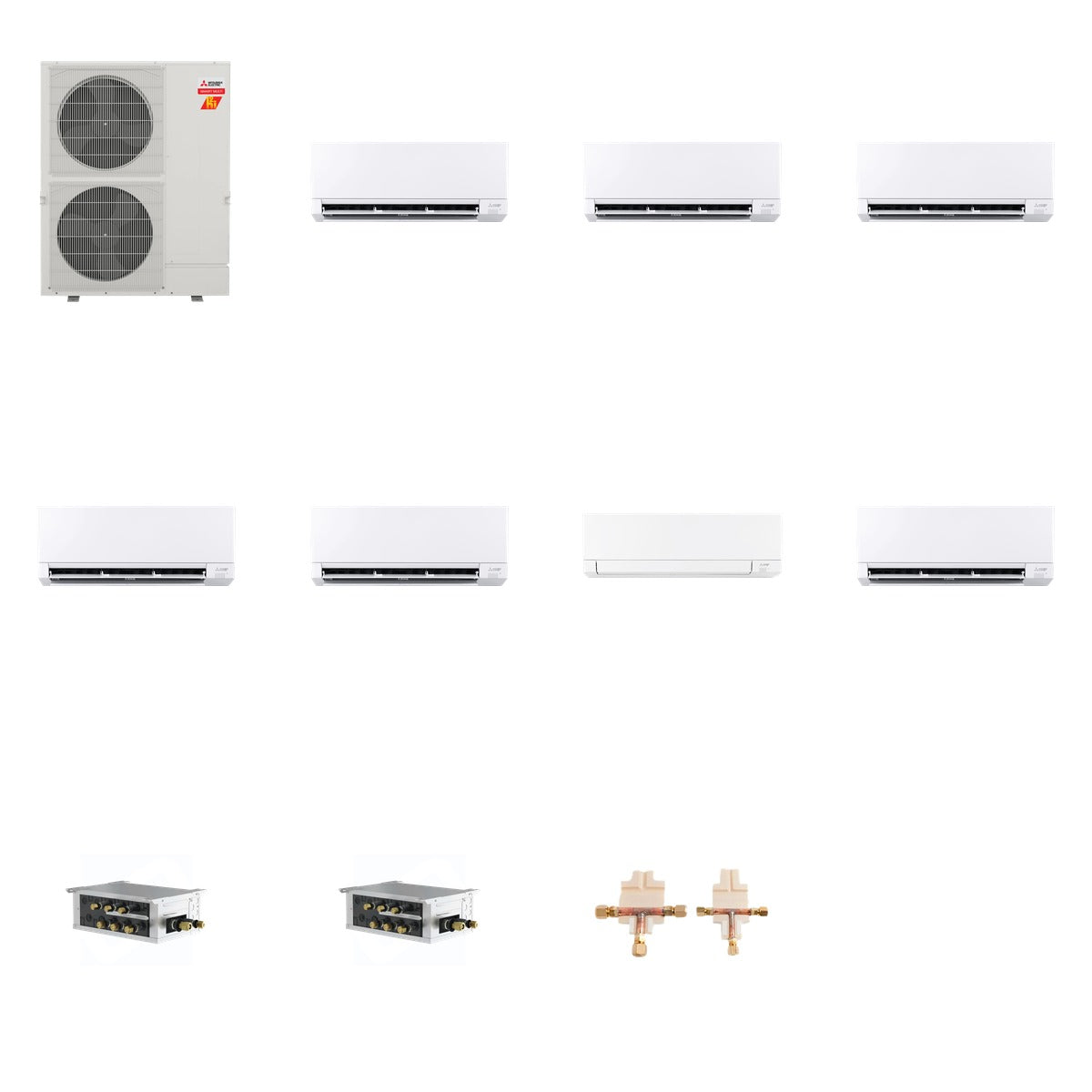

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 400.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Outdoor Unit Capacity: 60,000 BTU
• Indoor Units: 6,000 BTU to 24,000 BTU
• SEER2 Ratings: Up to 28.4
• Heating Capacity: Up to 27,600 BTU
• Voltage: 208/230 Volts
• Refrigerant: R454B
• Sound Levels: As low as 19 dB(A)
• Branch Box Ports: 3 or 5 connections

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit connects seamlessly with multiple indoor air handlers, making it suitable for both residential and commercial applications. The included branch boxes and distribution kit facilitate effective refrigerant management, ensuring optimal performance and comfort.
