Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+12K+15K+15K+15K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. Featuring a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle includes multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL) that cater to various room sizes and configurations. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit simplifies installation and enhances system performance. Together, these components create a versatile and energy-efficient climate control system tailored to meet diverse heating and cooling needs.

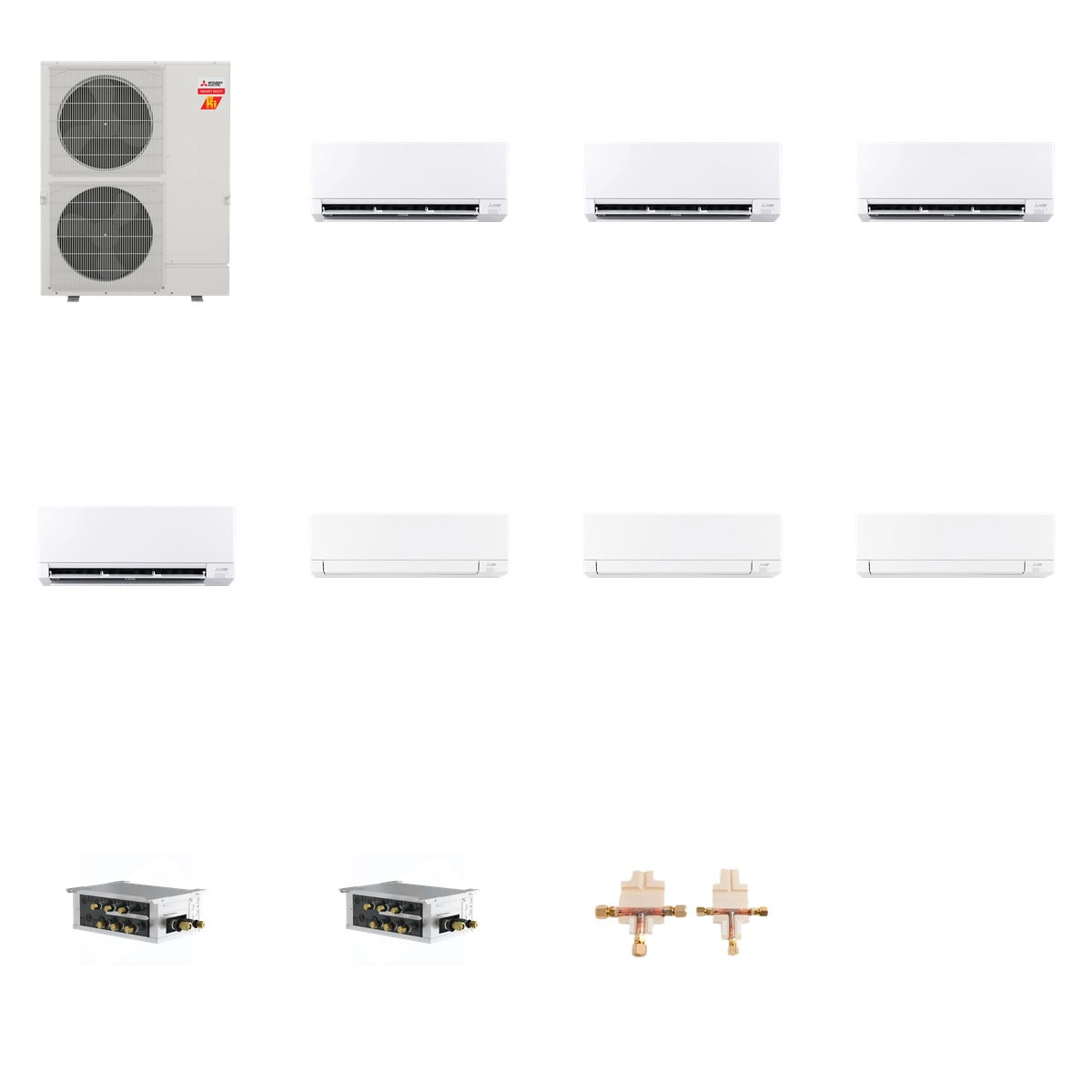

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU/h
• Heating Capacity: Up to 66,000 BTU/h
• SEER2 Rating: Up to 28.4
• AFUE: Not Applicable
• Voltage: 208/230 Volts
• Noise Level: As low as 19 dB(A)
• Material: Oxygen-Free Copper (for branch pipes)
• Dimensions: Varies by unit (see specifications)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing customizable comfort across various spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the included air handlers can efficiently serve spaces ranging from 250 to 1,500 square feet, depending on the model. The branch boxes and distribution kit facilitate seamless integration and optimal refrigerant flow, ensuring reliable performance in diverse settings.
