Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+9K+15K+24K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed for optimal climate control in both residential and commercial settings. Featuring a powerful MXZ-SM60NL outdoor unit capable of supporting up to eight indoor units, this bundle includes various wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL, MSZ-GX24NL) that provide efficient heating and cooling for spaces of different sizes. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure balanced refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit facilitates seamless installation. Together, these components create a versatile and efficient multi-zone system tailored for diverse climate control needs.

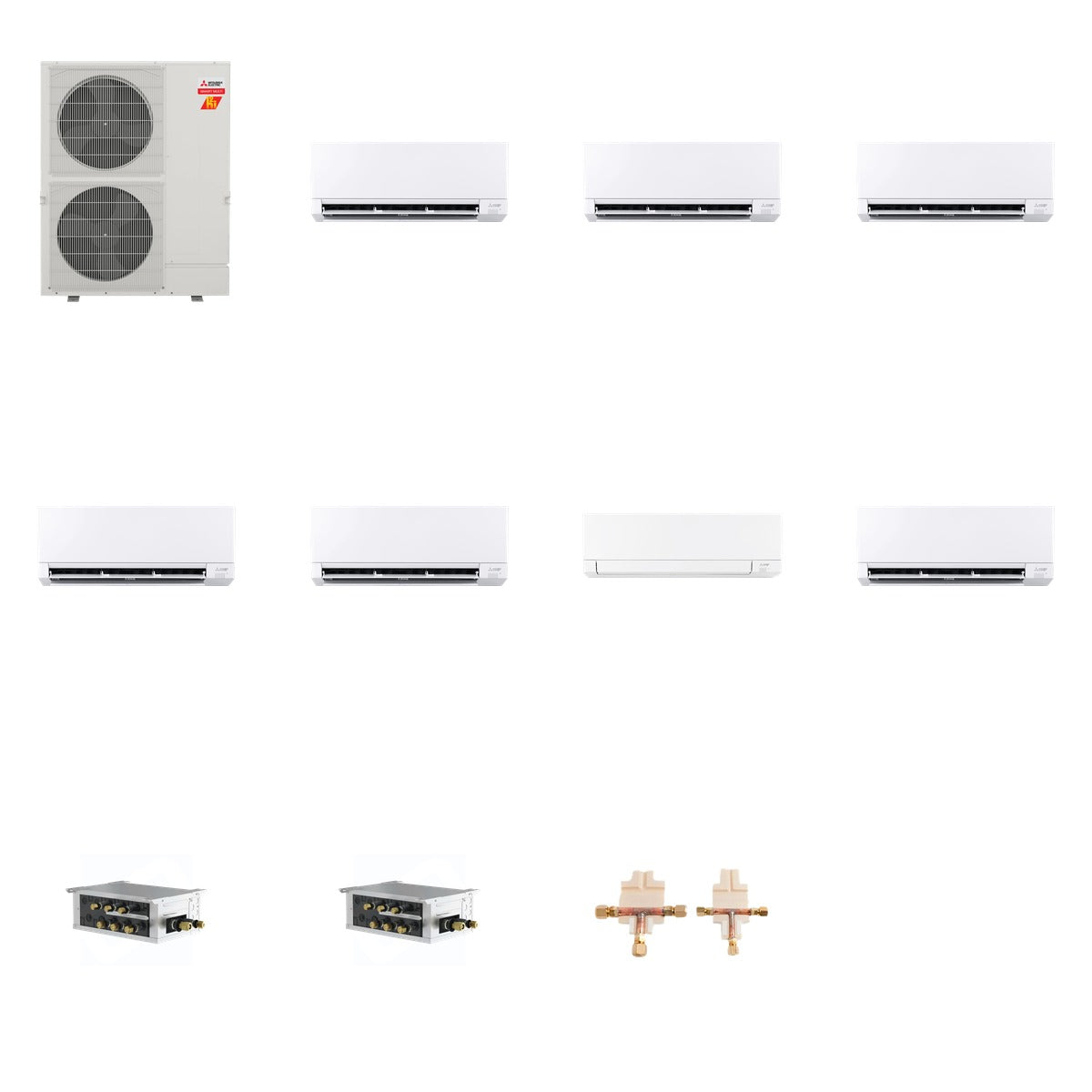

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - R454B 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 400.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacities: 6,000 to 24,000 BTU (various models)
• SEER2 Ratings: Up to 28.4 (MSZ-GX series)
• Refrigerant: R454B
• Voltage: 208/230 Volts
• Sound Levels: As low as 19 dB(A)
• Branch Box Ports: 3 or 5 (PAC-LMA30BC and PAC-LMA50BC)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexible options for both residential and commercial environments. The outdoor unit is compatible with various indoor units, allowing for customized climate control in different areas. The included branch boxes and distribution kit ensure efficient refrigerant management, making this system suitable for a wide range of HVAC setups.
