Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+15K+15K+18K

Description

This comprehensive HVAC bundle features essential components designed for optimal performance in multi-zone heating and cooling systems. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor air handlers for customized climate control. Complementing this are the MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL, and MSZ-GX18NL wall-mounted air handlers, each providing efficient heating and cooling for various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant management, while the MSDD-50AR2-E distribution kit facilitates seamless refrigerant flow. Together, these components create a versatile and efficient HVAC solution for residential and commercial applications.

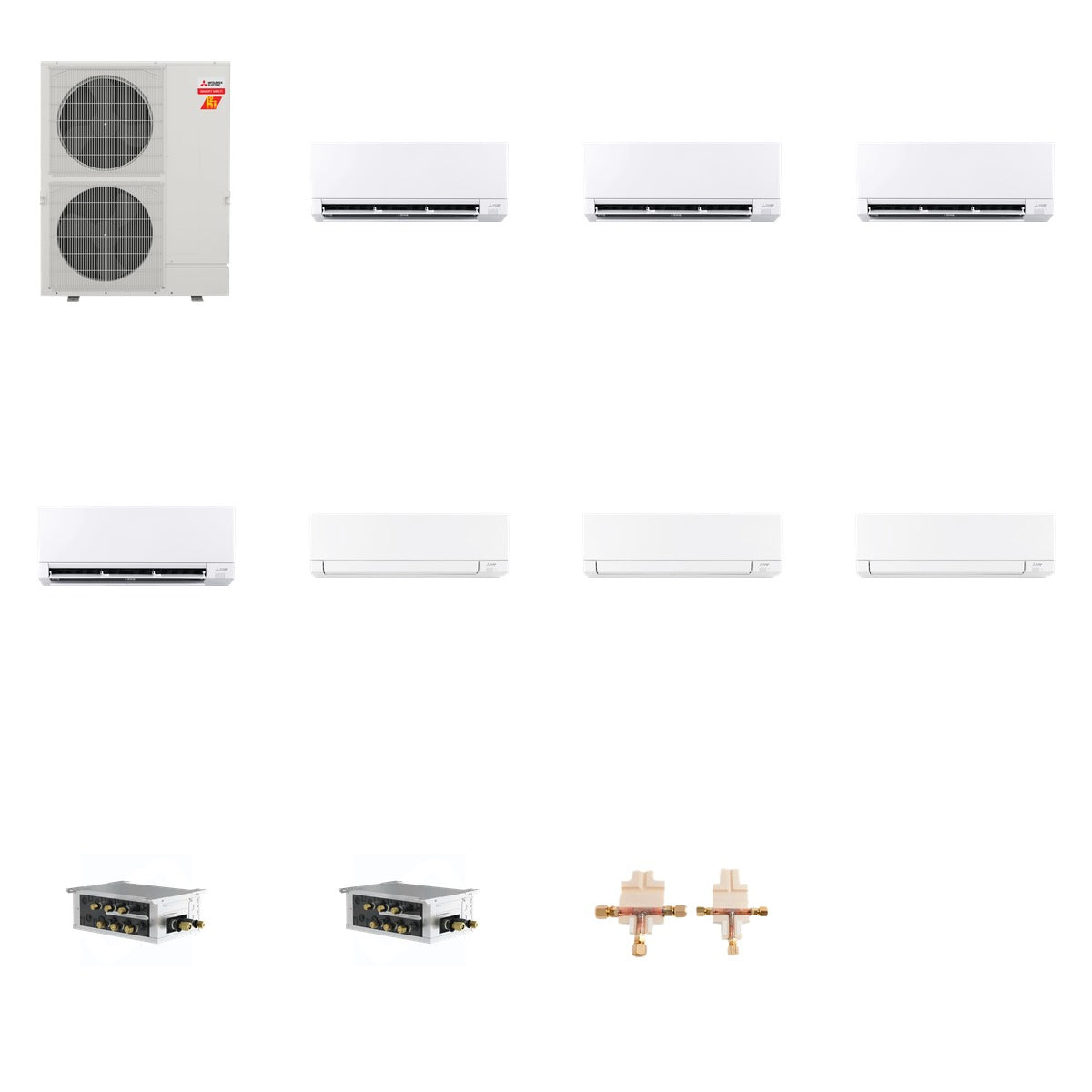

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 400.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mount Air Handlers: 6,000 BTU (MSZ-GX06NL), 9,000 BTU (MSZ-GX09NL), 15,000 BTU (MSZ-GX15NL), 18,000 BTU (MSZ-GX18NL)
• SEER2 Ratings: Up to 28.4 (MSZ-GX series)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Sound Levels: As low as 19 dB(A) (MSZ-GX series)
• Dimensions: Vary by unit; MXZ-SM60NL measures 41-11/32 in W x 13 in D x 52-11/16 in H

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems, providing efficient heating and cooling solutions. The outdoor unit connects seamlessly with multiple indoor air handlers, making it suitable for various room configurations. Ideal for users looking to enhance their indoor climate control with advanced technology and energy efficiency.
