Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+9K+15K+24K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the backbone, providing powerful 60,000 BTU capacity for both heating and cooling. Paired with four wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL, and MSZ-GX24NL), this bundle caters to various room sizes and configurations, ensuring optimal comfort throughout your space. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance. Together, these components create a versatile and efficient HVAC solution for residential or commercial applications.

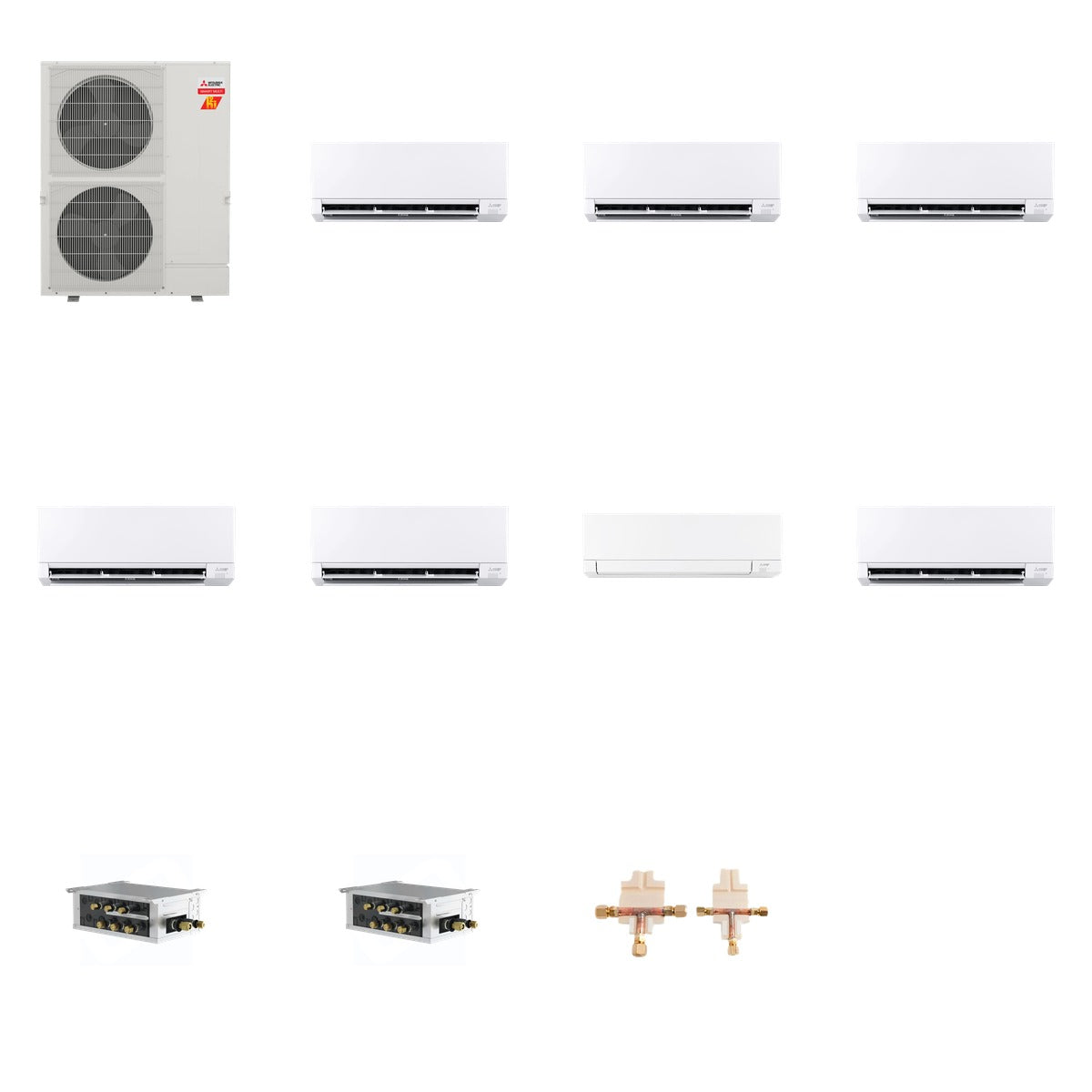

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX09NL - 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 400.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mount Air Handlers: 6,000 BTU to 24,000 BTU
• SEER2 Ratings: Up to 28.4
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Sound Levels: As low as 19 dB(A)
• Branch Boxes: Connects up to 5 indoor units (PAC-LMA50BC)

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications, providing efficient heating and cooling for multi-zone systems. The outdoor unit is compatible with various indoor units, allowing for customized configurations to meet specific space requirements. Ideal for both new installations and upgrades, this system ensures optimal comfort and energy efficiency.
