Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+15K+15K+15K

Description

This comprehensive HVAC bundle includes essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, providing up to 60,000 BTU of cooling and 66,000 BTU of heating capacity. Paired with four wall-mounted air handlers (MSZ-GX06NL and MSZ-GX15NL), this setup is perfect for both residential and commercial applications, ensuring customizable comfort across various spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate optimal refrigerant flow to multiple indoor units, enhancing system efficiency. Additionally, the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant distribution, making installation straightforward and effective.

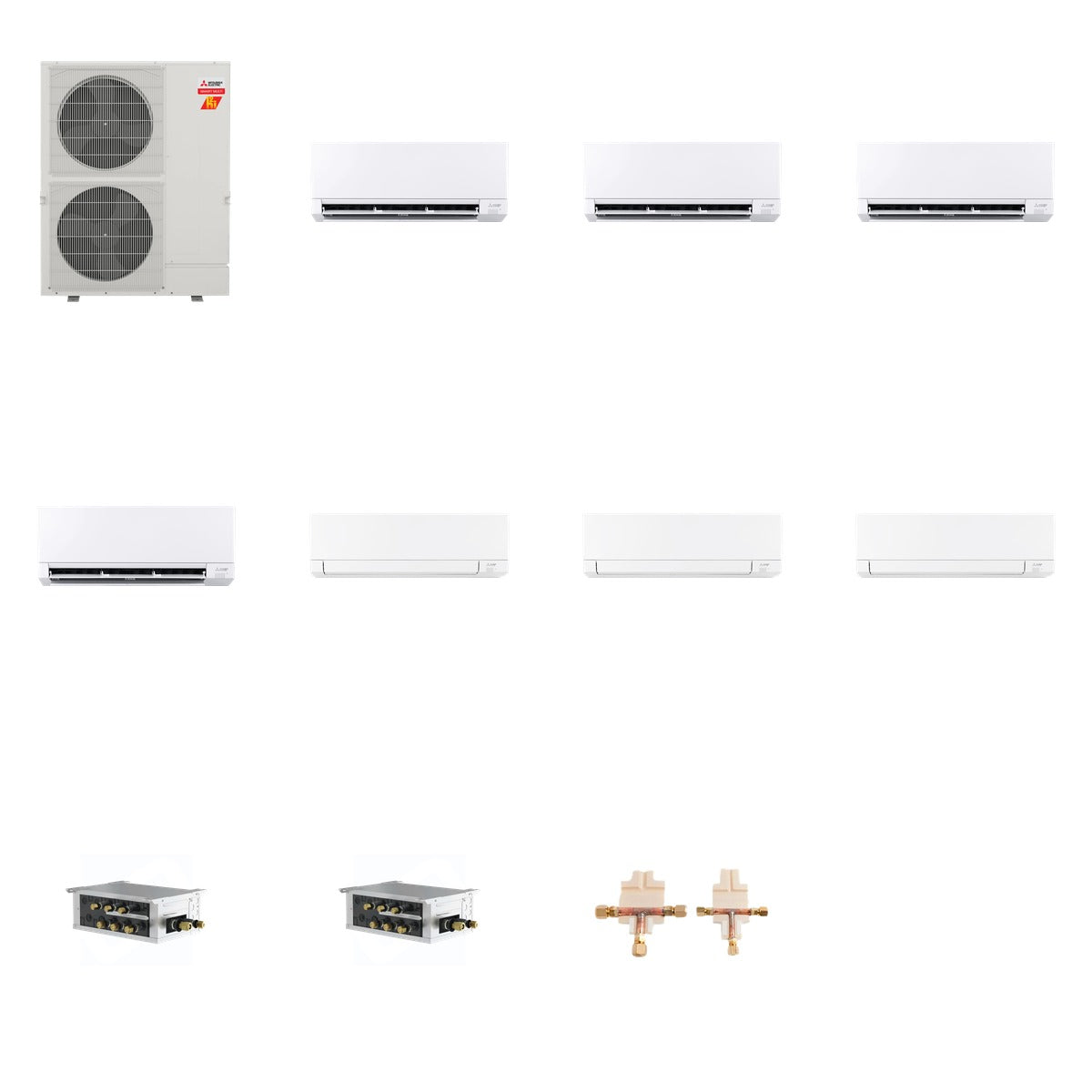

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mount Air Handlers: 6,000 BTU (MSZ-GX06NL), 15,000 BTU (MSZ-GX15NL)
• SEER2: Up to 28.4 (MSZ-GX06NL)
• Voltage: 208/230 Volts
• Material: Copper (MSDD-50AR2-E)
• Sound Level: As low as 19 dB(A) (MSZ-GX06NL)
• Dimensions: Varies by component

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, suitable for both residential and commercial applications. The outdoor unit (MXZ-SM60NL) is compatible with various indoor units, including the MSZ-GX series, allowing for flexible installation. The branch boxes and distribution kit ensure efficient refrigerant management, making this bundle ideal for creating a customized climate control solution.
