Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+12K+15K+15K+15K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. Featuring a powerful MXZ-SM60NL multi-zone outdoor unit, this bundle includes multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX12NL, MSZ-GX15NL) that cater to various room sizes and configurations. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure optimal refrigerant flow, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these components create a versatile and effective climate control system, capable of meeting diverse heating and cooling needs.

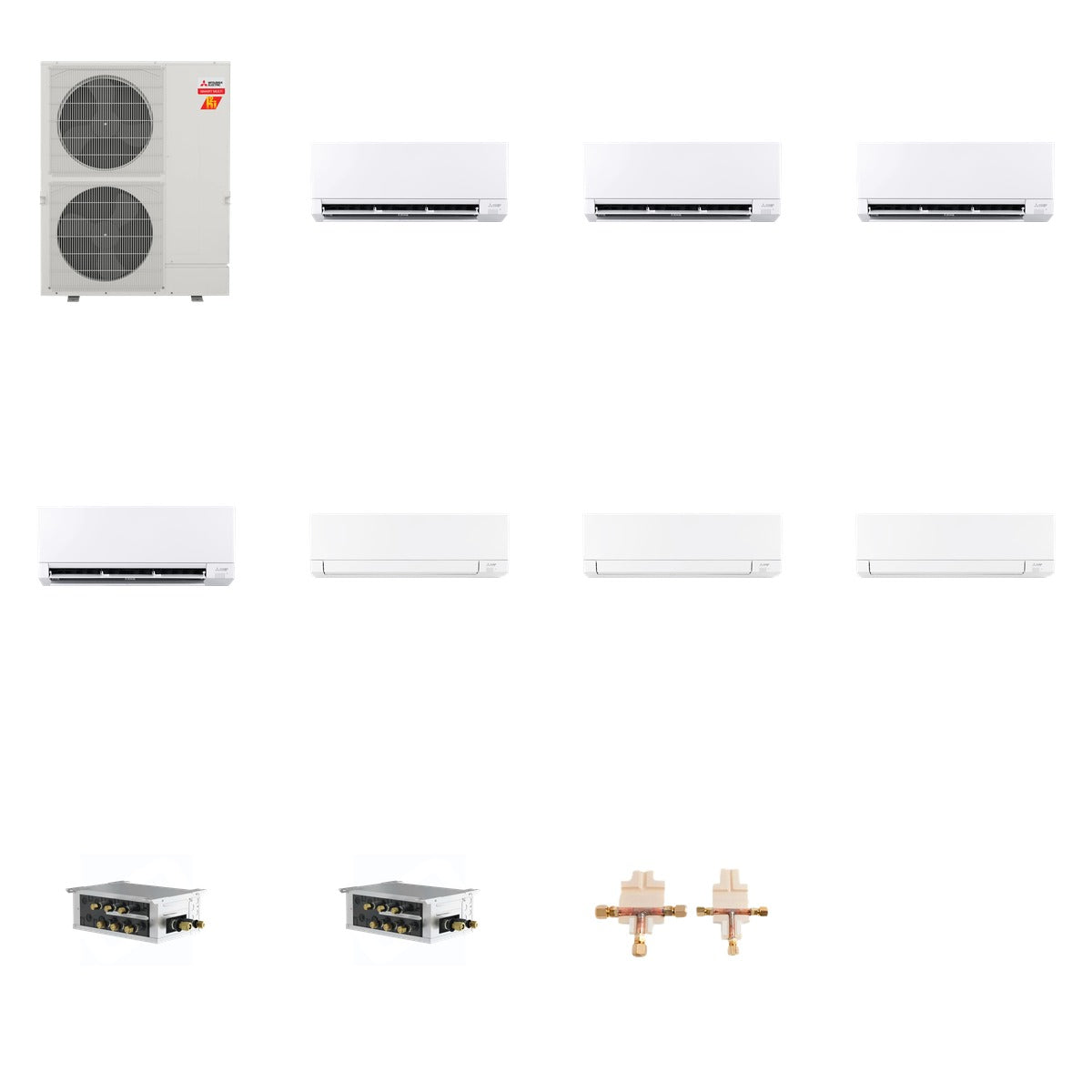

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, 208/230V
• MSZ-GX12NL: 12,000 BTU, SEER2 up to 28.4, 208/230V
• MSZ-GX15NL: 15,000 BTU, SEER2 up to 28.4, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, connects up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230V, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, allowing for customized climate control in various spaces. The outdoor unit is compatible with multiple indoor units, making it suitable for both residential and commercial HVAC systems. The branch boxes and distribution kit facilitate efficient refrigerant management, ensuring optimal performance across all connected units.
