Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle is designed for those looking to create an efficient and effective multi-zone climate control system. Featuring the Mitsubishi Electric MXZ-SM60NL outdoor unit, this bundle includes multiple wall-mounted air handlers (MSZ-FX09NL and MSZ-FX15NL) that provide flexible heating and cooling options for various room sizes. To ensure optimal refrigerant distribution, the bundle also includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a distribution kit (MSDD-50AR2-E), making it easy to connect and manage multiple indoor units. With advanced features like built-in Wi-Fi, energy-efficient operation, and superior air filtration, this bundle is perfect for both residential and commercial applications.

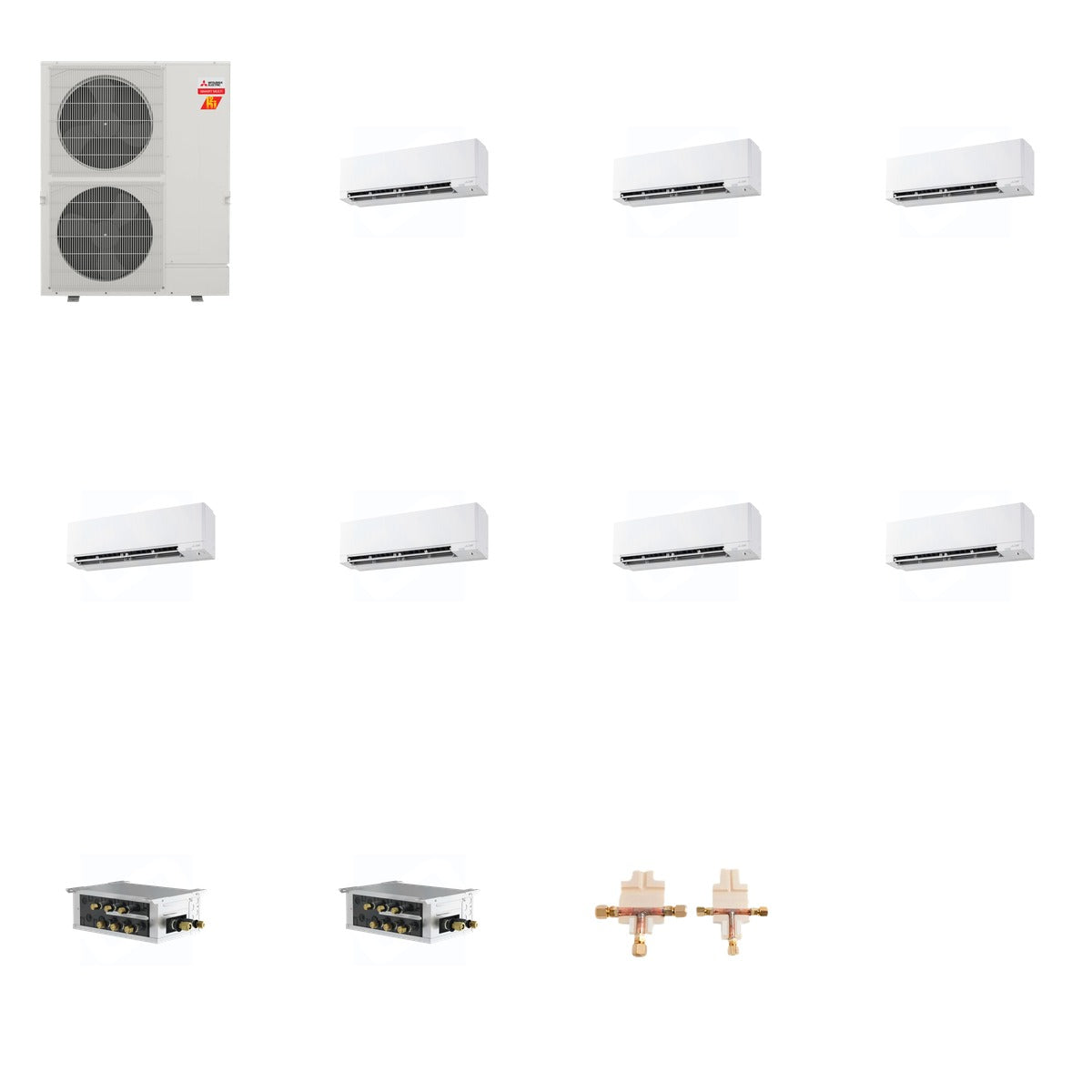

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 218.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Outdoor Unit Capacity: 60,000 BTU
• Indoor Unit Capacities: 9,000 BTU (x6), 15,000 BTU (x1)
• SEER2 Rating: Up to 23
• Heating Capacity: Up to 66,000 BTU
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H
• Indoor Unit Dimensions: 39.27 in W x 9.75 in D x 12 in H (9k BTU), 39-9/32 in W x 9-3/4 in D x 12 in H (15k BTU)
• Sound Level: As low as 20 dB(A) for indoor units

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, suitable for both residential and commercial spaces. The outdoor unit connects seamlessly with the included wall-mounted indoor units, providing efficient heating and cooling tailored to individual room requirements. The branch boxes and distribution kit ensure optimal refrigerant flow, making it compatible with various Mitsubishi Electric indoor units.
