Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+15K+18K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient and versatile multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized comfort. Accompanied by the MSZ-FX09NL, MSZ-FX15NL, and MSZ-FX18NL wall-mounted air handlers, this bundle ensures optimal climate control across various spaces, from small rooms to larger open areas. The included branch boxes, PAC-LMA50BC and PAC-LMA30BC, facilitate seamless refrigerant flow, while the MSDD-50AR2-E distribution kit enhances performance and reliability. Together, these components create a cohesive and efficient HVAC solution suitable for both residential and commercial applications.

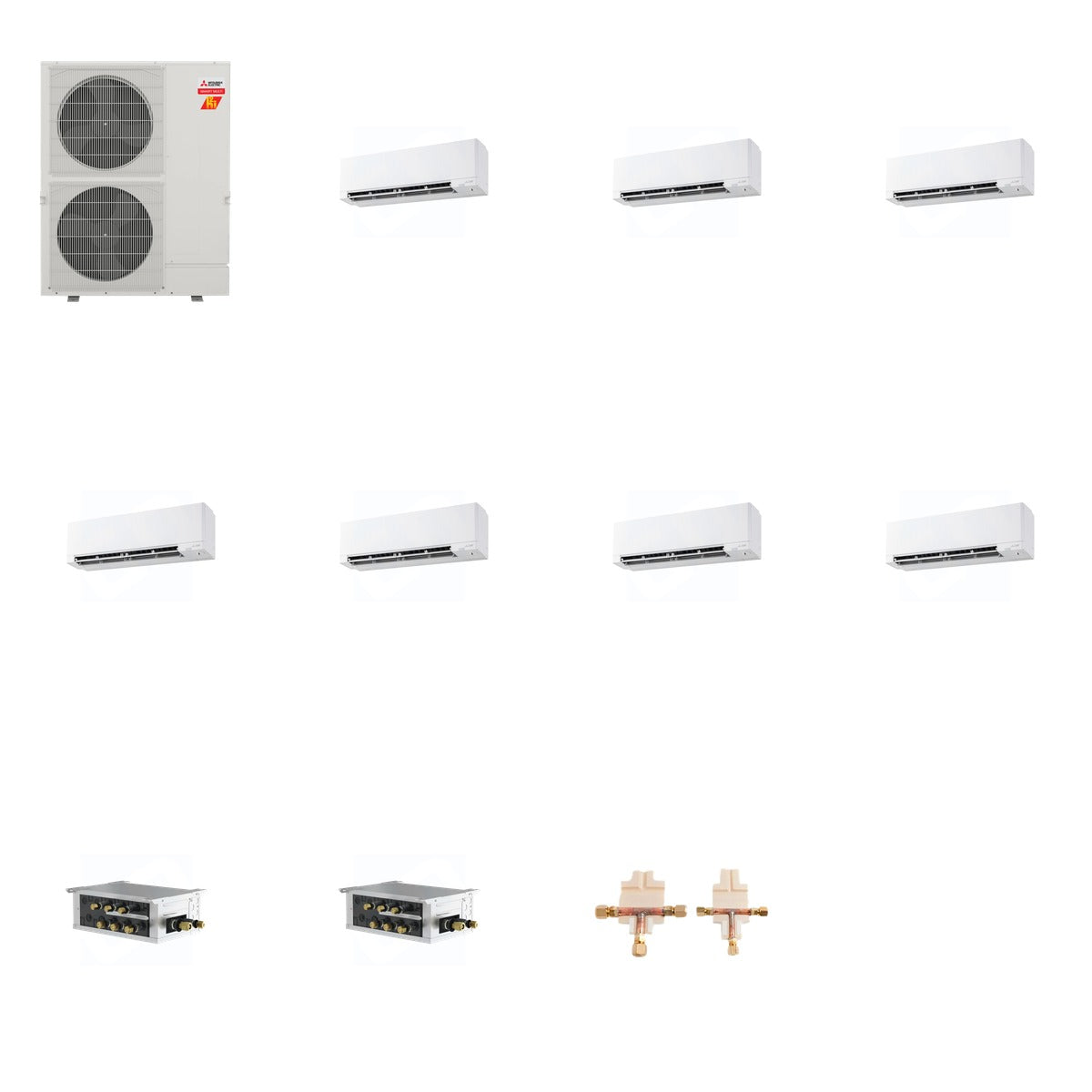

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 182 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, 5-ton capacity, SEER2 up to 23, R454B refrigerant
• MSZ-FX09NL: 9,000 BTU, 208/230V, 20-44 dB(A) sound level, Wi-Fi enabled
• MSZ-FX15NL: 15,000 BTU, 208/230V, SEER2 up to 20, whisper-quiet operation
• MSZ-FX18NL: 18,000 BTU, 208/230V, 26-46 dB(A) sound level, advanced filtration system
• PAC-LMA50BC: 5 ports, 208/230V, designed for R-454B multi-zone systems
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper

Use & Compatibility

This bundle is intended for use in both residential and commercial HVAC systems, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various indoor units, allowing for tailored climate control in different spaces. The branch boxes and distribution kit facilitate optimal refrigerant flow, ensuring consistent performance and energy efficiency.
