Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+15K+15K

Description

This comprehensive HVAC bundle is designed for both residential and commercial applications, providing an efficient multi-zone heating and cooling solution. Featuring the Mitsubishi Electric MXZ-SM60NL outdoor unit, this package allows for seamless integration with multiple indoor units, ensuring customized comfort throughout your space. The included MSZ-FX09NL and MSZ-FX15NL wall-mounted air handlers offer advanced filtration and smart technology for optimal air quality and control. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate effective refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures reliable performance across all connected units. Together, these components create a robust system that prioritizes efficiency, comfort, and convenience.

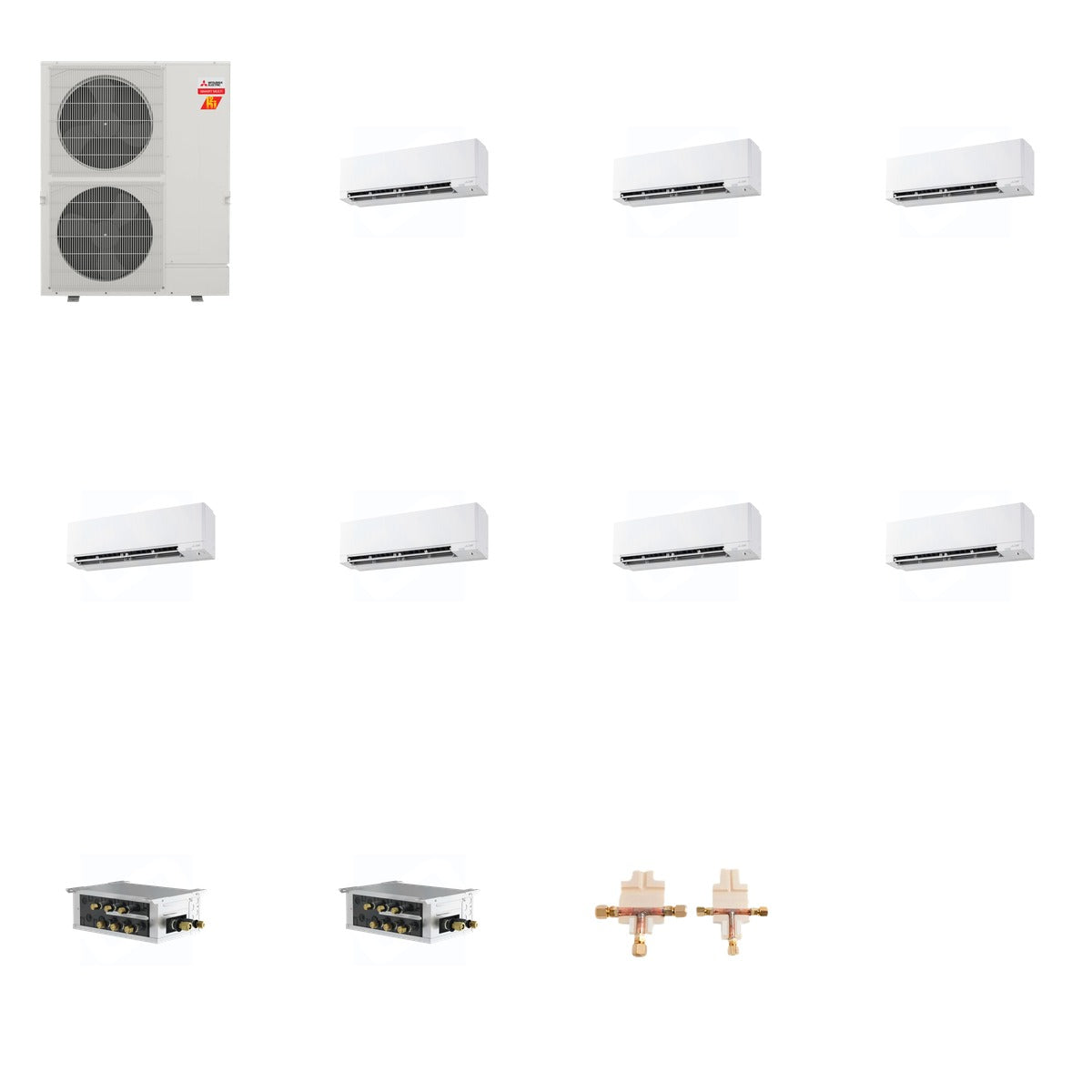

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 182 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 9,000 BTU (MSZ-FX09NL), 15,000 BTU (MSZ-FX15NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 12,000 BTU (MSZ-FX09NL), 18,000 BTU (MSZ-FX15NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL), Up to 20 (MSZ-FX15NL)
• Voltage: 208/230 Volts
• Material: Copper (MSDD-50AR2-E), Plastic (Branch Boxes)
• Dimensions: Varies by unit (see individual specifications)
• Sound Level: As low as 20 dB (MSZ-FX09NL), 49 dB (MSZ-FX15NL)

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control. Perfect for both residential and commercial applications, this system enhances comfort and energy efficiency.
