Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+12K+18K

Description

This comprehensive Mitsubishi Electric bundle is designed for both residential and commercial HVAC applications, providing a complete solution for efficient heating and cooling. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting multiple indoor units, while the MSZ-FX series wall-mounted units offer flexibility and advanced features such as built-in Wi-Fi and Triple Action Filtration. The included branch boxes ensure optimal refrigerant flow and power distribution, making this bundle ideal for creating a customized multi-zone climate control system.

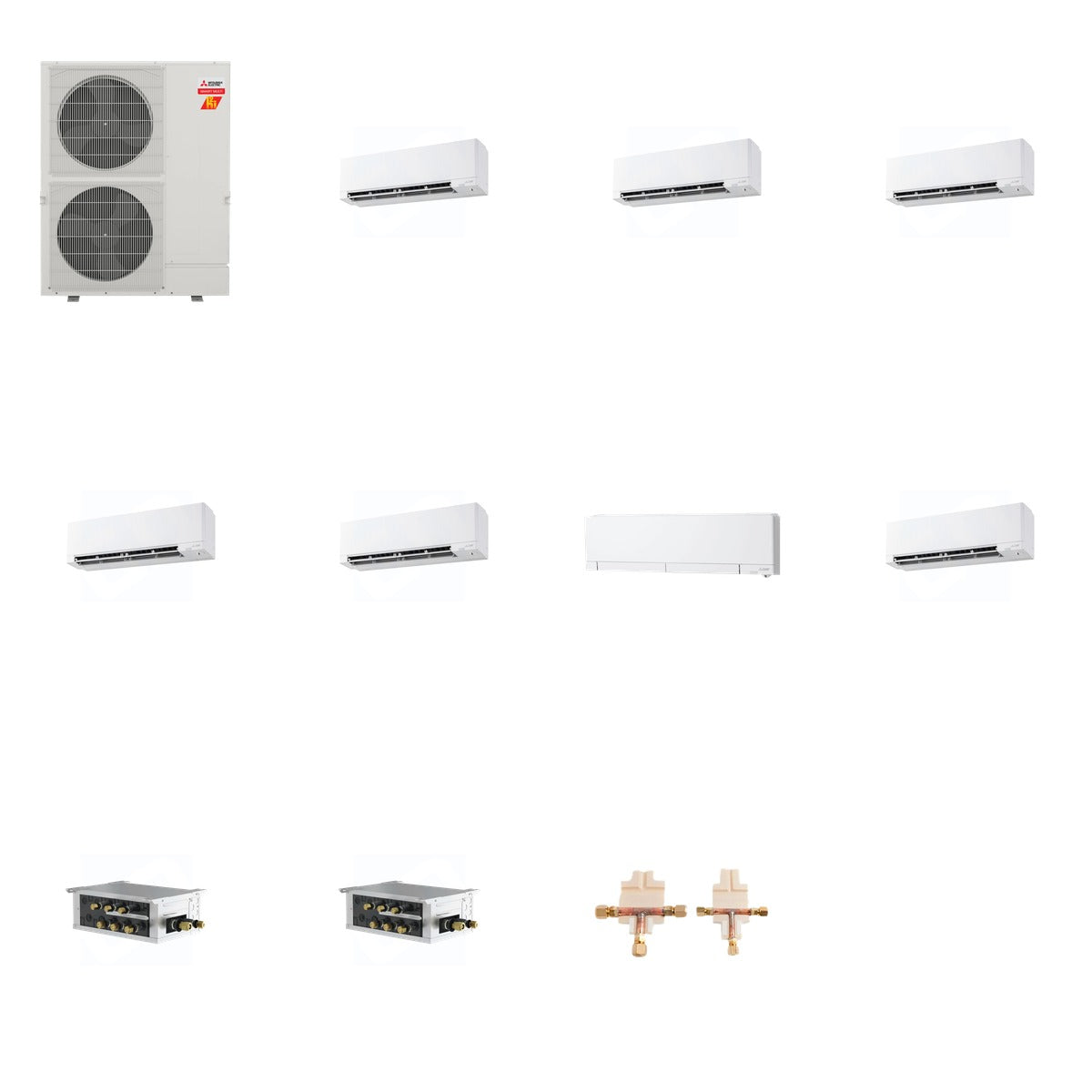

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 182 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling capacity, 66,000 BTU heating capacity, SEER2 up to 23
• MSZ-FX09NL: 9,000 BTU cooling, 12,000 BTU heating, 208/230V, quiet operation (20-44 dB)
• MSZ-FX12NL: 12,000 BTU cooling, 13,200 BTU heating, SEER2 up to 35, 208/230V
• MSZ-FX18NL: 18,000 BTU cooling, 17,000 BTU heating, SEER 25.5, 208/230V
• PAC-LMA50BC: 5 ports for indoor units, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports for indoor units, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper

Use & Compatibility

This bundle is ideal for creating a multi-zone climate control system, suitable for both residential and commercial spaces. The outdoor unit connects seamlessly to the included wall-mounted air handlers, while the branch boxes and distribution kit facilitate optimal refrigerant management, ensuring efficient heating and cooling across multiple zones.
