Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+12K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to create an efficient and customizable climate control system for both residential and commercial applications. The MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the backbone of this setup, capable of connecting to multiple indoor units for tailored heating and cooling solutions. The included MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers provide versatile options for different room sizes, ensuring optimal comfort with advanced filtration and smart technology. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance. Together, these components deliver a powerful, energy-efficient solution for modern HVAC needs.

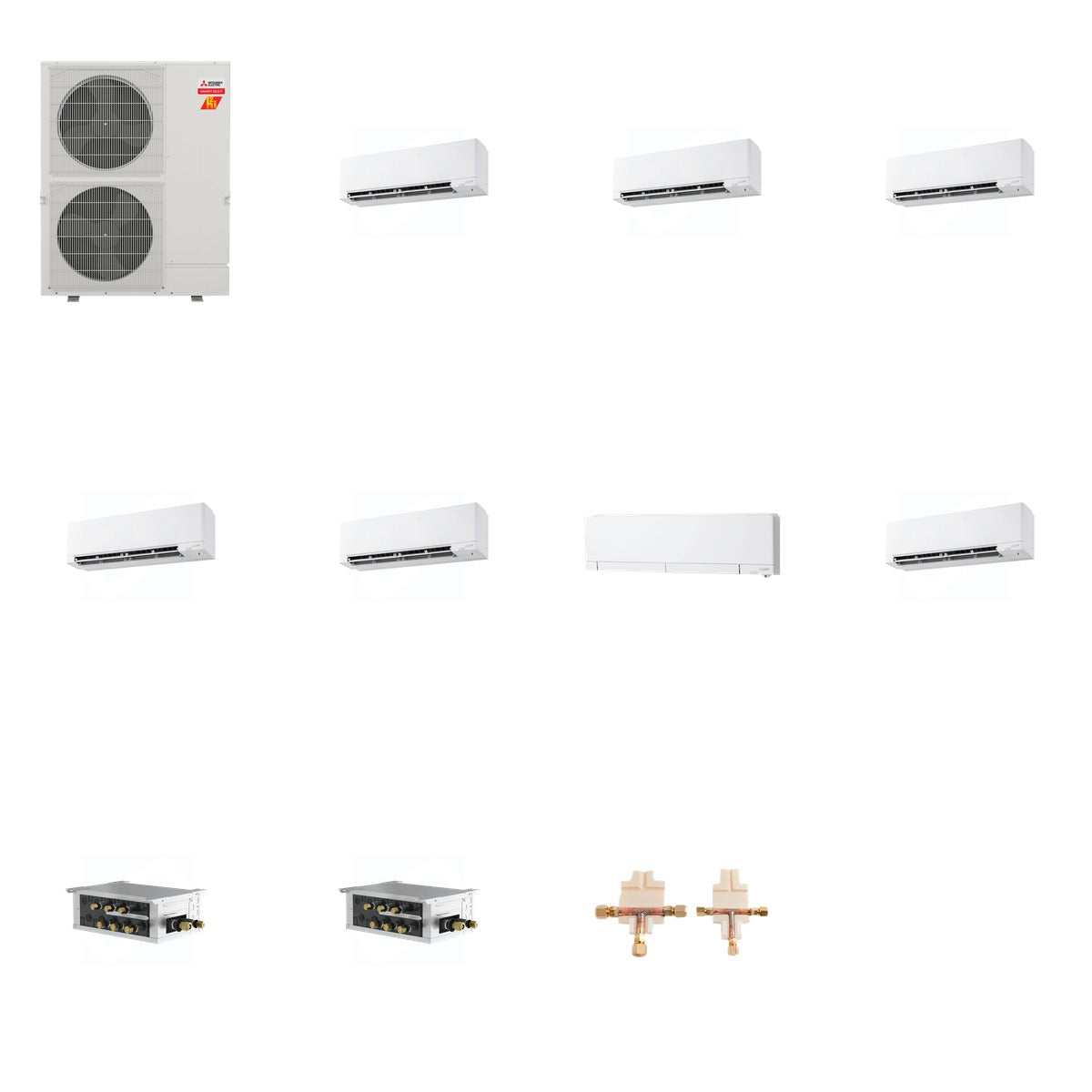

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 182 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, Minimum Sound Level 20 dB
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20
• PAC-LMA50BC: 5 Ports, 208/230V, Compatible with MXZ models
• PAC-LMA30BC: 3 Ports, 208/230V, Compatible with R454B refrigerant
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for various indoor spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, making it suitable for both residential and commercial applications. The branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple indoor units, enhancing overall system performance.
