Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+12K+12K+15K

Description

This comprehensive HVAC bundle features a selection of high-efficiency Mitsubishi Electric products designed to provide optimal heating and cooling solutions for both residential and commercial applications. The MXZ-SM60NL outdoor unit serves as a powerful multi-zone heat pump, capable of connecting to multiple indoor units for customized climate control. Accompanied by four wall-mounted air handlers (MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX15NL), this bundle ensures efficient operation and advanced air filtration. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance. Together, these components create a versatile and efficient HVAC system tailored to meet diverse heating and cooling needs.

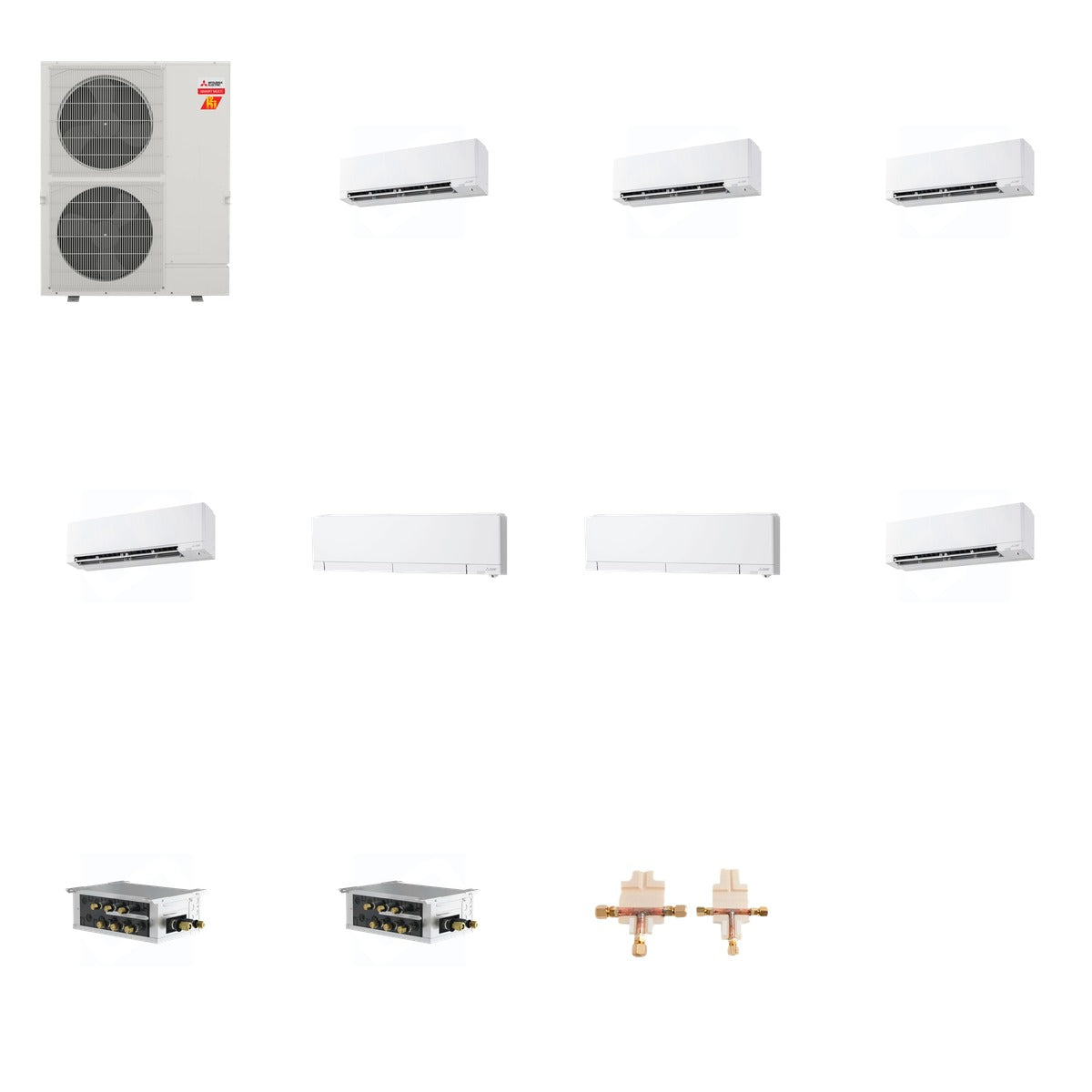

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 145.6 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, 208/230V
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20
• PAC-LMA50BC: 5 Ports, 208/230V, connects up to 5 indoor units
• PAC-LMA30BC: 3 Ports, 208/230V, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants

Use & Compatibility

This bundle is ideal for creating efficient multi-zone heating and cooling systems in residential and commercial spaces. The outdoor unit is compatible with various indoor models, ensuring flexibility in installation. The branch boxes and distribution kit enhance refrigerant management, making it suitable for a wide range of applications.
