Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+12K+12K+12K

Description

This comprehensive HVAC bundle is designed for optimal performance in multi-zone heating and cooling applications. Featuring the Mitsubishi Electric MXZ-SM60NL outdoor unit, this package includes four wall-mounted air handlers (MSZ-FX09NL and MSZ-FX12NL) that ensure efficient temperature control and air quality in various settings. The bundle also contains essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for effective refrigerant distribution, along with a high-quality branch pipe distribution kit (MSDD-50AR2-E) that guarantees a leak-free installation. Together, these components provide a complete solution for both residential and commercial environments, ensuring comfort and efficiency year-round.

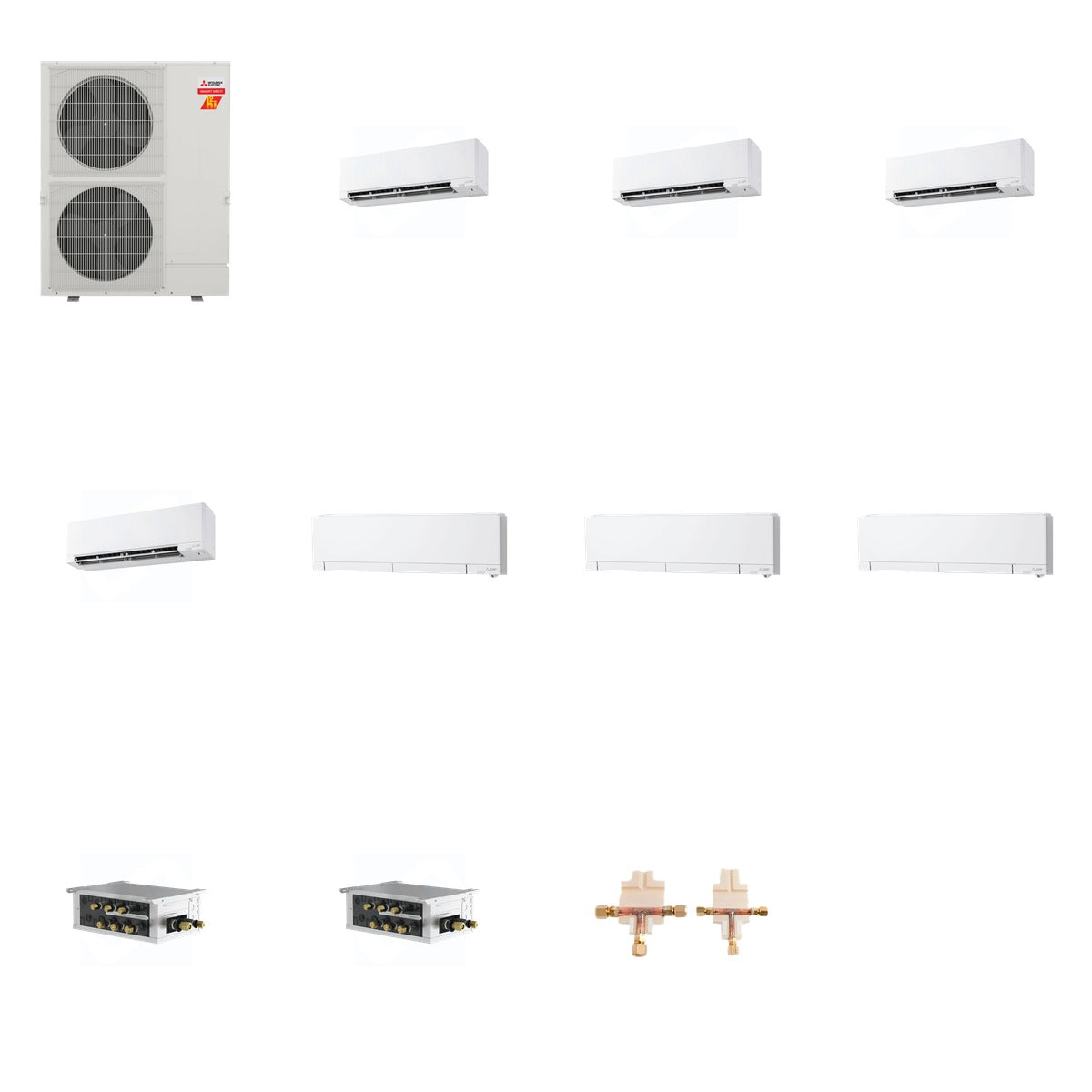

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 145.6 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Cooling BTU: 9,000 (MSZ-FX09NL), 12,000 (MSZ-FX12NL)
• Heating BTU: 12,000 (MSZ-FX09NL), 13,200 (MSZ-FX12NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (all components)
• Sound Level: As low as 20 dB (MSZ-FX09NL)
• Material: High-quality copper and thermal insulation (MSDD-50AR2-E)

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC systems, providing efficient heating and cooling for multiple zones. The outdoor unit connects seamlessly with various indoor units, while the branch boxes and distribution kit ensure balanced refrigerant flow and optimal performance. Compatible with R-454B refrigerant, this system is designed for use in diverse environments, ensuring comfort and energy efficiency.
