Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+12K+12K+12K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. It includes a powerful Mitsubishi Electric MXZ-SM60NL multi-zone outdoor unit, capable of supporting up to eight indoor units, ensuring optimal temperature control across multiple spaces. Complementing this are three wall-mounted air handlers (MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX15NL), each equipped with advanced filtration systems and built-in Wi-Fi for smart device control. Additionally, the bundle features essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a distribution kit (MSDD-50AR2-E) to facilitate seamless refrigerant flow management. Together, these components create a versatile and efficient HVAC system tailored to meet diverse climate control needs.

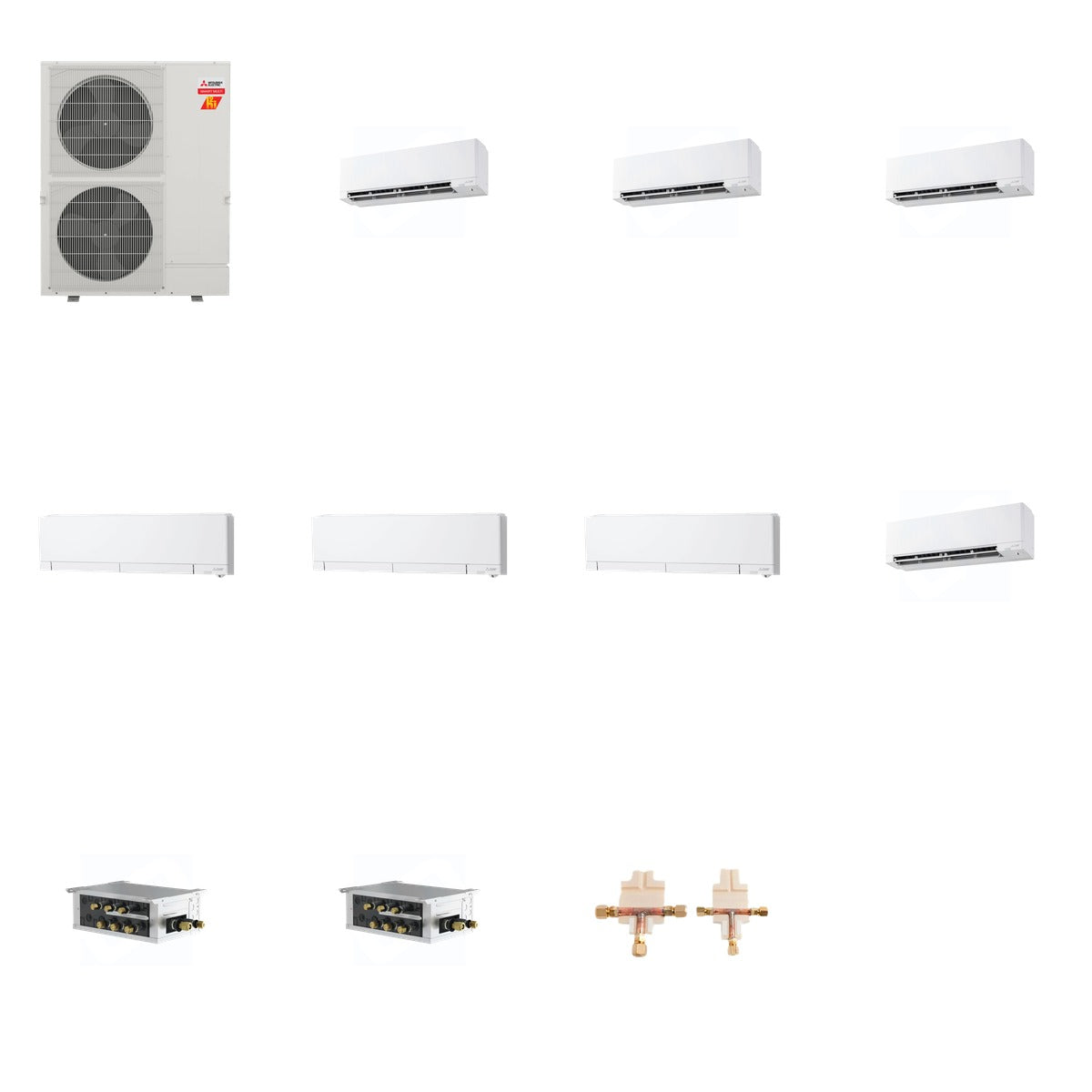

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 109.2 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, 208/230V, 20-44 dB(A)
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35, 20-44 dB(A)
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20, 49-26 dB(A)
• PAC-LMA50BC: 5 Ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 Ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, R-410A/R-454B compatible

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor units. It is compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, making it an ideal choice for both residential and commercial applications.
