Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed to work seamlessly together for optimal heating and cooling performance. The Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this outdoor unit are three wall-mounted air handlers (MSZ-FX09NL and MSZ-FX12NL) that provide efficient heating and cooling with advanced filtration and smart control features. To ensure proper refrigerant distribution, the bundle includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC) that facilitate connections to multiple indoor units, enhancing system efficiency. Additionally, the MSDD-50AR2-E branch pipe kit ensures balanced refrigerant flow, making this bundle ideal for both residential and commercial applications.

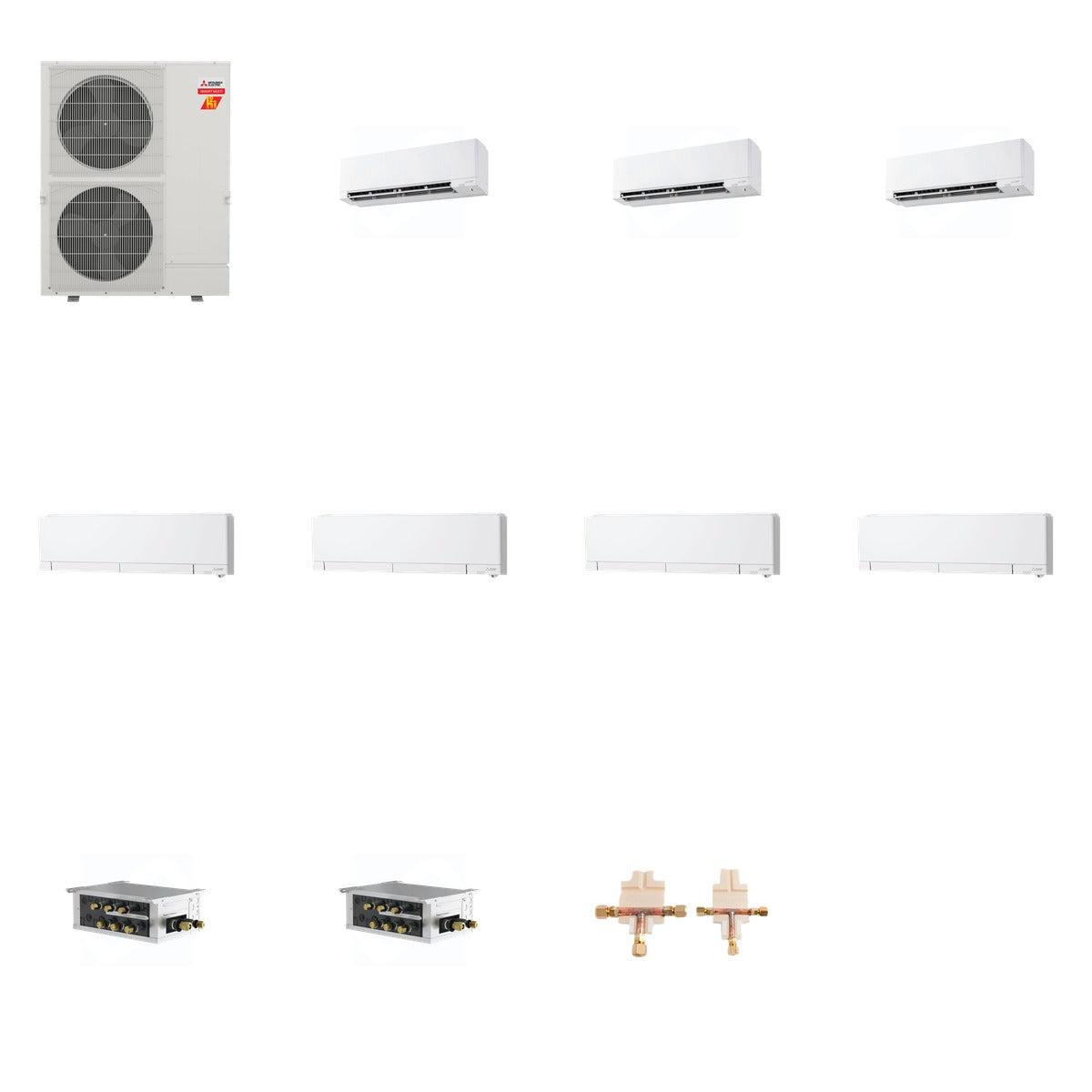

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 109.2 lb + Mitsubishi 145.6 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, Voltage 208/230V
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35
• PAC-LMA50BC: 5 Ports, Voltage 208/230V
• PAC-LMA30BC: 3 Ports, Voltage 208/230V
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, making it suitable for both residential and commercial applications. The outdoor unit connects to various indoor units, allowing for customized heating and cooling solutions. The branch boxes and distribution kit ensure efficient refrigerant flow, enhancing system performance and comfort.
