Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+12K+12K+12K+12K+12K

Description

This comprehensive Mitsubishi Electric bundle is designed for efficient heating and cooling in both residential and commercial environments. The MXZ-SM60NL multi-zone heat pump outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units, including the MSZ-FX09NL and MSZ-FX12NL wall-mounted air handlers. With advanced filtration and smart technology, these units provide optimal comfort while ensuring energy efficiency. Additionally, the PAC-LMA30BC and PAC-LMA50BC branch boxes facilitate seamless refrigerant distribution, enhancing system performance. The MSDD-50AR2-E branch pipe distribution kit further optimizes refrigerant flow, making this bundle a complete solution for your HVAC needs.

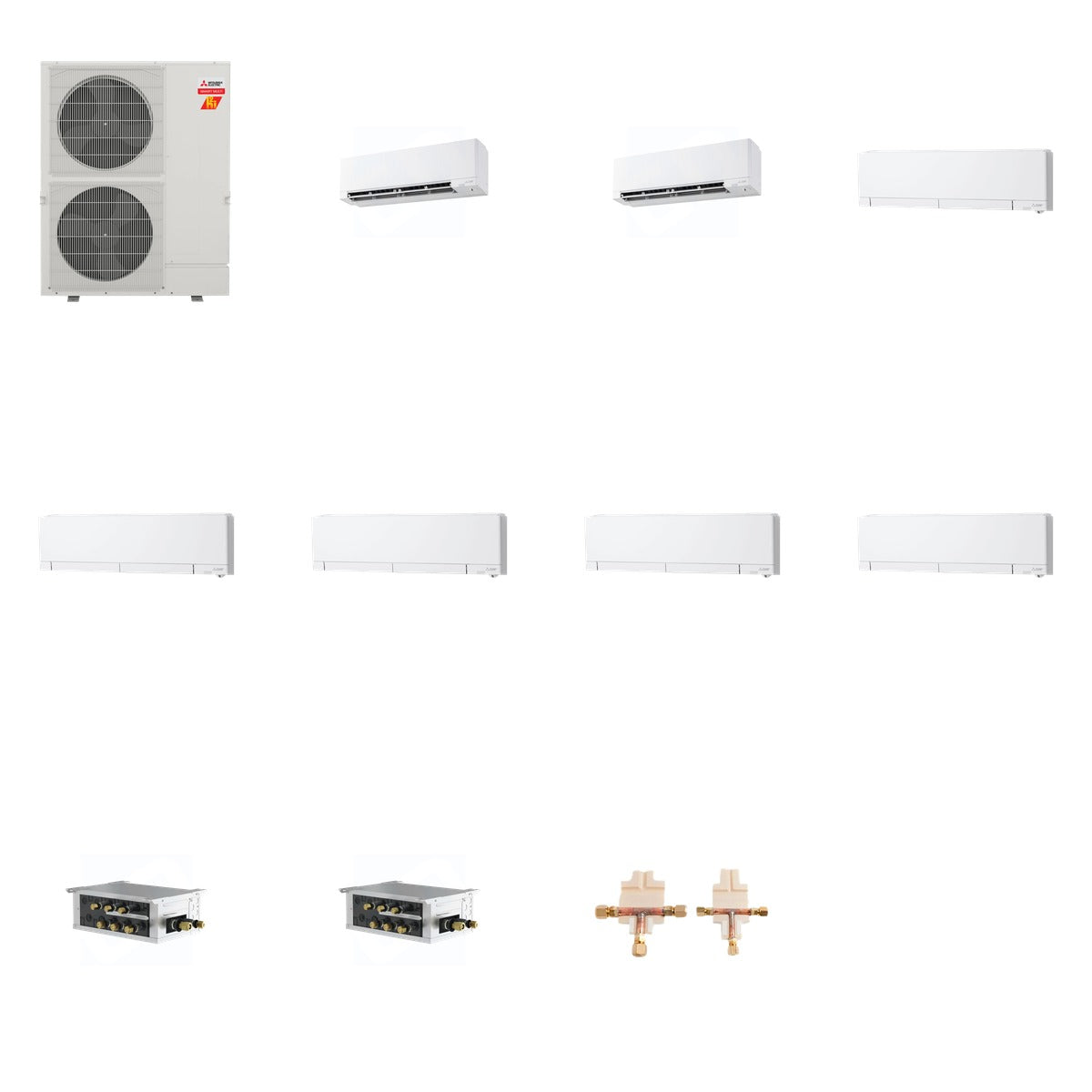

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 494.9 lb (Mitsubishi 225 lb + Mitsubishi 72.8 lb + Mitsubishi 182 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, Minimum Sound Level 20 dB
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35
• PAC-LMA50BC: 5 Ports, Voltage 208/230V, Suction Connection Size 5/8 Inch
• PAC-LMA30BC: 3 Ports, Voltage 208/230V, Dimensions 17.75 x 11.0625 x 6.75 inches
• MSDD-50AR2-E: Flare Connection, Compatible with R-410A/R-454B, Oxygen-Free Copper

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling solutions for various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple zones.
