Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to create an efficient multi-zone heating and cooling system. The centerpiece is the MXZ-SM60NL outdoor heat pump, capable of connecting to multiple indoor units for customized climate control. Complementing this are the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL wall-mounted air handlers, which provide flexible heating and cooling options for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. Together, these components deliver a reliable and energy-efficient solution for both residential and commercial applications.

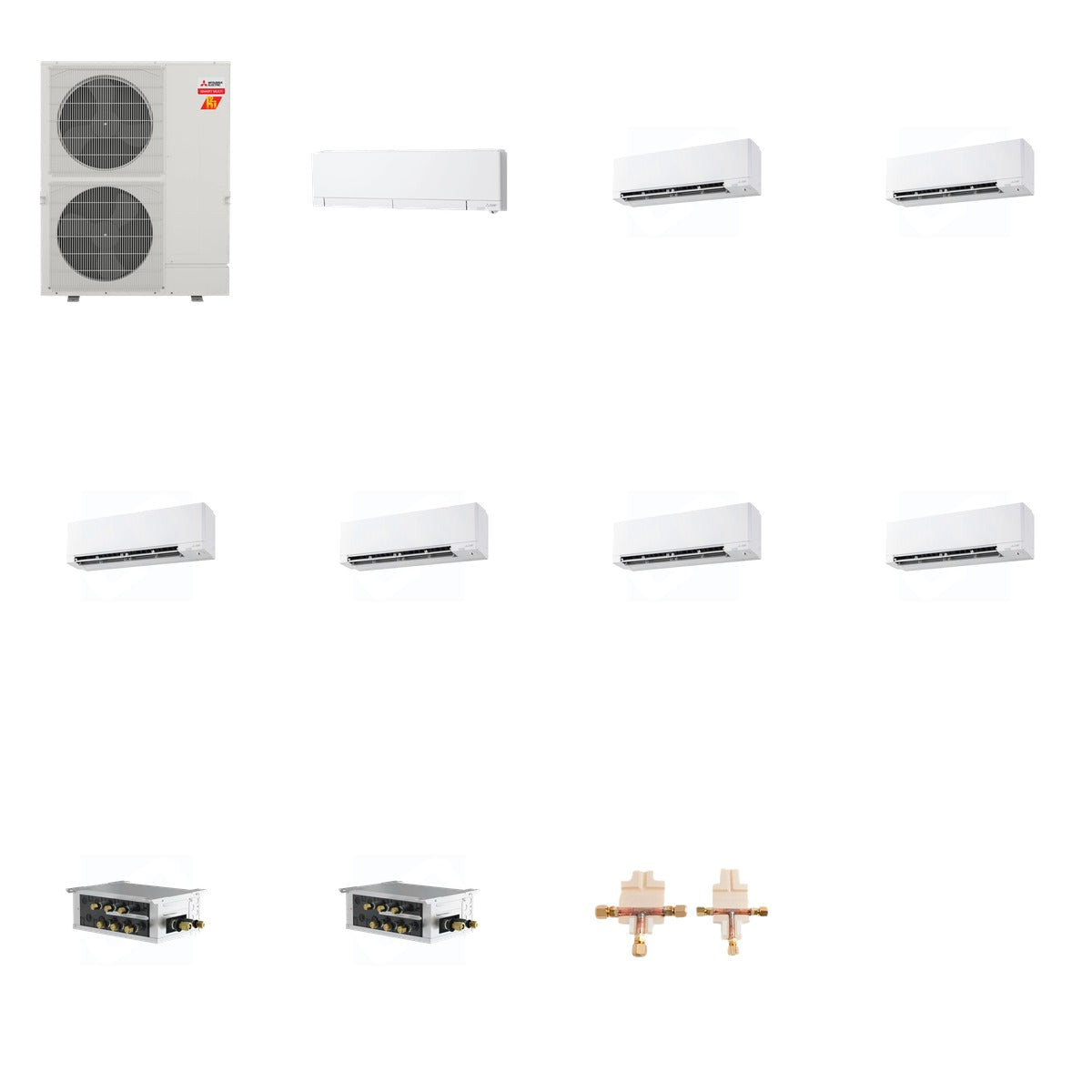

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 487.5 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 182 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, oxygen-free copper construction

Use & Compatibility

This bundle is designed for residential and commercial HVAC systems, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with M-Series and CITY MULTI indoor units, while the included branch boxes and distribution kit ensure optimal refrigerant flow for enhanced system performance.
