Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+9K+15K+15K

Description

This comprehensive bundle features essential components designed to create an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering up to 60,000 BTU of cooling and 66,000 BTU of heating capacity. Paired with four wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL), this setup ensures optimal climate control across various spaces. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components provide a reliable, high-performance solution for both residential and commercial applications.

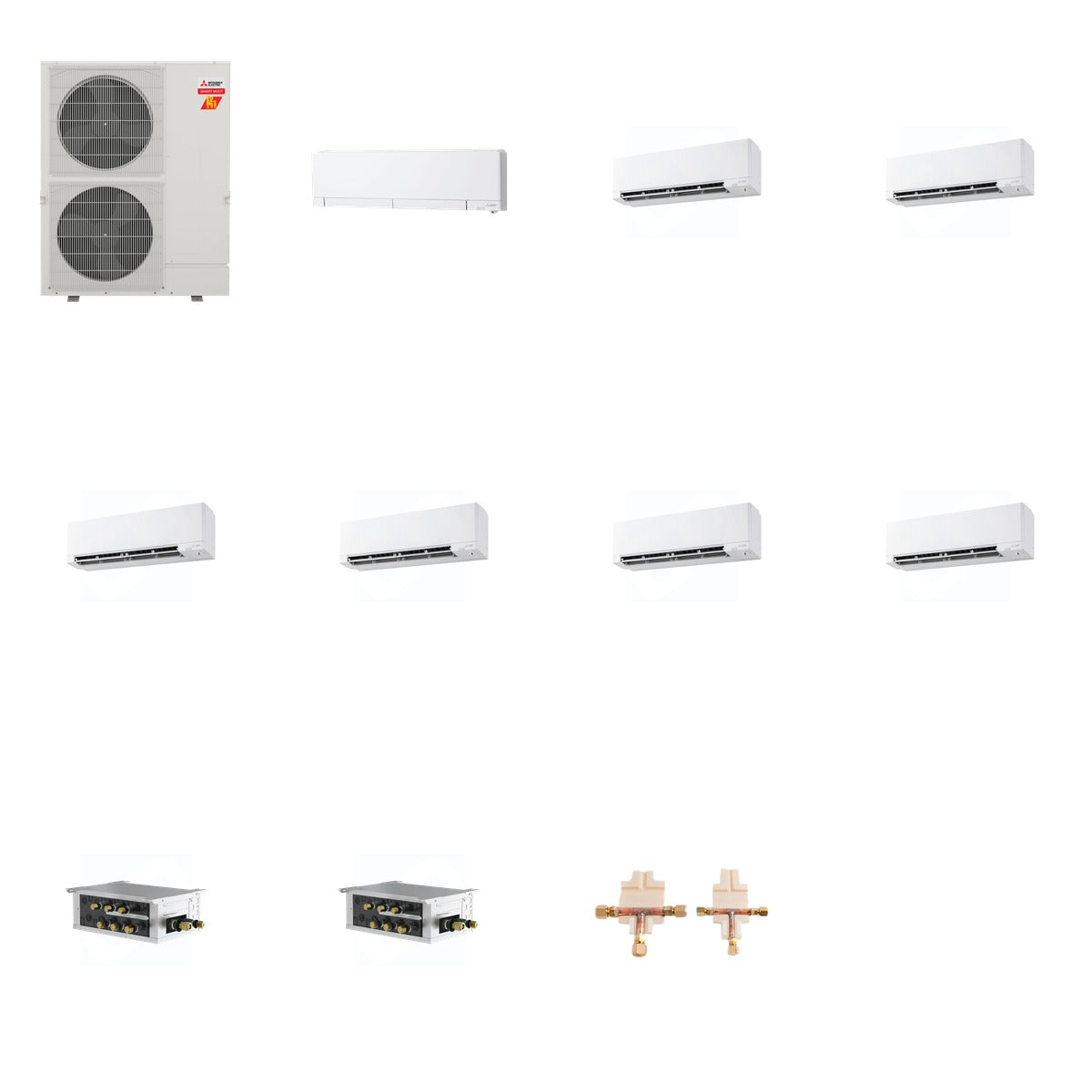

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 487.5 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 145.6 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU
• Heating Capacity: Up to 66,000 BTU
• SEER2 Rating: Up to 35
• Voltage: 208/230 Volts
• Refrigerant Type: R-454B
• Dimensions of Outdoor Unit: 41-11/32" W x 13" D x 52-11/16" H
• Sound Level (Outdoor Unit): As low as 58 dB(A)
• Indoor Unit Dimensions: 39.27" W x 9.75" D x 12" H
• Weight of Indoor Units: 36.4 lbs each

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple indoor units.
