Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K+9K+15K+15K+15K

Description

This comprehensive HVAC bundle features a selection of high-quality Mitsubishi Electric products designed for efficient heating and cooling in residential and commercial settings. The centerpiece is the MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, which supports up to eight indoor units, making it ideal for multi-zone applications. Complementing this unit are three wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL) that deliver varying capacities to suit different room sizes and preferences. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant distribution, along with the MSDD-50AR2-E branch pipe distribution kit for seamless installation. Together, these components create a powerful and flexible climate control system that ensures comfort and efficiency.

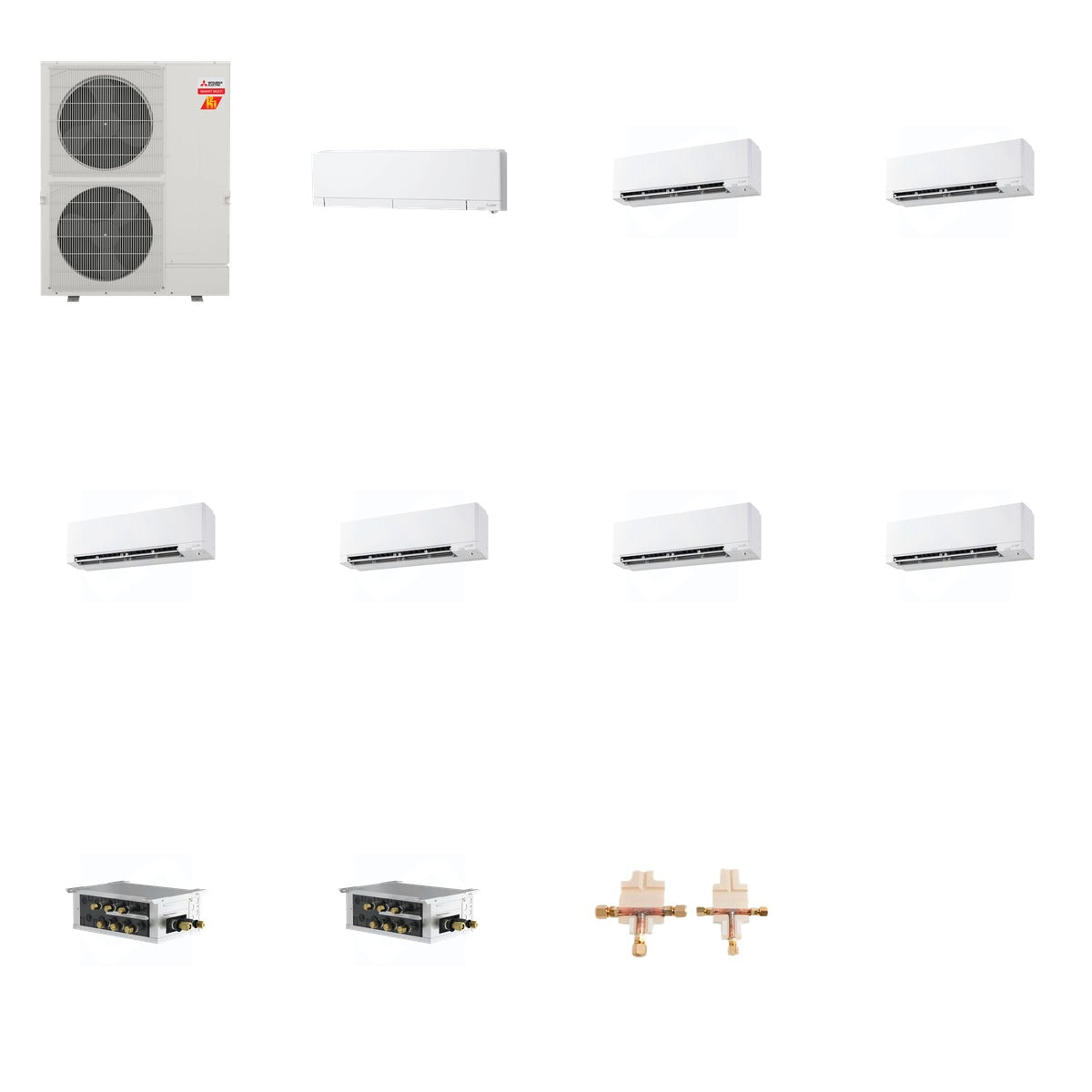

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 487.5 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 109.2 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, SEER2 up to 35, 208/230V
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for various room sizes. The outdoor unit connects seamlessly with multiple indoor air handlers, making it suitable for both residential and commercial applications. The included branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across all connected units.
