Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+12K+12K+12K+12K+15K

Description

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, paired with four advanced wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL, and MSZ-FX15NL) to provide efficient heating and cooling across multiple zones. The inclusion of branch boxes (PAC-LMA30BC and PAC-LMA50BC) and a distribution kit (MSDD-50AR2-E) ensures optimal refrigerant flow and system performance. Designed for both residential and commercial applications, this bundle offers flexibility, energy efficiency, and advanced features such as Wi-Fi control and quiet operation, making it an ideal solution for diverse indoor climates.

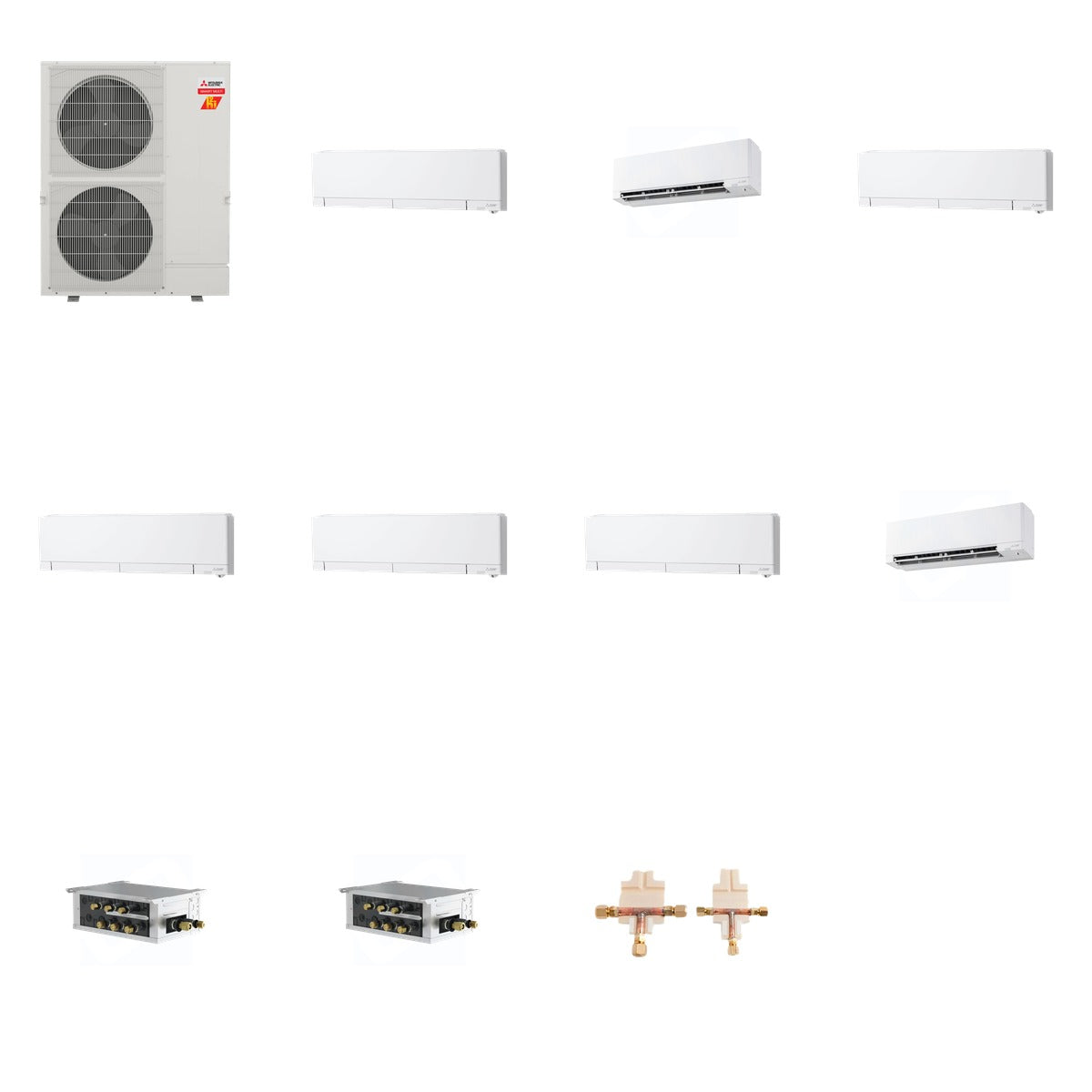

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 487.5 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 36.4 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mount Units: 6k BTU, 9k BTU, 12k BTU, 15k BTU
• SEER2 Ratings: Up to 35 (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL, MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Sound Level: As low as 20 dB(A)
• Dimensions: Varies by unit; compact design for easy installation

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various indoor units, allowing for customized climate control. The included branch boxes and distribution kit ensure balanced refrigerant flow, making it suitable for diverse applications and enhancing overall system performance.
