Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+12K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units, while the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL wall-mounted air handlers provide tailored comfort for various spaces. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, ensuring balanced performance across all connected units. The MSDD-50AR2-E branch pipe distribution kit further enhances system efficiency, making this bundle perfect for both residential and commercial applications.

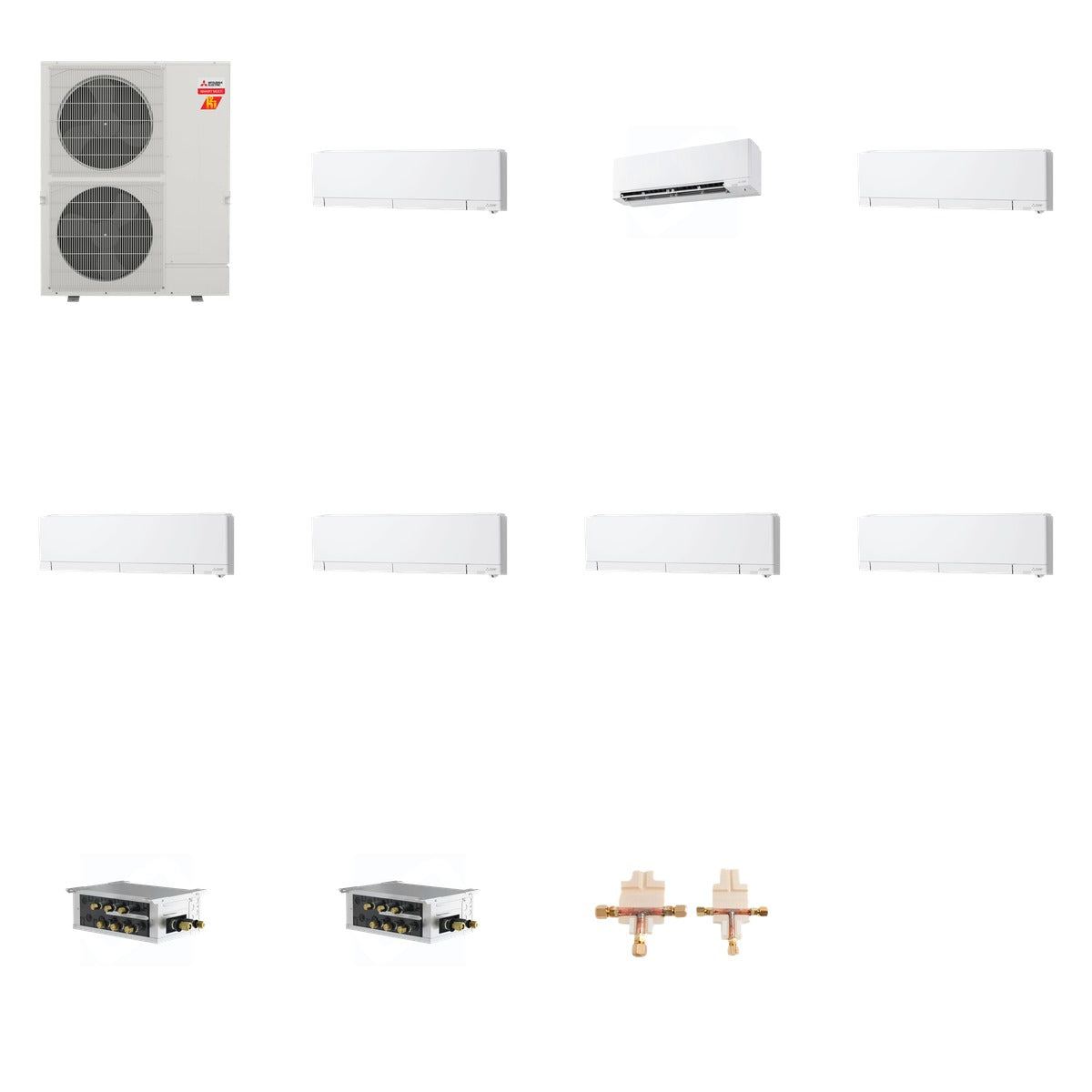

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 487.5 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 36.4 lb + Mitsubishi 182 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 8 Zones (MXZ-SM60NL)
• Voltage: 208/230 Volts (All units)
• SEER2: Up to 35 (MSZ-FX12NL)
• Sound Level: As low as 20 dB (MSZ-FX06NL)
• Refrigerant Type: R-454B (All units)
• Dimensions: 41-11/32 in W x 13 in D x 52-11/16 in H (MXZ-SM60NL)

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems, providing efficient heating and cooling solutions. The outdoor unit is compatible with multiple indoor units, allowing for customized climate control in various zones. The included branch boxes and distribution kit ensure optimal refrigerant flow, making it suitable for a wide range of applications.
