Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle includes everything you need for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, supporting up to eight indoor units, while the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL wall-mounted air handlers provide versatile comfort options for various room sizes. The included PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant flow and power distribution, making installation seamless. With advanced features like built-in Wi-Fi and energy-efficient operation, this bundle is designed for both residential and commercial applications, ensuring reliable performance and comfort year-round.

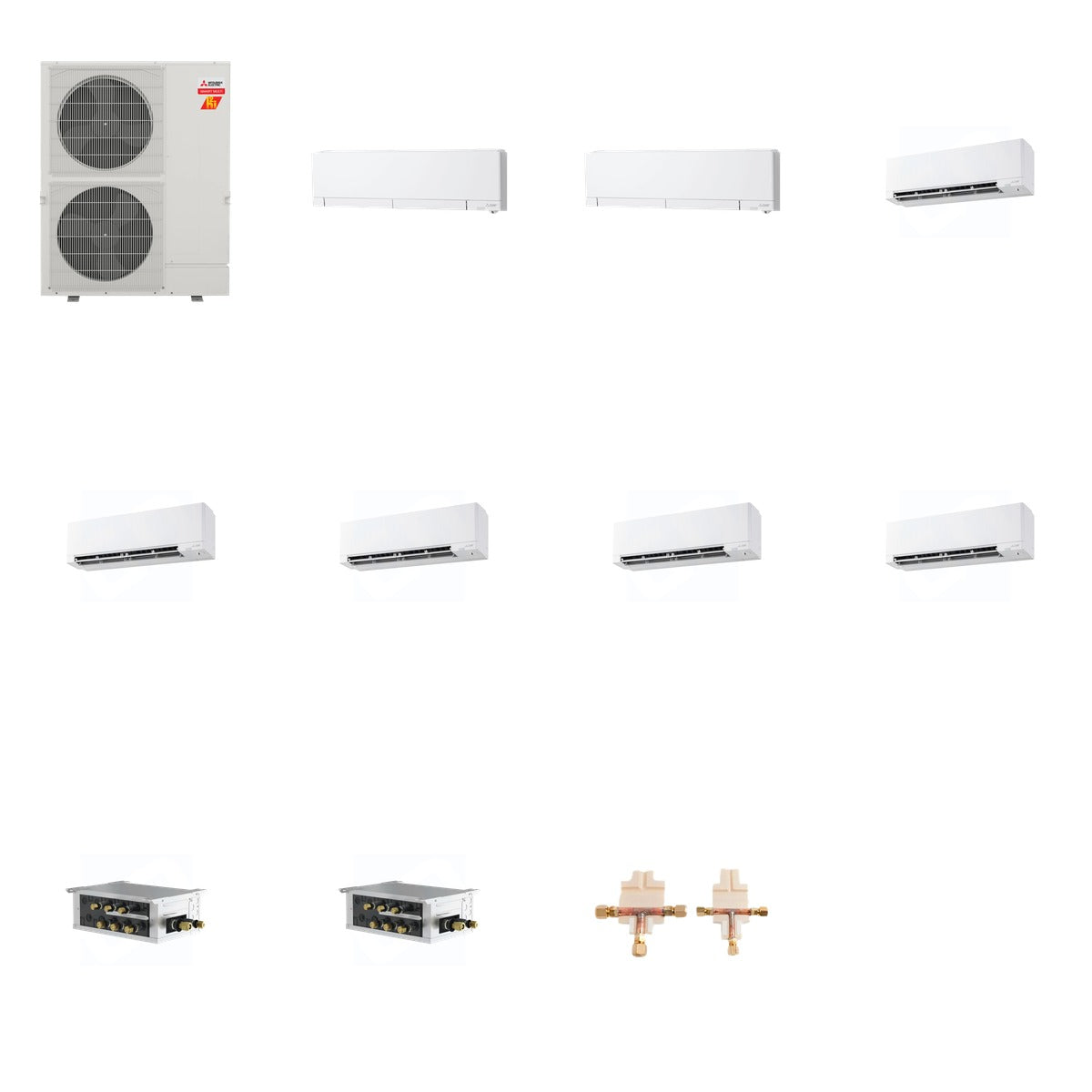

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, 5-ton capacity, SEER2 up to 23, dimensions 41-11/32" W x 13" D x 52-11/16" H
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, dimensions 39.27" W x 9.75" D x 12" H
• MSZ-FX09NL: 9,000 BTU, dimensions 39.27" W x 9.75" D x 12" H
• MSZ-FX15NL: 15,000 BTU, dimensions 39-9/32" W x 9-3/4" D x 12" H
• PAC-LMA50BC: 5 ports, 208/230V, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• PAC-LMA30BC: 3 ports, 208/230V, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, dimensions 11.5" L x 6.2" W x 4.8" H

Use & Compatibility

This bundle is designed for use in residential and commercial HVAC systems, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with various indoor units, making it ideal for customized installations in diverse settings.
