Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+15K+15K

Description

This comprehensive HVAC bundle features essential components designed for optimal performance in multi-zone heating and cooling systems. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this unit are the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL wall-mounted air handlers, each offering advanced filtration and quiet operation. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate efficient refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures seamless installation and performance. Together, these products create a versatile and efficient HVAC solution suitable for both residential and commercial applications.

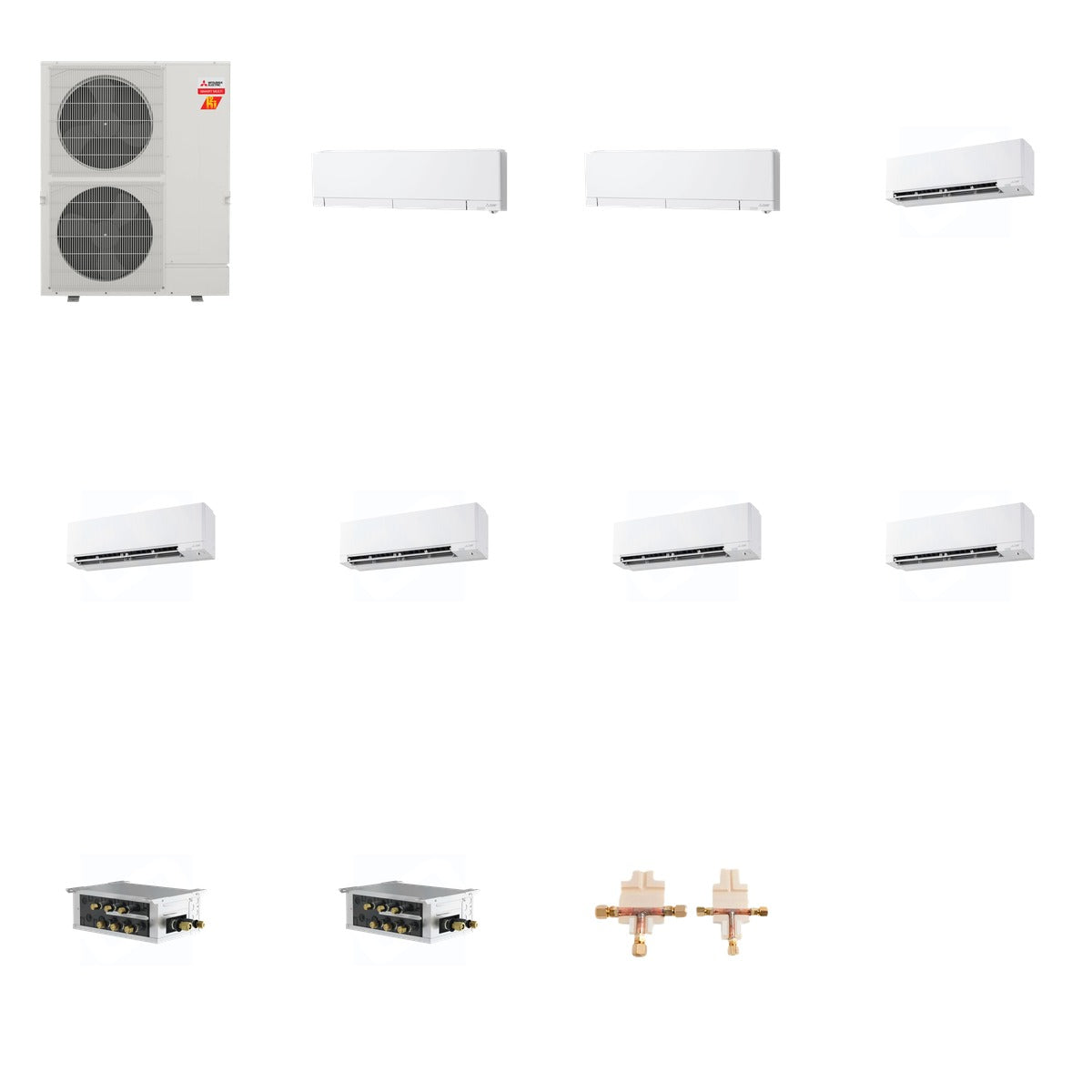

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 109.2 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton capacity
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, 208/230V
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V
• PAC-LMA30BC: 3 ports, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, ensuring seamless integration and optimal performance across various applications.
