Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+12K+12K+12K

Description

This comprehensive bundle features essential components for creating a highly efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized comfort. The included MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL wall-mounted air handlers provide versatile solutions for various room sizes, ensuring optimal climate control. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these products create a cohesive system designed for both residential and commercial applications, delivering reliable performance and comfort.

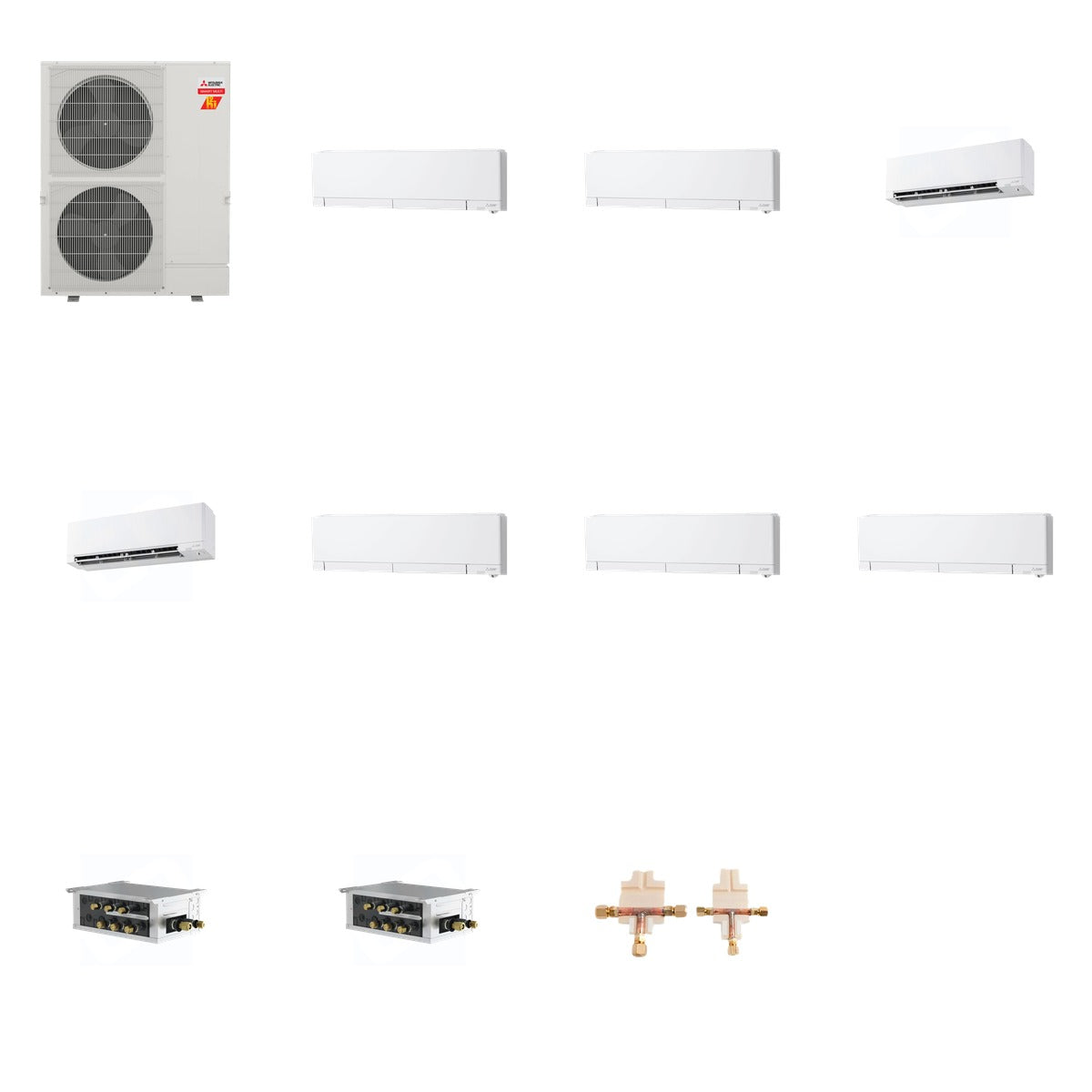

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 72.8 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 2 x 6,000 BTU, 2 x 9,000 BTU, 3 x 12,000 BTU
• SEER2: Up to 35 (MSZ-FX12NL)
• Voltage: 208/230 Volts
• Refrigerant Type: R-454B
• Dimensions (MXZ-SM60NL): 41-11/32 in W x 13 in D x 52-11/16 in H
• Sound Level: As low as 20 dB (MSZ-FX06NL)
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial applications. The outdoor unit connects seamlessly with the included indoor air handlers, providing efficient climate control across various spaces. The branch boxes and distribution kit ensure optimal refrigerant flow, enhancing system performance and reliability.
