Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to provide efficient heating and cooling for both residential and commercial applications. The centerpiece of this bundle is the MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, which supports up to eight indoor units, allowing for customized climate control across multiple zones. Complementing this outdoor unit are four wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL) that offer advanced filtration and smart control features, ensuring optimal comfort and air quality. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for effective refrigerant distribution, along with a branch pipe distribution kit (MSDD-50AR2-E) to simplify installation. Together, these components create a powerful and versatile HVAC system tailored to meet diverse heating and cooling needs.

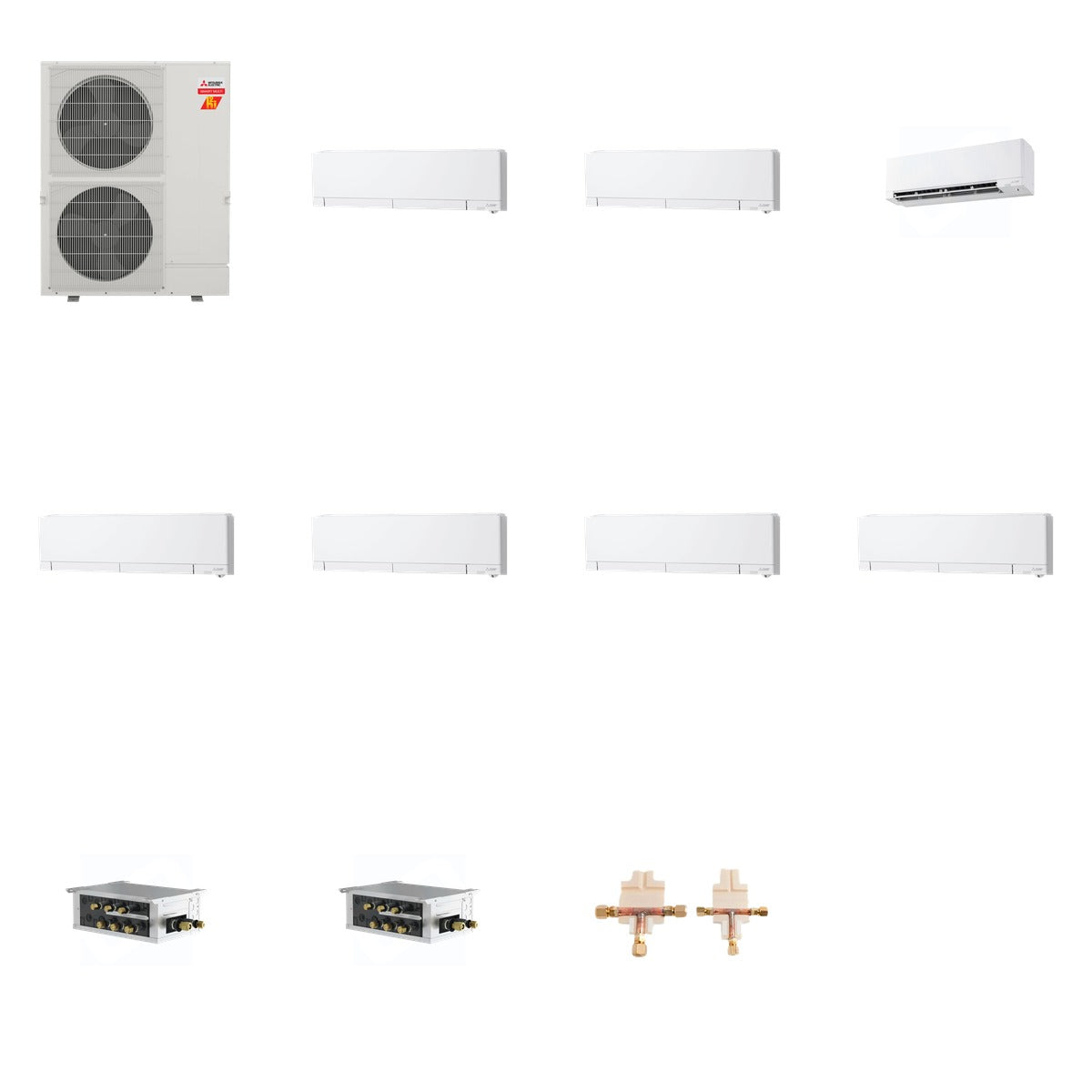

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb + Mitsubishi 145.6 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling capacity, 66,000 BTU heating capacity, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU cooling, 9,000 BTU heating, SEER2 up to 35, 208/230V
• MSZ-FX09NL: 9,000 BTU cooling, 12,000 BTU heating, SEER2 up to 35, 208/230V
• MSZ-FX12NL: 12,000 BTU cooling, 13,200 BTU heating, SEER2 up to 35, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ units
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This HVAC bundle is designed for use in multi-zone heating and cooling systems, making it ideal for both residential and commercial environments. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, providing flexibility and efficiency in climate control. The advanced features of the air handlers, including smart control and enhanced filtration, ensure a comfortable indoor environment while optimizing energy use.
